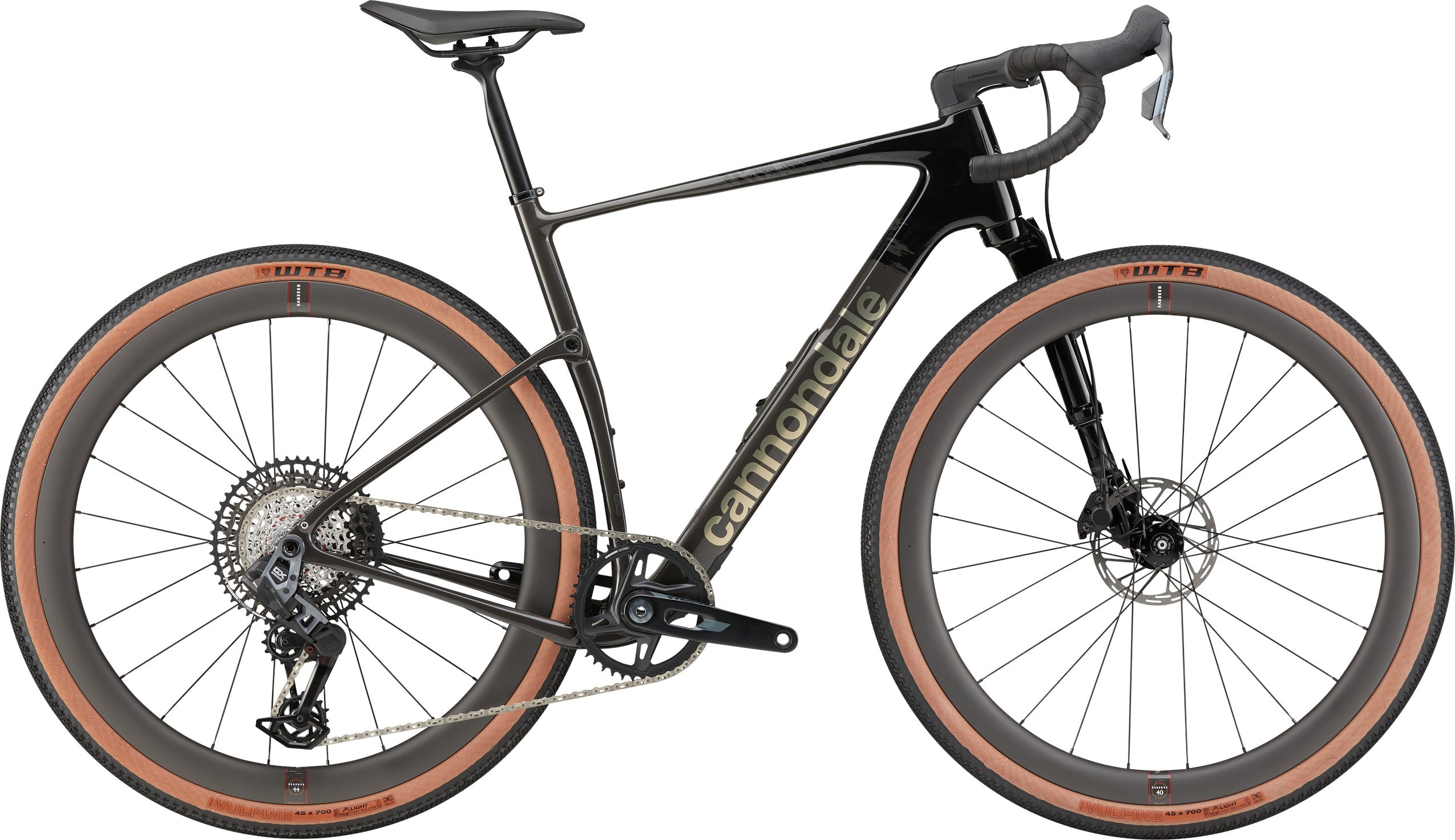

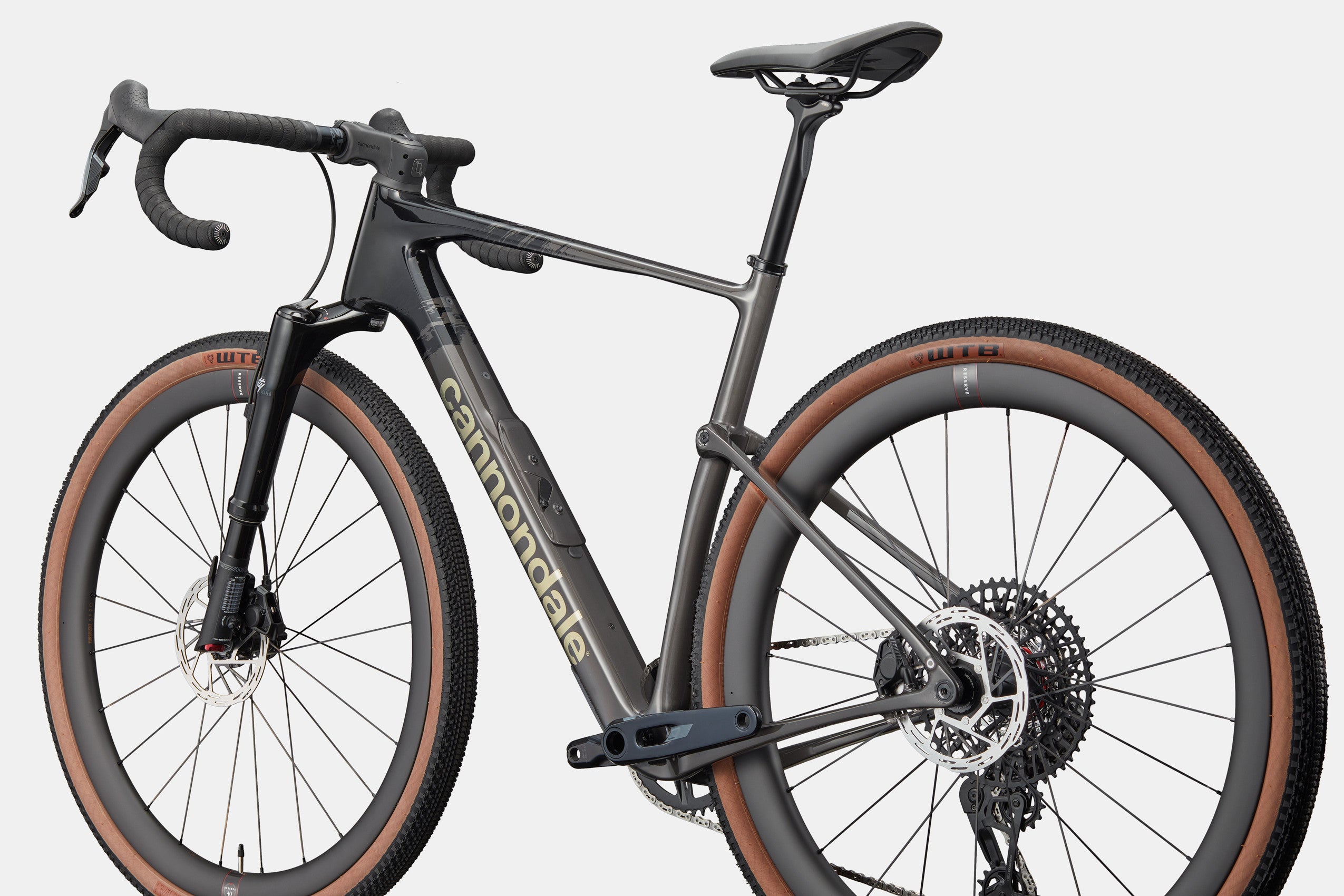

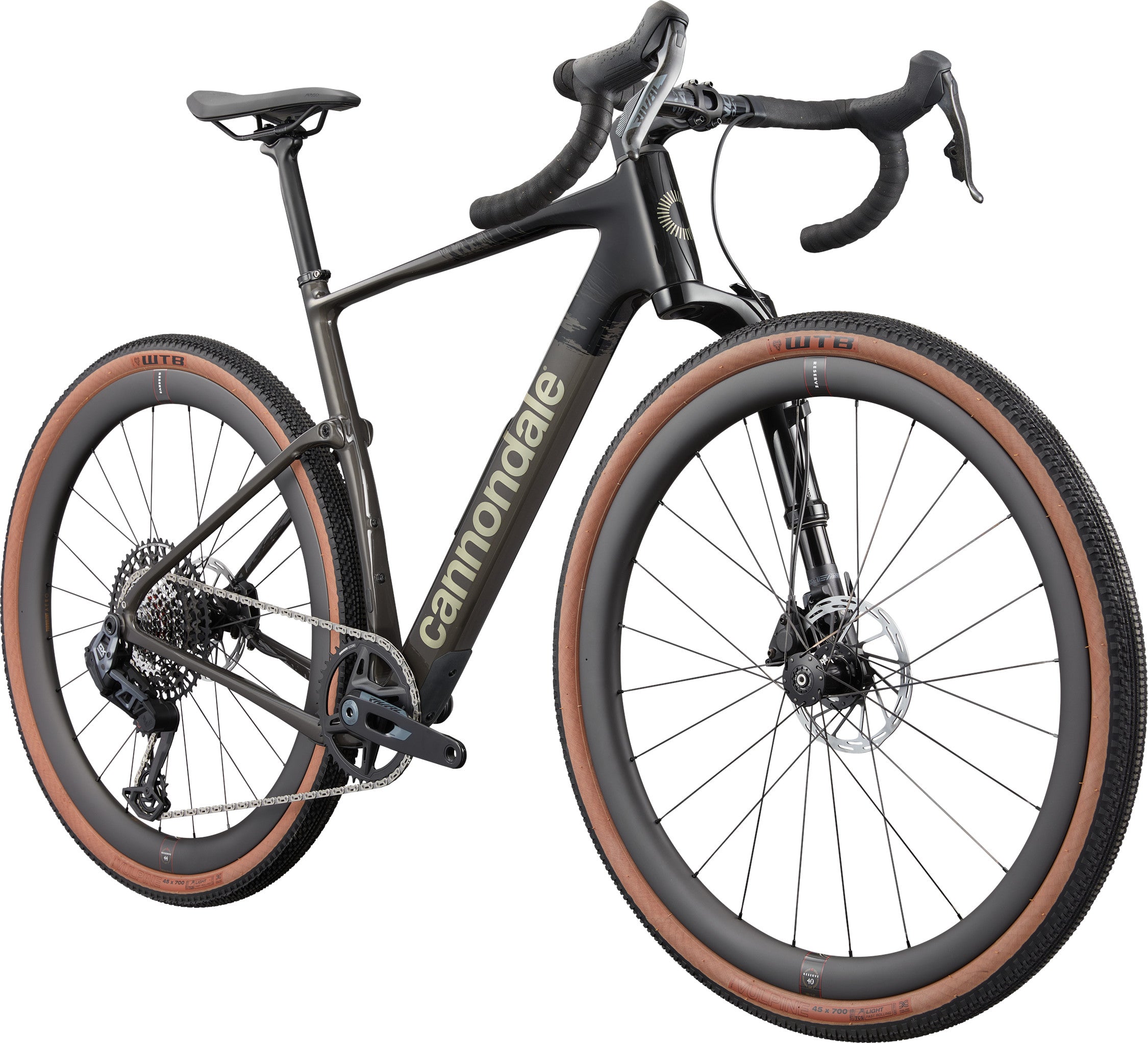

Cannondale Topstone Carbon 1 Lefty AXS 2025

R 149,995.00
Size
Size Chart





Cannondale Bicycle Sizing Guide

Bike Size Rider Height Range
XSmall 148 - 155 cm
Small 154 - 165 cm
Medium 162 - 175 cm
Large 172 - 182 cm
XLarge 180 - 195 cm

Note: The provided sizing chart is a general guideline. Please consult with a professional bike fitter for the best fit.
×

Product Enquiry

Details

  • Platform
    Topstone Carbon
  • Model Name
    Topstone Carbon 1 Lefty AXS
  • Model Code
    C1511GU

Frameset

  • Frame

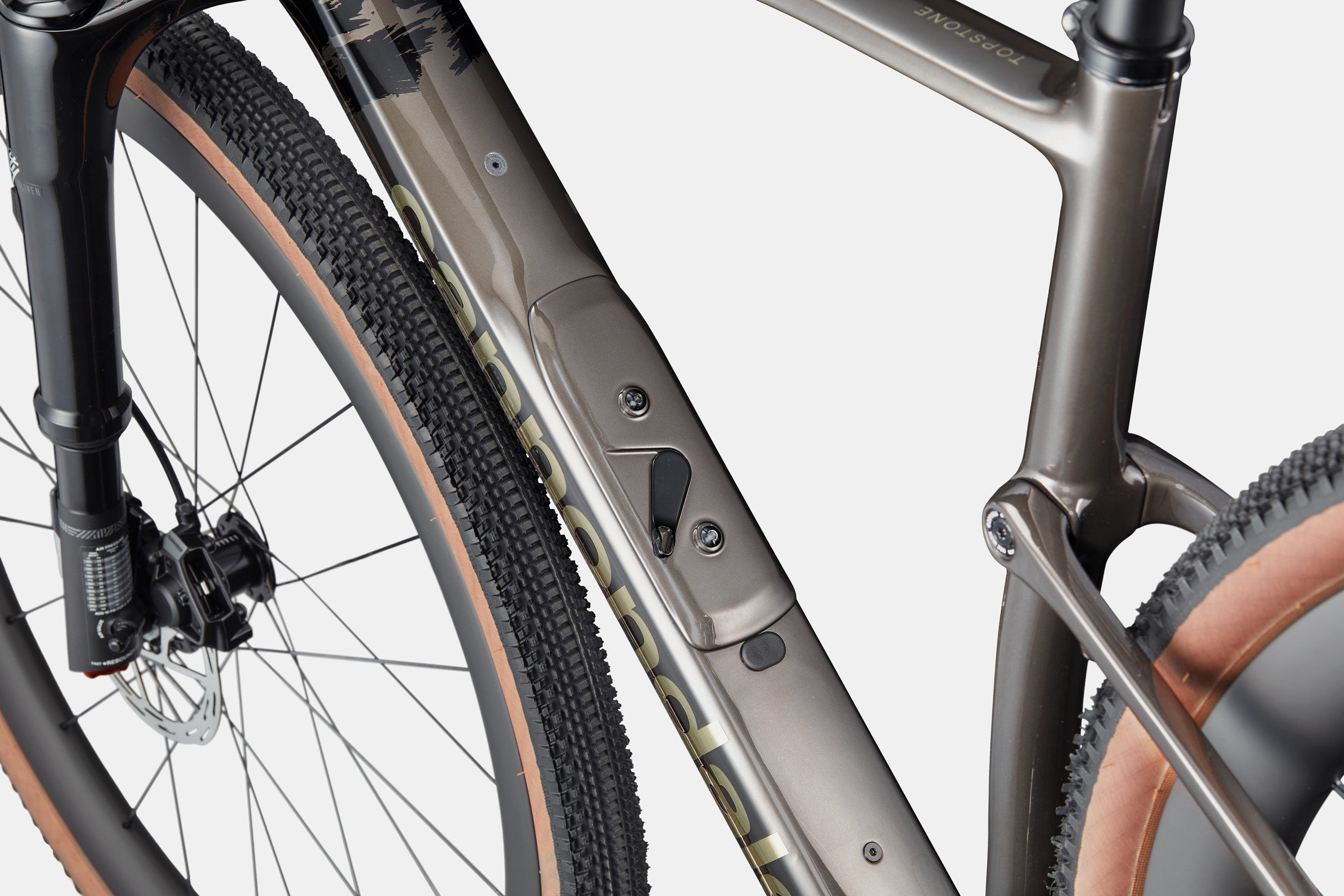

    Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube StashPort, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, removable fender bridge, multiple gear/bottle mounts
  • Fork
    Lefty Oliver, 40mm travel, lockout, Gen 2 Chamber Damper w/ All-Over tune, ISO High-Ride air spring, tapered steerer, 700c, 55mm offset
  • Headset
    Acros IS52/40 ICR

Drivetrain

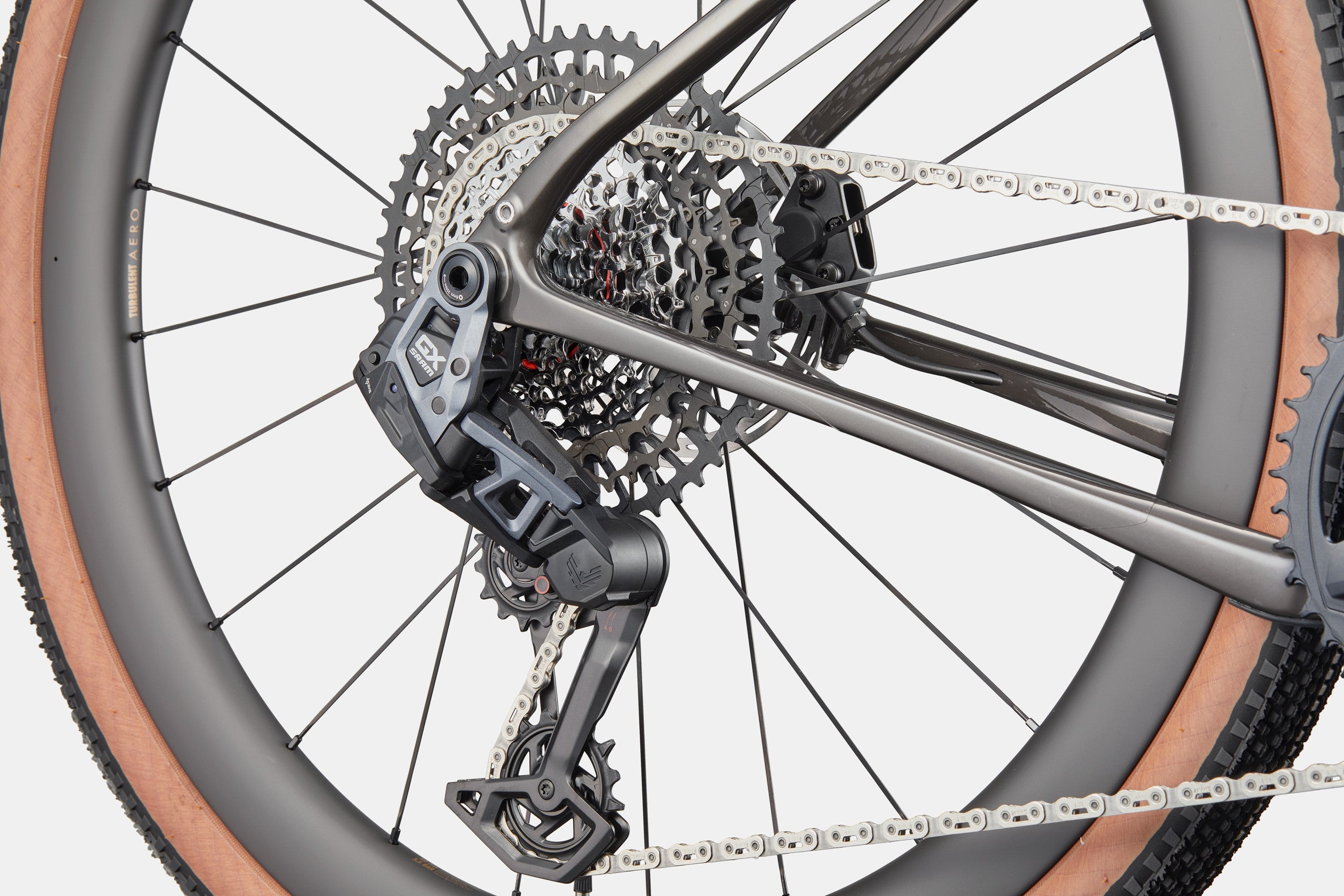

  • Rear Derailleur
    SRAM GX Eagle AXS, T-Type, 12-speed
  • Shifters
    SRAM Rival AXS, 12/13-speed compatible
  • Chain
    SRAM GX Eagle T-Type, 12-speed

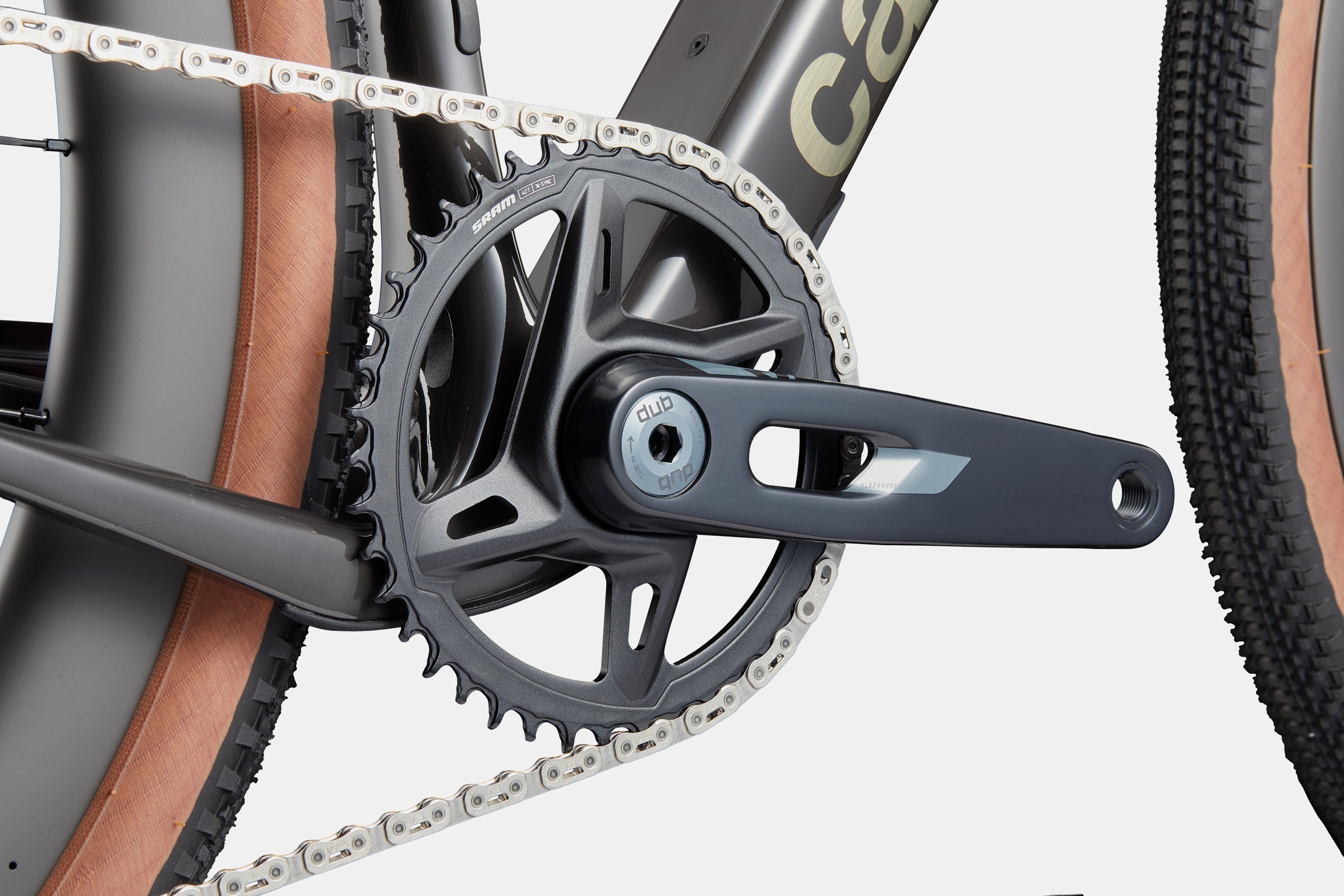

  • Crank
    SRAM Rival XPLR Wide, 42T: 165mm (47cm), 170mm (51cm), 172.5 (54-56cm), 175mm (58-61cm)
  • Rear Cogs
    SRAM GX XS-1275, 10-52, T-Type, 12-speed
  • Bottom Bracket
    SRAM DUB BSA Road 68 Wide

Brakes

  • Brakes
    SRAM Rival hydraulic disc, CenterLine X 160/160mm 6-bolt front, centerlock rear rotors
  • Brake Levers
    SRAM Rival AXS hydraulic disc

Wheels

  • Rims
    Reserve 40|44 GR Carbon, Turbulent Aero Tech, 24h, tubeless ready
  • Spokes
    Sapim CX-Delta
  • Tire Size
    44
  • Wheel Size
    700c
  • Hubs
    (F) Lefty 50, 6-Bolt / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock
  • Tires
    WTB Vulpine TCS Light, 700x45c, tubeless ready

Components

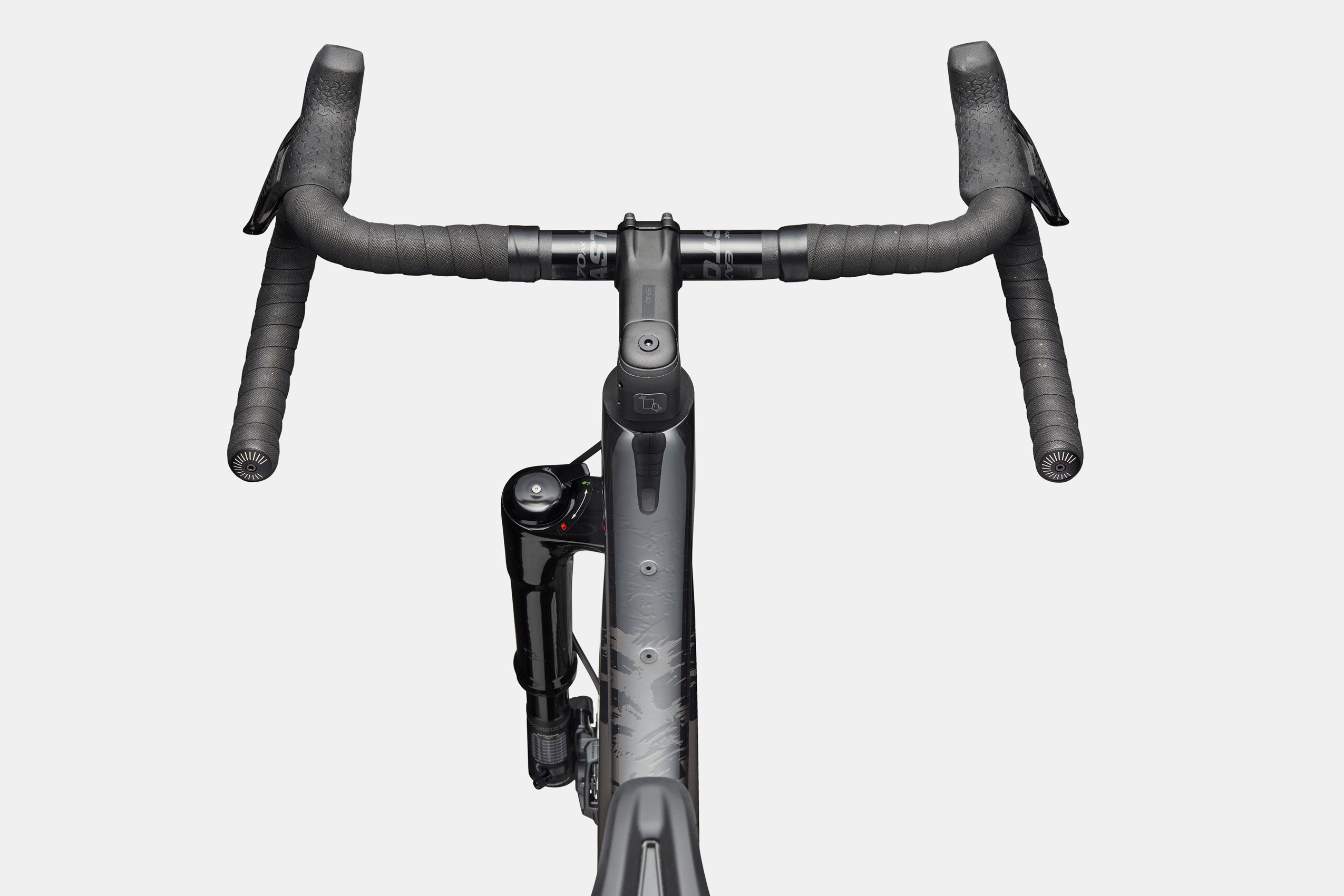

  • Handlebar
    Easton EA70 AX, alloy, 16 deg flare, 120mm drop: 400mm (47cm), 420mm (51-54), 440mm (56-61cm)
  • Stem
    Cannondale C1 Conceal, Alloy, 31.8, -6°: 70mm (47-51m), 80mm (54cm), 90mm (56-58cm), 100mm (61cm)
  • Grips
    Cannondale KnurlCork, 2.7mm
  • Saddle
    Fizik Terra Argo X5, S-Alloy rails, 150mm
  • Seatpost
    Cannondale SAVE Carbon, 27.2x350mm (47-58), 400mm (61)

Extra

  • Extra 1
    Large StashBag downtube storage bag, Reserve Fillmore tubeless valve stems, SRAM AXS charger, Conceal Stem accessory/computer mount (Garmin/Wahoo)
