Details

• Platform

  SuperX
• Model Name

  SuperX LAB71
• Model Code

  C17015U

Frameset

• Frame

  Lab71 SuperX, Series 0 carbon construction, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
• Fork

  Lab71 SuperX, Series 0 carbon construction, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
• Headset

  Integrated, 1-1/8" - 1.5"

Drivetrain

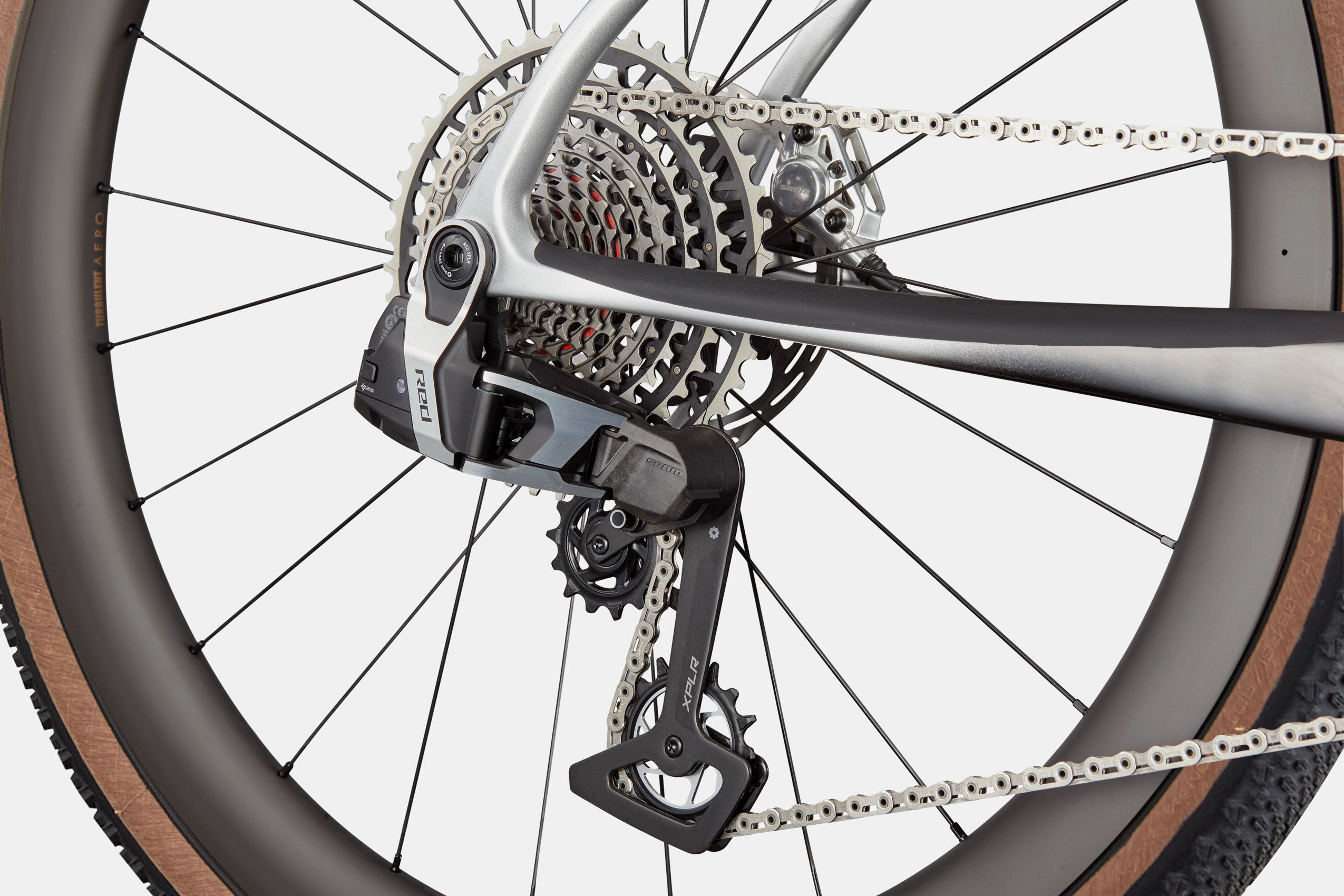

• Rear Derailleur

  SRAM RED XPLR AXS
• Shifters

  SRAM RED AXS, 13-speed
• Chain

  SRAM RED, 13-speed

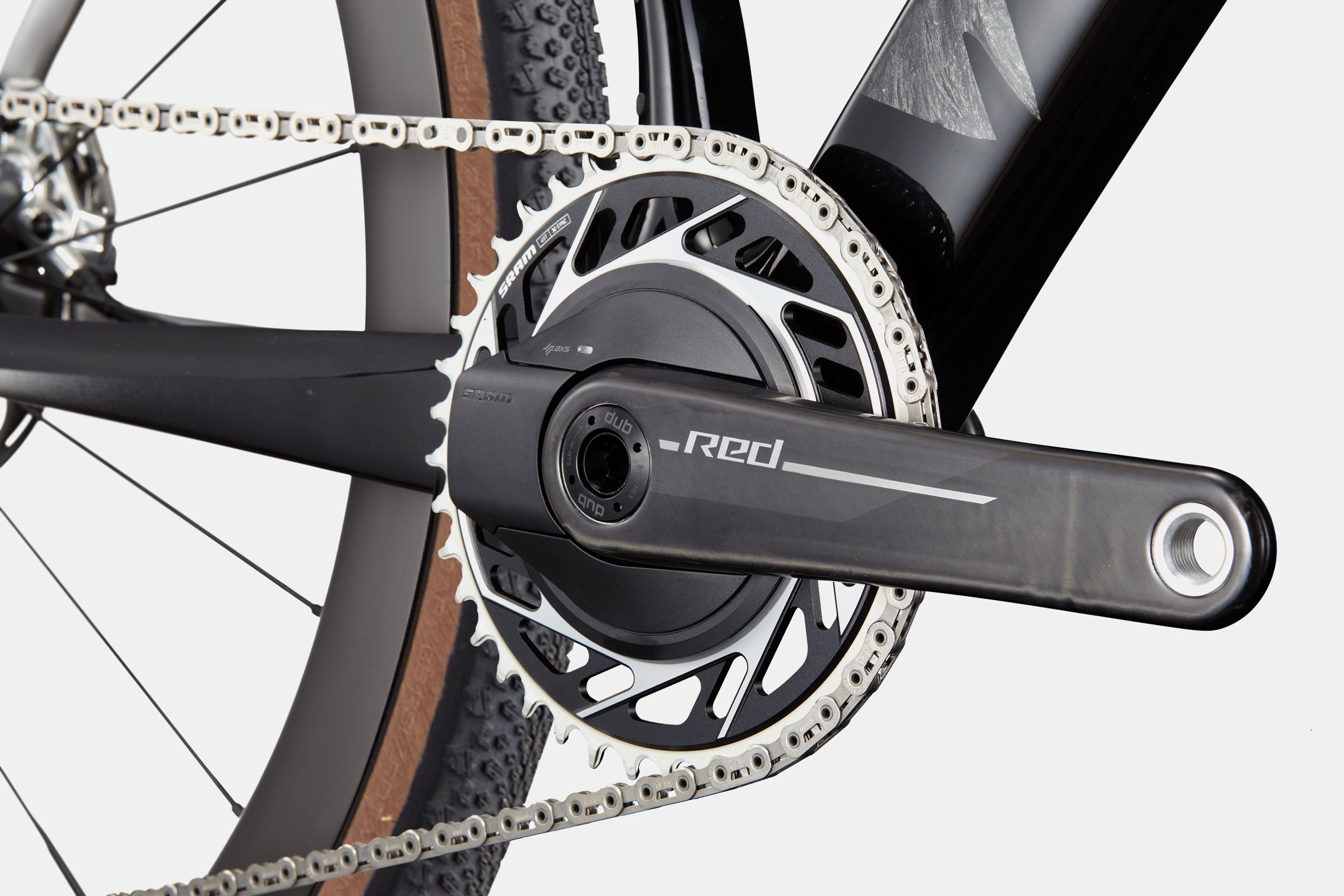

• Crank

  SRAM RED XPLR AXS Power Meter, 40T: 165mm (46cm), 170mm (51-54cm), 172.5 (58-58cm), 175mm (61cm)
• Rear Cogs

  SRAM RED XPLR, 10-46, 13-speed
• Bottom Bracket

  CeramicSpeed DUB BSA

Brakes

• Brakes

  SRAM RED AXS, Paceline X 160/160mm rotors
• Brake Levers

  SRAM RED AXS hydraulic disc

Wheels

• Front Hub

  DT Swiss 180, 12x100mm centerlock
• Rear Hub

  DT Swiss 180, 12x142mm centerlock
• Rims

  Reserve 40|44 GR, Carbon, Turbulent Aero tech, 24h, tubeless ready
• Spokes

  Sapim CX-Ray Aero straight pull
• Wheel Size

  700c
• Tires

  Vittoria Terreno T50, 700x40c, tubeless ready
• Front Tire

  Vittoria Terreno T50, 700x40c
• Rear Tire

  Vittoria Terreno T50, 700x40c

Components

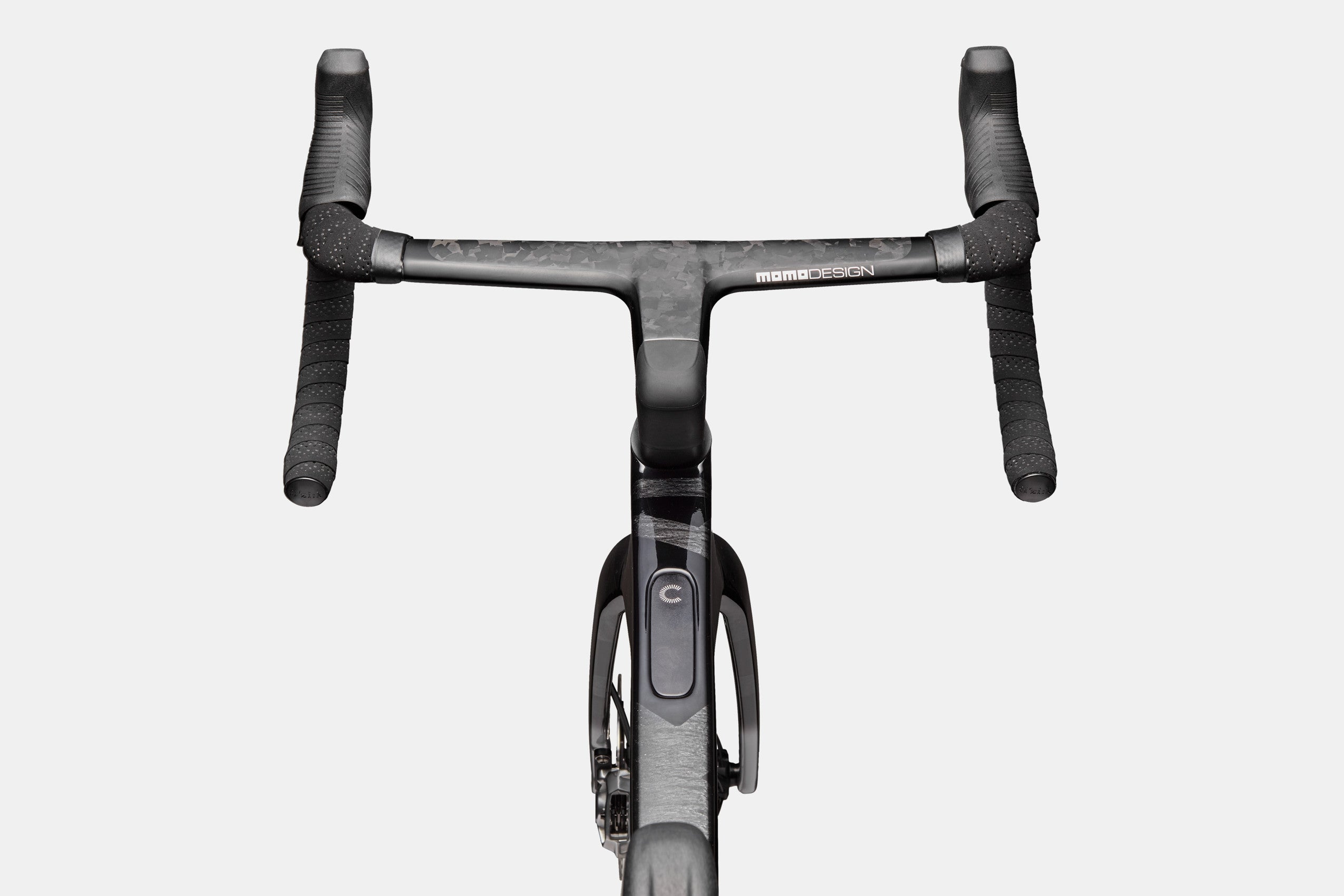

• Handlebar

  Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing: 90x400mm (46-51cm), 100x420mm (54-56cm), 110x420mm (58cm), 120x420mm (61cm)
• Stem

  Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
• Grips

  Fizik Tempo Bondcush 3mm Soft
• Saddle

  Fizik Vento Antares 00, carbon rail, 140mm
• Seatpost

  Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 15mm offset (51-61cm)

Extra

• Extra 1

  Reserve Fillmore valves, SRAM AXS charger, SystemBar R-One Garmin/Wahoo computer mount
