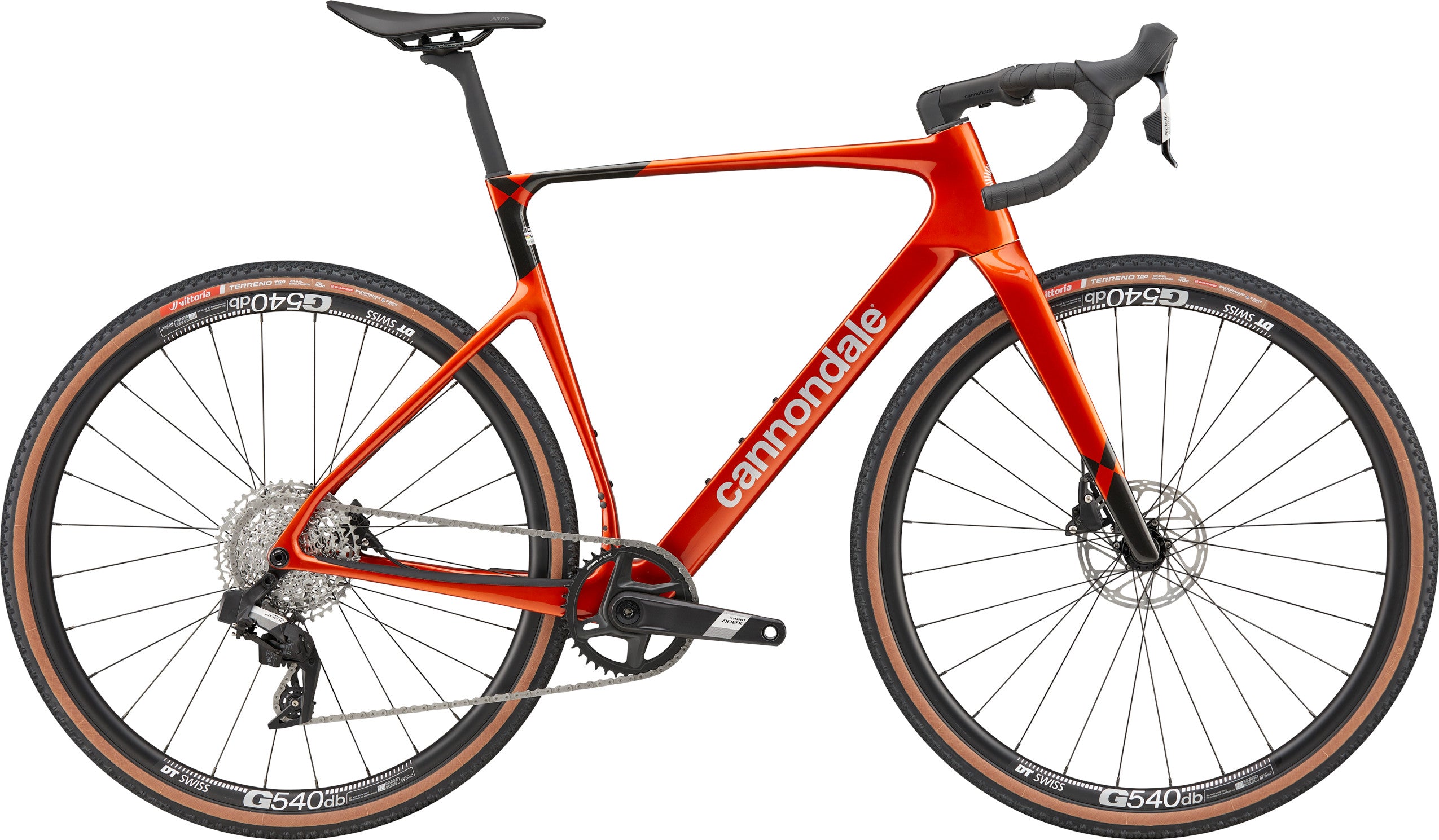

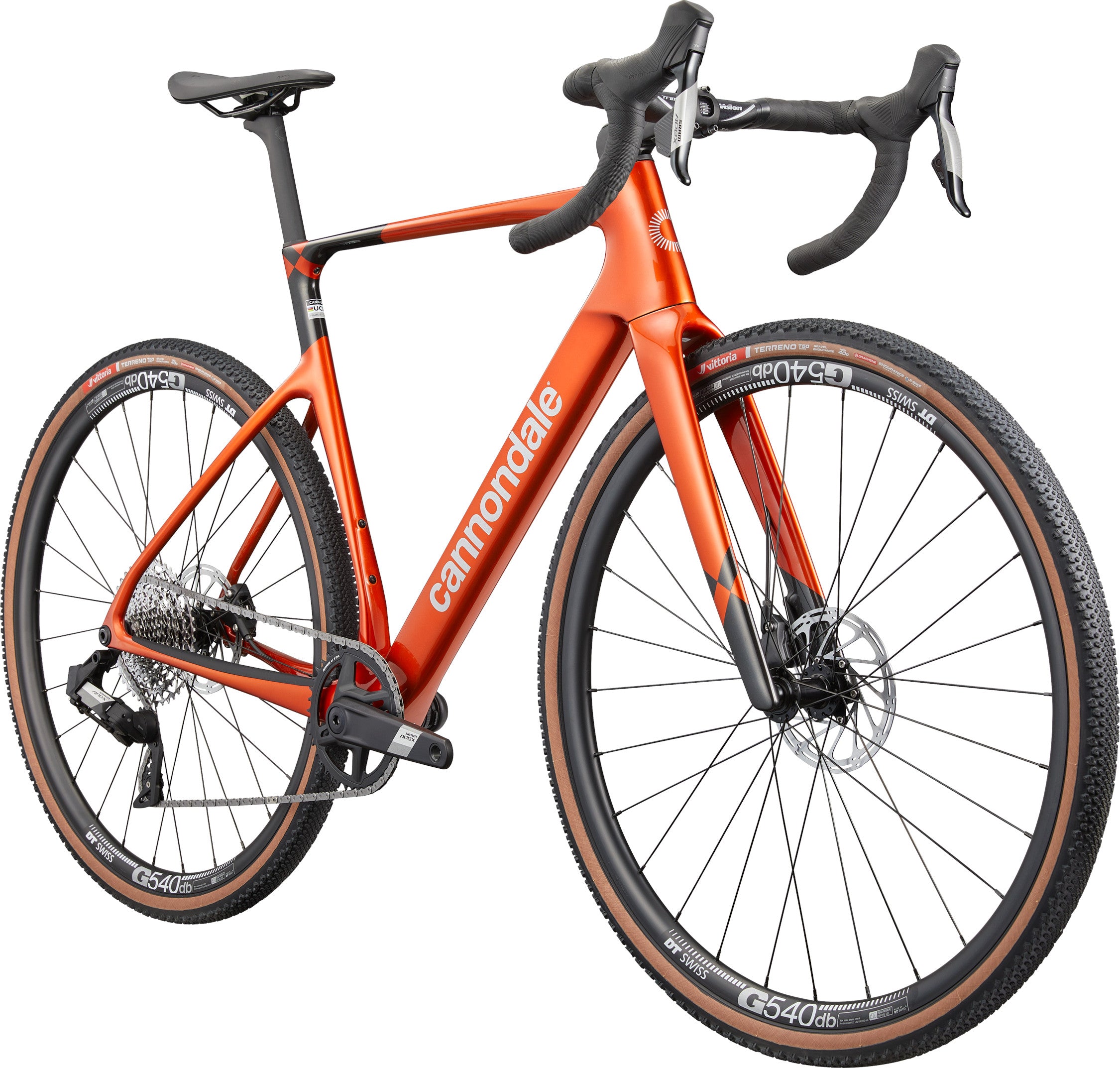

Cannondale SuperX 4 AXS

R 79,995.00
Size
Color
Size Chart





Cannondale Bicycle Sizing Guide

Bike Size Rider Height Range
XSmall 148 - 155 cm
Small 154 - 165 cm
Medium 162 - 175 cm
Large 172 - 182 cm
XLarge 180 - 195 cm

Note: The provided sizing chart is a general guideline. Please consult with a professional bike fitter for the best fit.
×

Product Enquiry

Details

  • Platform
    SuperX
  • Model Name
    SuperX 4 AXS
  • Model Code
    C1706GU

Frameset

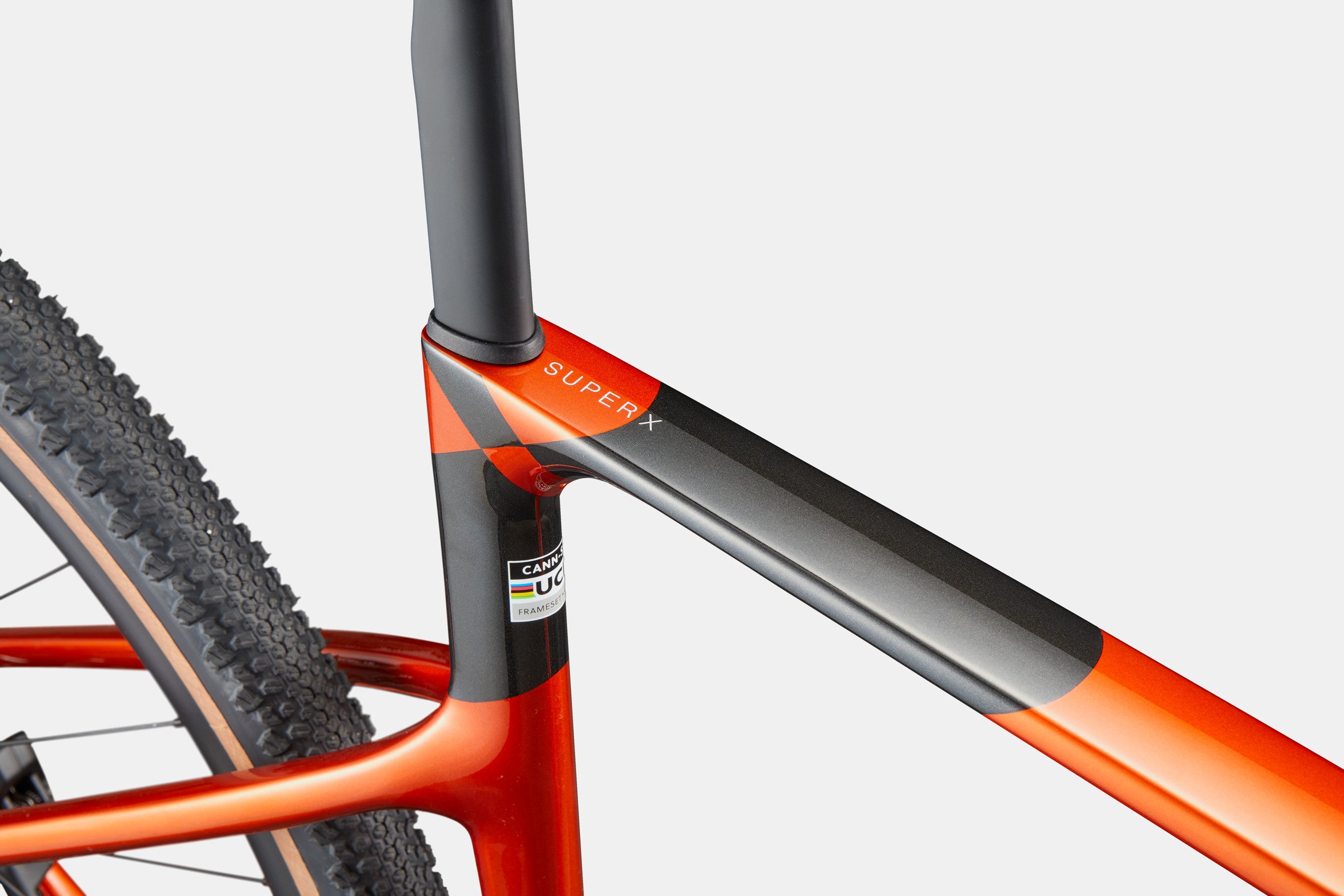

  • Frame
    SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
  • Fork
    SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
  • Headset
    Integrated, 1-1/8" - 1.5"

Drivetrain

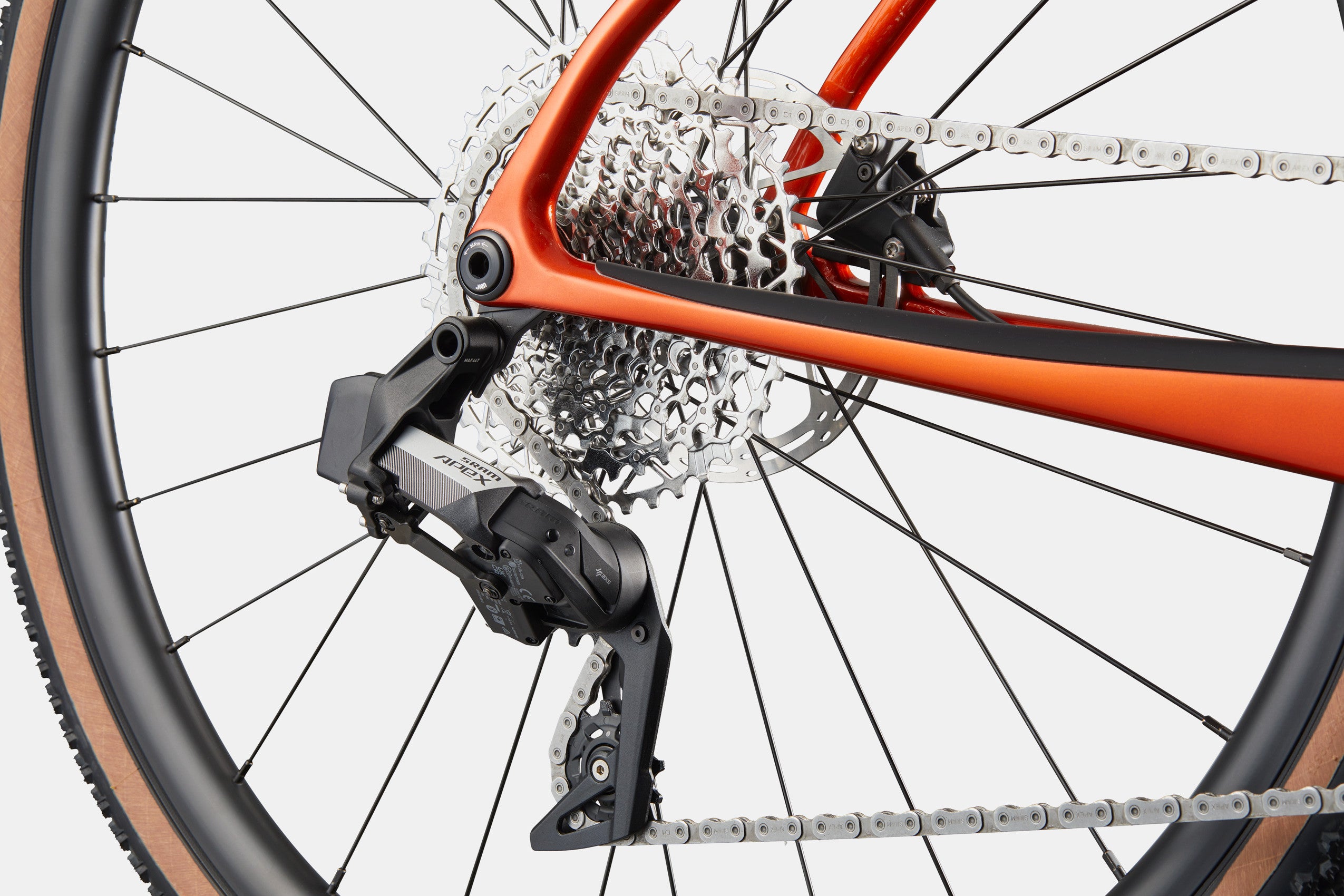

  • Rear Derailleur
    SRAM Apex AXS XPLR, 12-speed

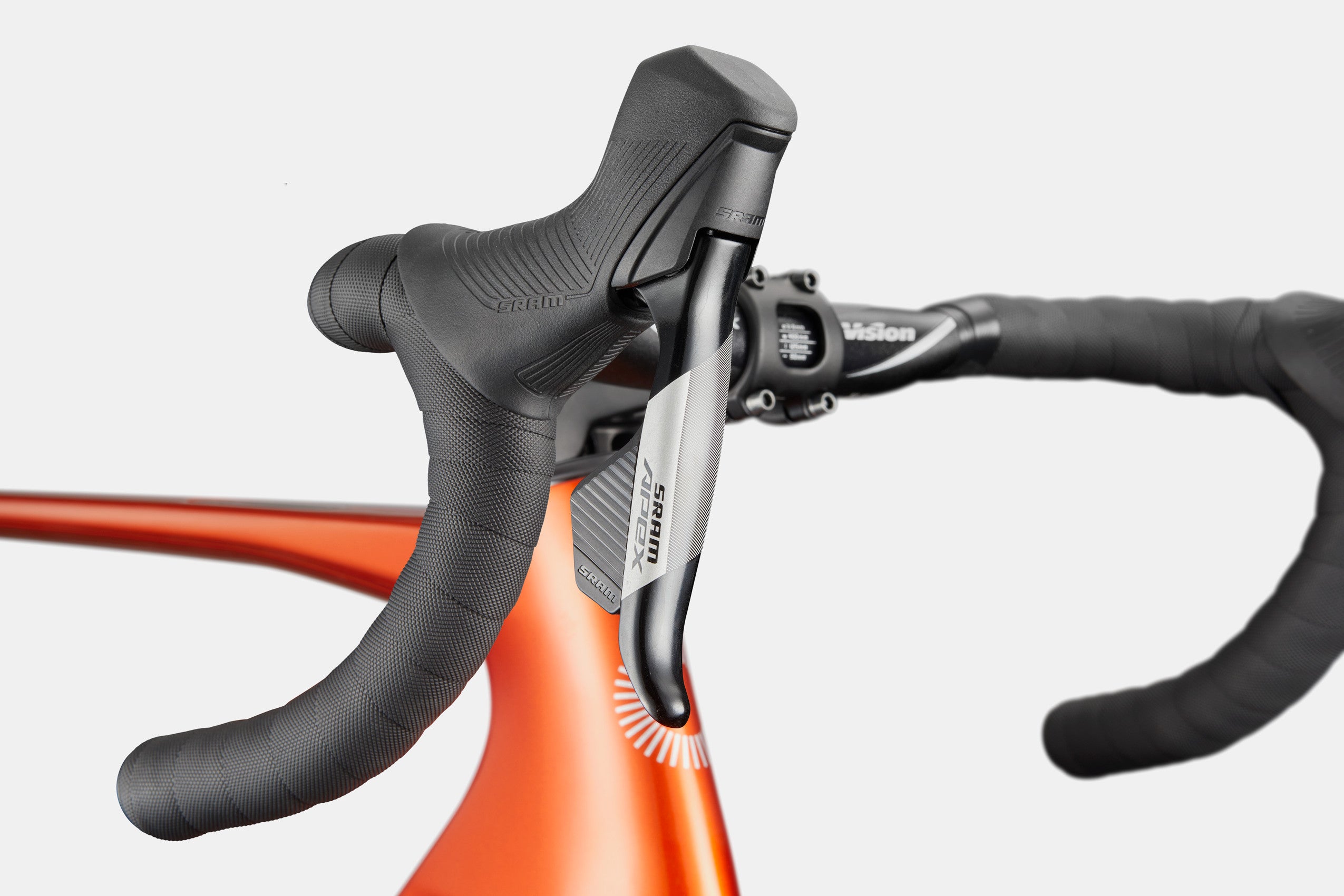

  • Shifters
    SRAM Apex AXS, 12-speed
  • Chain
    SRAM Apex, 12-speed

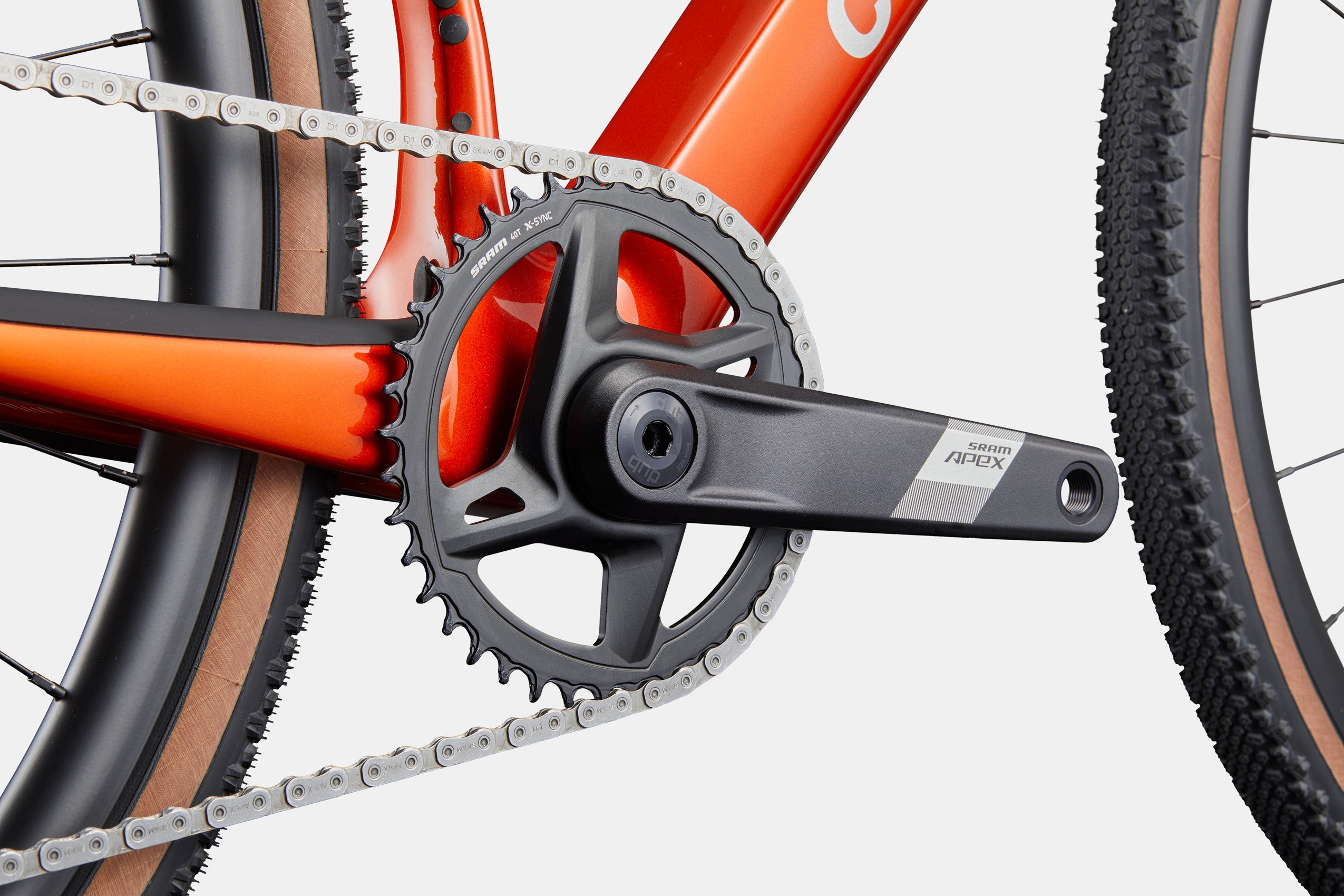

  • Crank
    SRAM Apex 1 Wide, 40T: 165mm (46cm), 170mm (51-54cm), 172.5 (56-58cm), 175mm (61cm)
  • Rear Cogs
    SRAM Apex XPLR PG-1231, 11-44, 12-speed
  • Bottom Bracket
    SRAM DUB BSA Road 68 Wide

Brakes

  • Brakes
    SRAM Apex hydraulic disc, Centerline 160/160mm centerlock rotors
  • Brake Levers
    SRAM Apex AXS hydraulic disc

Wheels

  • Rims
    DT Swiss G540, 24mm inner width, 28h, tubeless ready
  • Spokes
    DT Swiss Champion
  • Tire Size
    40
  • Wheel Size
    700c
  • Hubs
    Shimano TC500, centerlock, (F) 12x100mm, (R) 12x142mm
  • Tires
    Vittoria Terreno T50, 700x40c, tubeless ready

Components

  • Handlebar
    Vision Trimax Aero Alloy : 400mm (46-58cm), 420mm (61cm)
  • Stem
    Cannondale C1 Conceal, Alloy, 31.8, -6°: 90mm (46-51m), 100mm (54-56cm), 110mm (58-61cm)
  • Grips
    Cannondale Bar Tape, 3.5mm
  • Saddle
    Fizik Vento Argo X5, S-Alloy rails, 140mm
  • Seatpost
    Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 15mm offset (51-61cm)

Extra

  • Extra 1
    Tubeless valves, SRAM AXS charger, Conceal Stem accessory/computer mount (Garmin/Wahoo/Hammerhead)
