Details

• Platform

  SuperX
• Model Name

  SuperX 3
• Model Code

  C17045U

Frameset

• Frame

  SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
• Fork

  SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
• Headset

  Integrated, 1-1/8" - 1.5"

Drivetrain

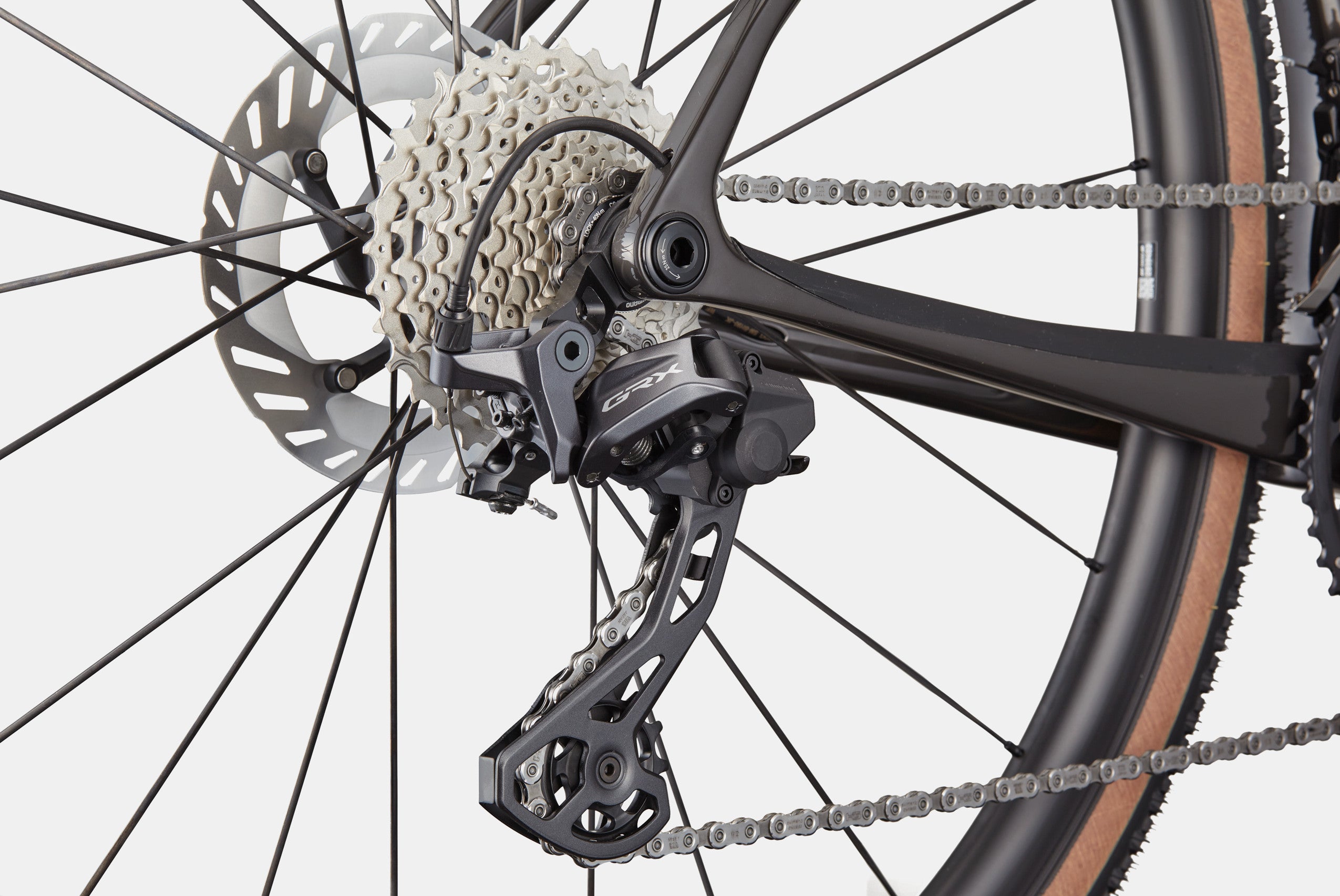

• Rear Derailleur

  Shimano GRX 820, Shadow RD+
• Front Derailleur

  Shimano GRX 820, braze-on
• Shifters

  Shimano GRX 820, 12-speed
• Chain

  Shimano M8100, 12-speed

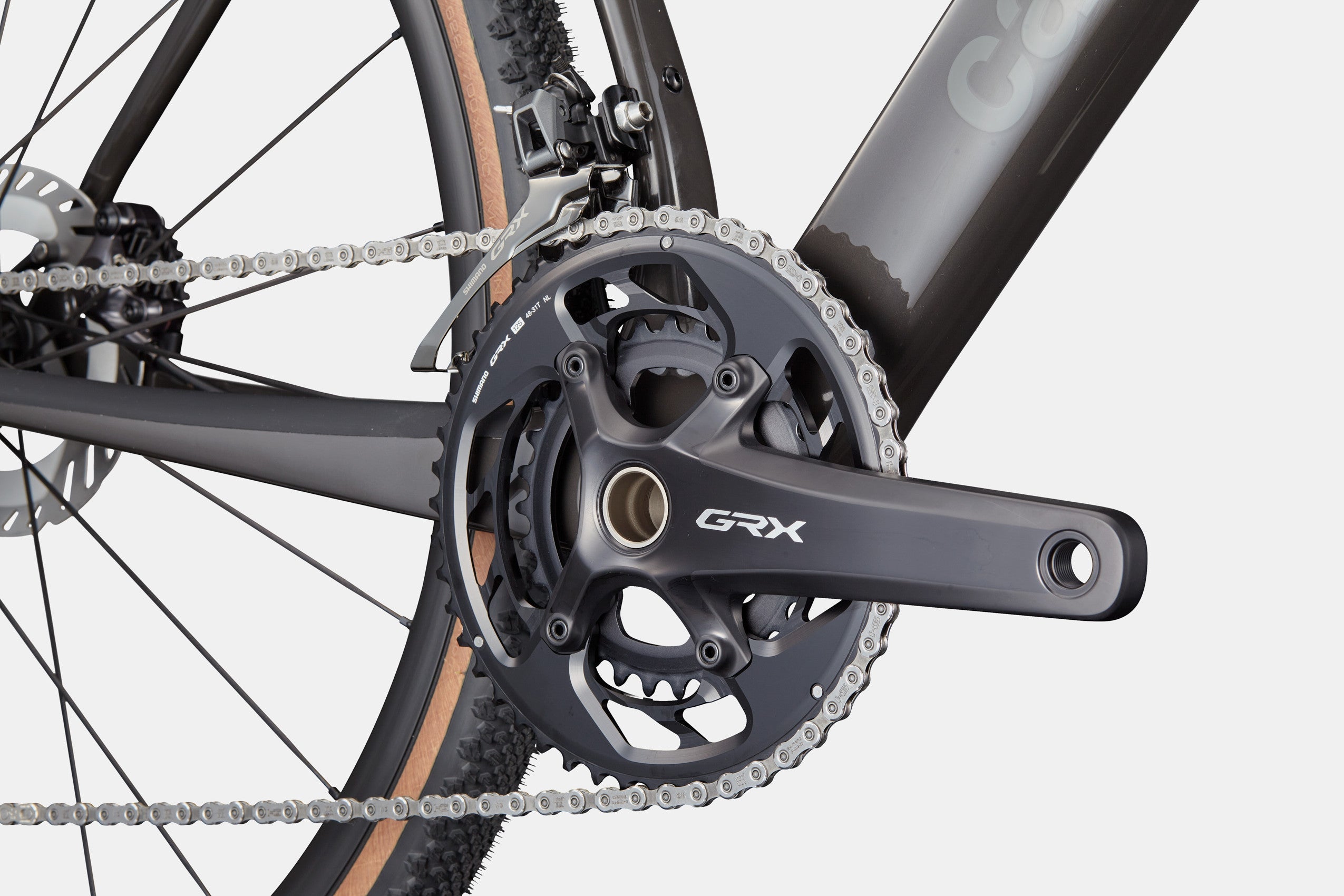

• Crank

  Shimano GRX RX820, 48/31: 170mm (51cm), 172.5 (54-56cm), 175mm (58-61) / Note: size 46cm gets 165mm GRX RX610 cranks, 46/30
• Rear Cogs

  Shimano 105 7100, 11-36, 12-speed
• Bottom Bracket

  Shimano BSA 68

Brakes

• Brakes

  Shimano GRX 820, 160/160mm CL800 rotors
• Brake Levers

  Shimano GRX RX820 hydraulic disc

Wheels

• Rims

  DT Swiss G1800 Spline 24mm inner width, 25mm depth, 24h, tubeless ready
• Spokes

  DT Swiss Aero Comp
• Tire Size

  40
• Wheel Size

  700c
• Hubs

  (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock
• Tires

  Vittoria Terreno T50, 700x40c, tubeless ready
• Front Tire

  Vittoria Terreno T50, 700x40c
• Rear Tire

  Vittoria Terreno T50, 700x40c

Components

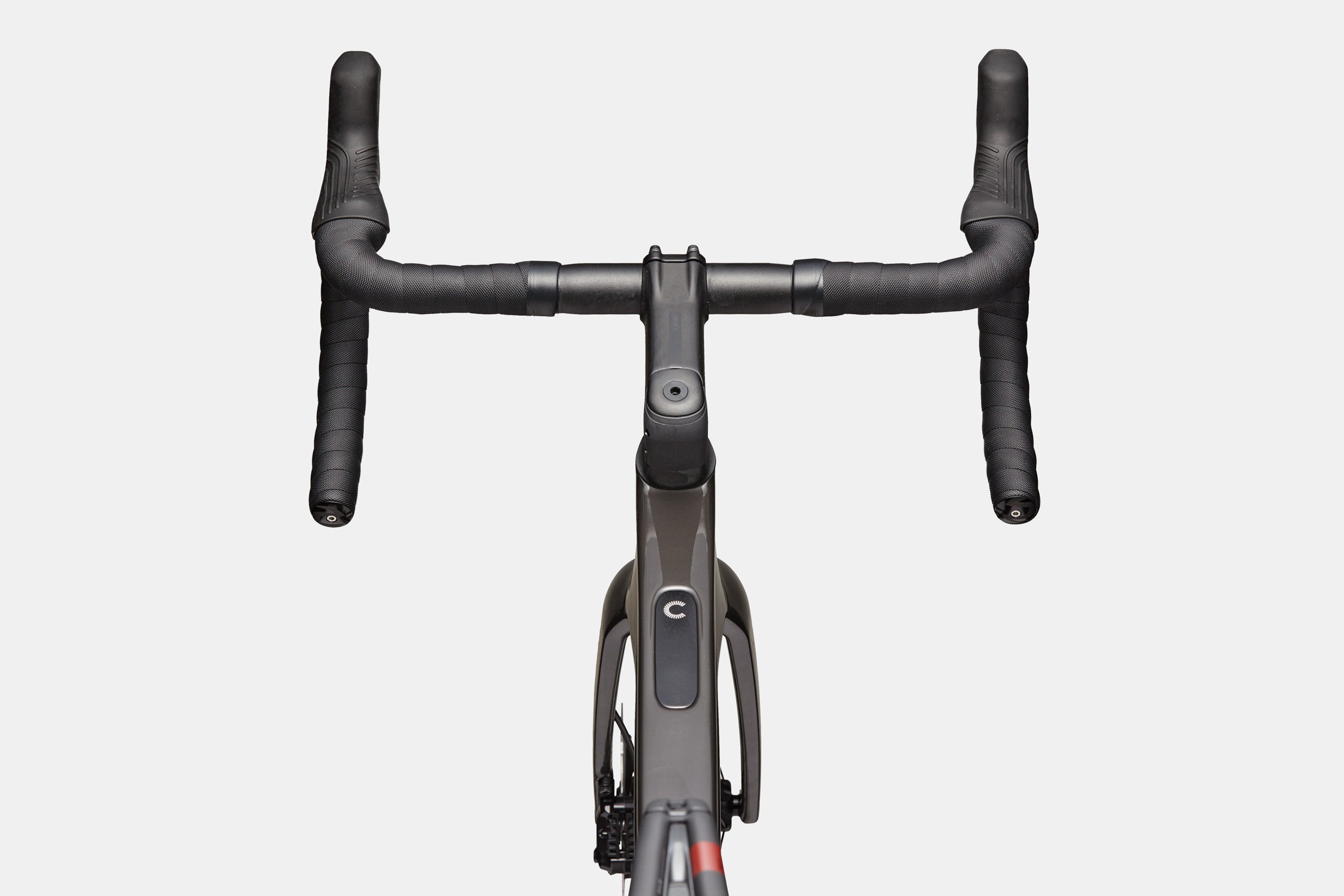

• Handlebar

  Cannondale C2, 7050 Alloy, Compact: 400mm (46-51cm), 420mm (54-61cm)
• Stem

  Cannondale C1 Conceal, Alloy, 31.8, -6°: 90mm (46-51m), 100mm (54-56cm), 110mm (58-61cm)
• Grips

  Cannondale Bar Tape, 3.5mm
• Saddle

  Prologo Dimension AGX STN
• Seatpost

  Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 15mm offset (51-61cm)

Extra

• Extra 1

  Tubeless valves, Conceal Stem accessory/computer mount (Garmin/Wahoo)
