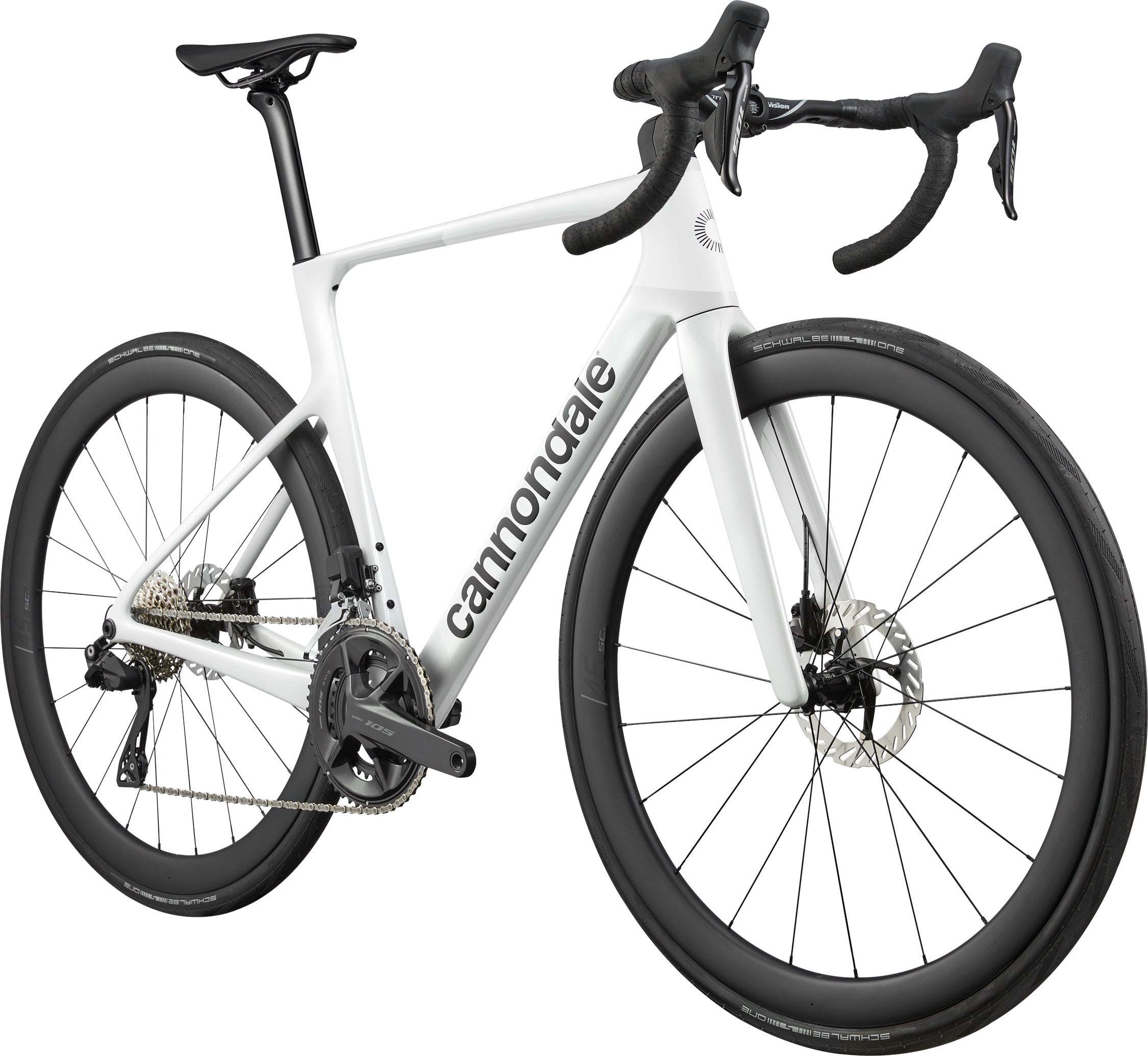

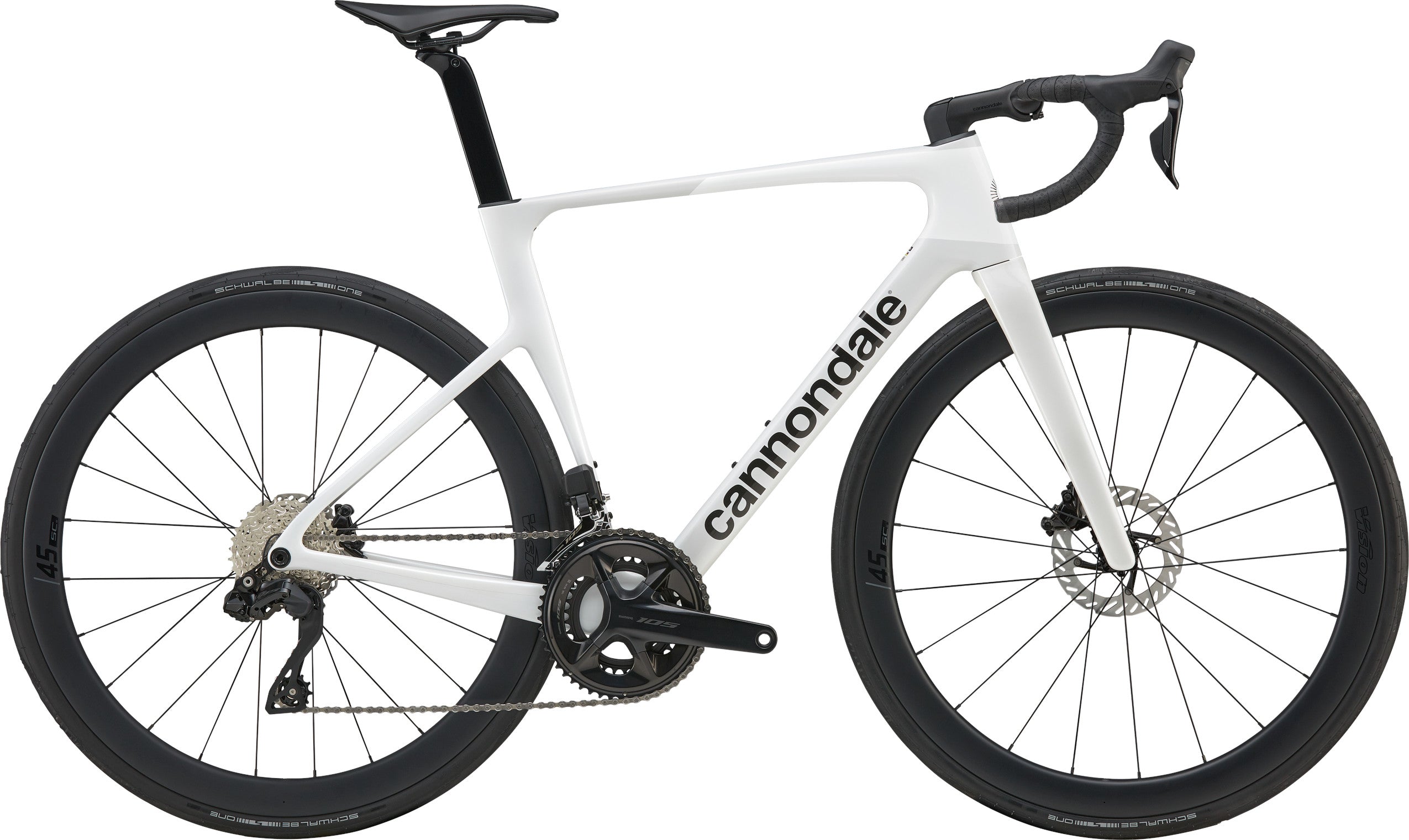

Cannondale SuperSix EVO 5 Gen 5

R 99,995.00
Size
Color
Size Chart





Cannondale Bicycle Sizing Guide

Bike Size Rider Height Range
XSmall 148 - 155 cm
Small 154 - 165 cm
Medium 162 - 175 cm
Large 172 - 182 cm
XLarge 180 - 195 cm

Note: The provided sizing chart is a general guideline. Please consult with a professional bike fitter for the best fit.
×

Product Enquiry

Details

  • Platform
    SuperSix EVO
  • Model Name
    SuperSix EVO 5
  • Model Code
    C1109GU

Frameset

  • Frame
    SuperSix EVO Carbon, Gen 5, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH
  • Fork
    SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
  • Headset
    Integrated, 1-1/8" - 1-1/4"

Drivetrain

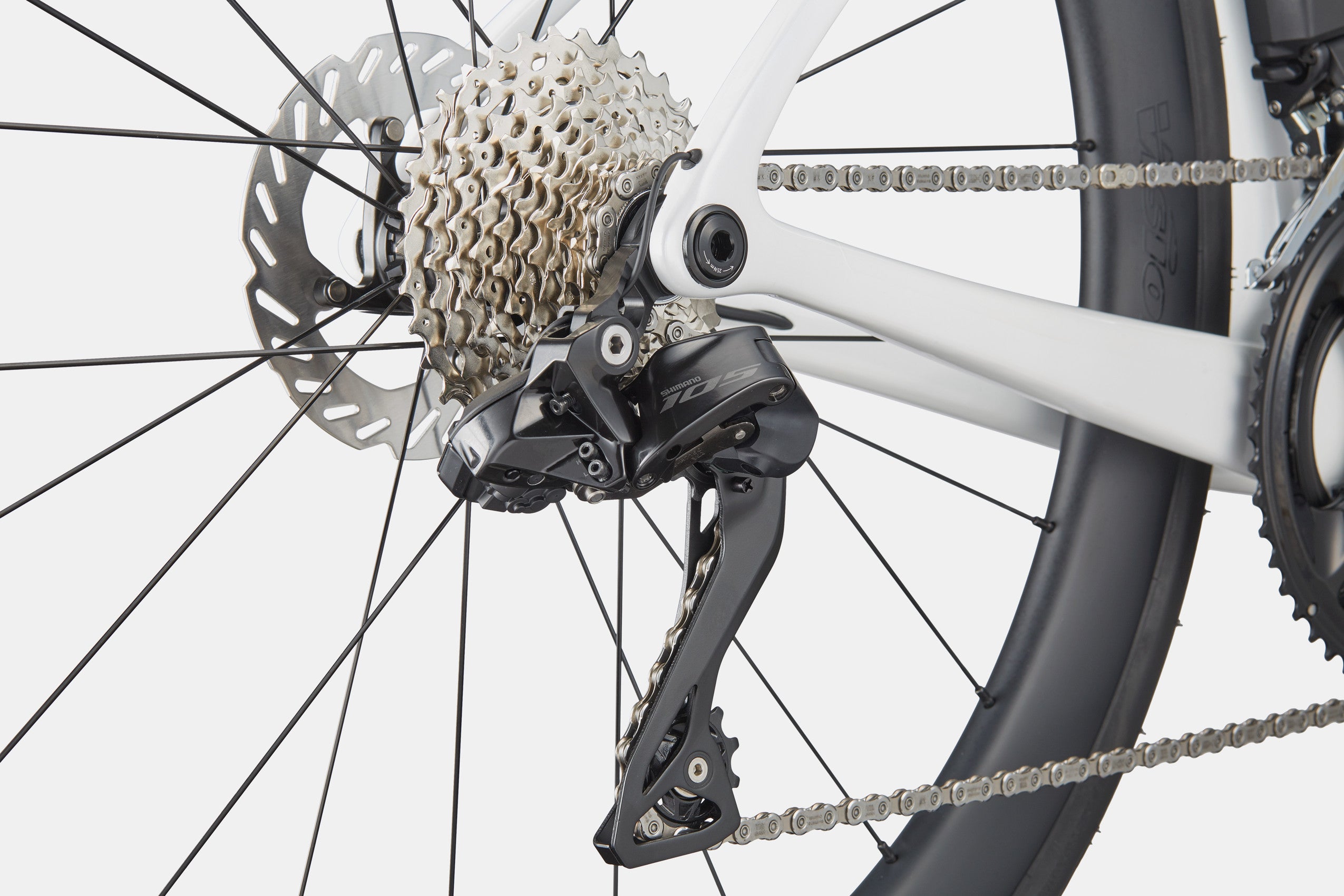

  • Rear Derailleur
    Shimano 105 Di2 R7150, 12-speed
  • Front Derailleur
    Shimano 105 Di2 R7170
  • Shifters
    Shimano 105 Di2 R7170, wireless, 2x12-speed
  • Chain
    Shimano 105, 12-speed

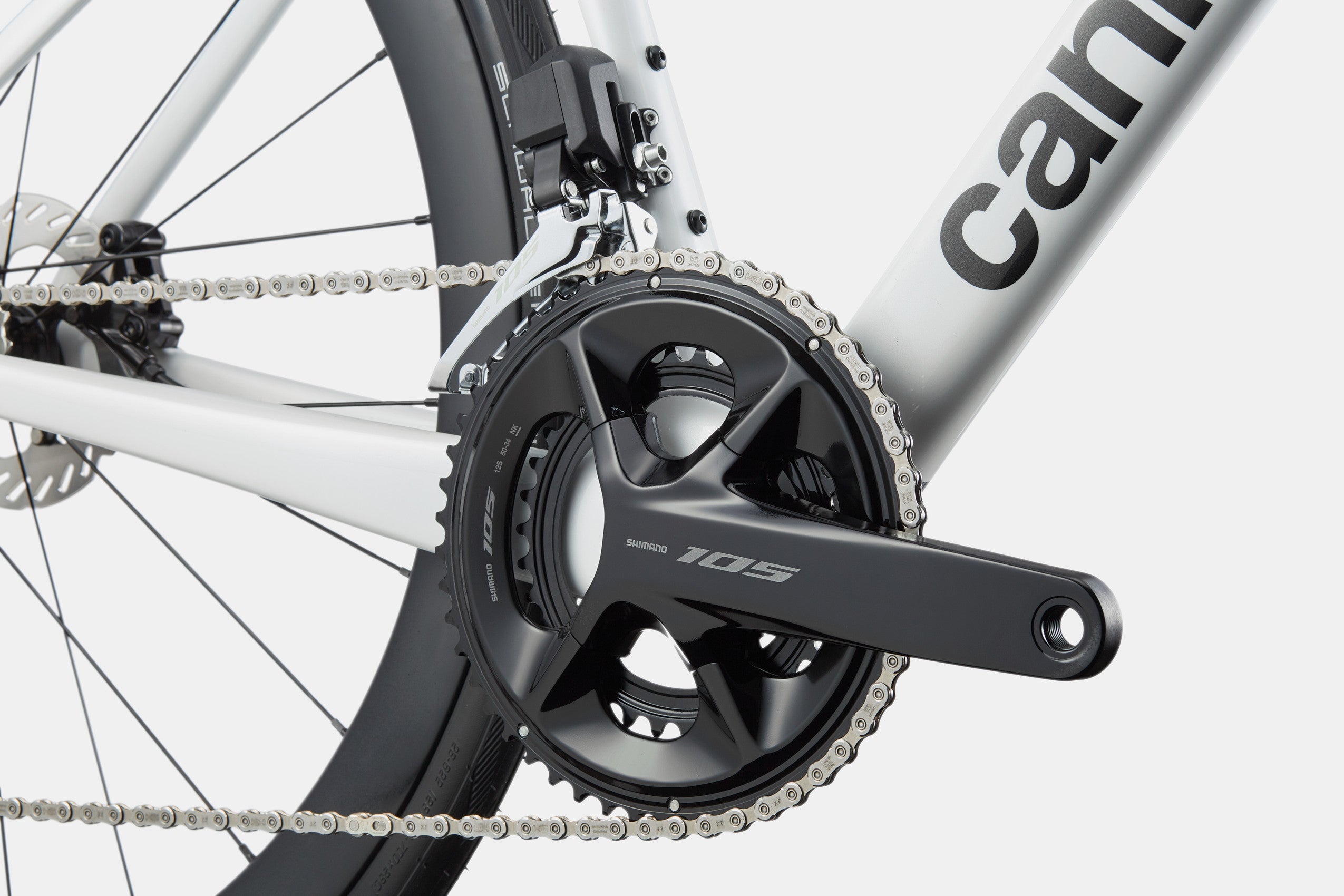

  • Crank
    Shimano 105 7100, 50/34: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)
  • Rear Cogs
    Shimano 105 R7100, 11-34, 12-speed
  • Bottom Bracket
    Shimano BB-RS500, BSA 68

Brakes

  • Brakes
    Shimano 105 R7170 hydraulic disc, 160/160mm CL700 rotors
  • Brake Levers
    Shimano 105 Di2 R7170 hydraulic disc

Wheels

  • Rims
    Vision SC45 I23, carbon, 23mm inner width, 45mm depth
  • Spokes
    2:1 aero bladed direct pull
  • Tire Size
    28
  • Wheel Size
    700c
  • Hubs
    Vision, centerlock, (F) 12x100mm, (R) Vision, 12x142mm
  • Tires
    Schwalbe One TLR, 700x28c, tubeless ready

Components

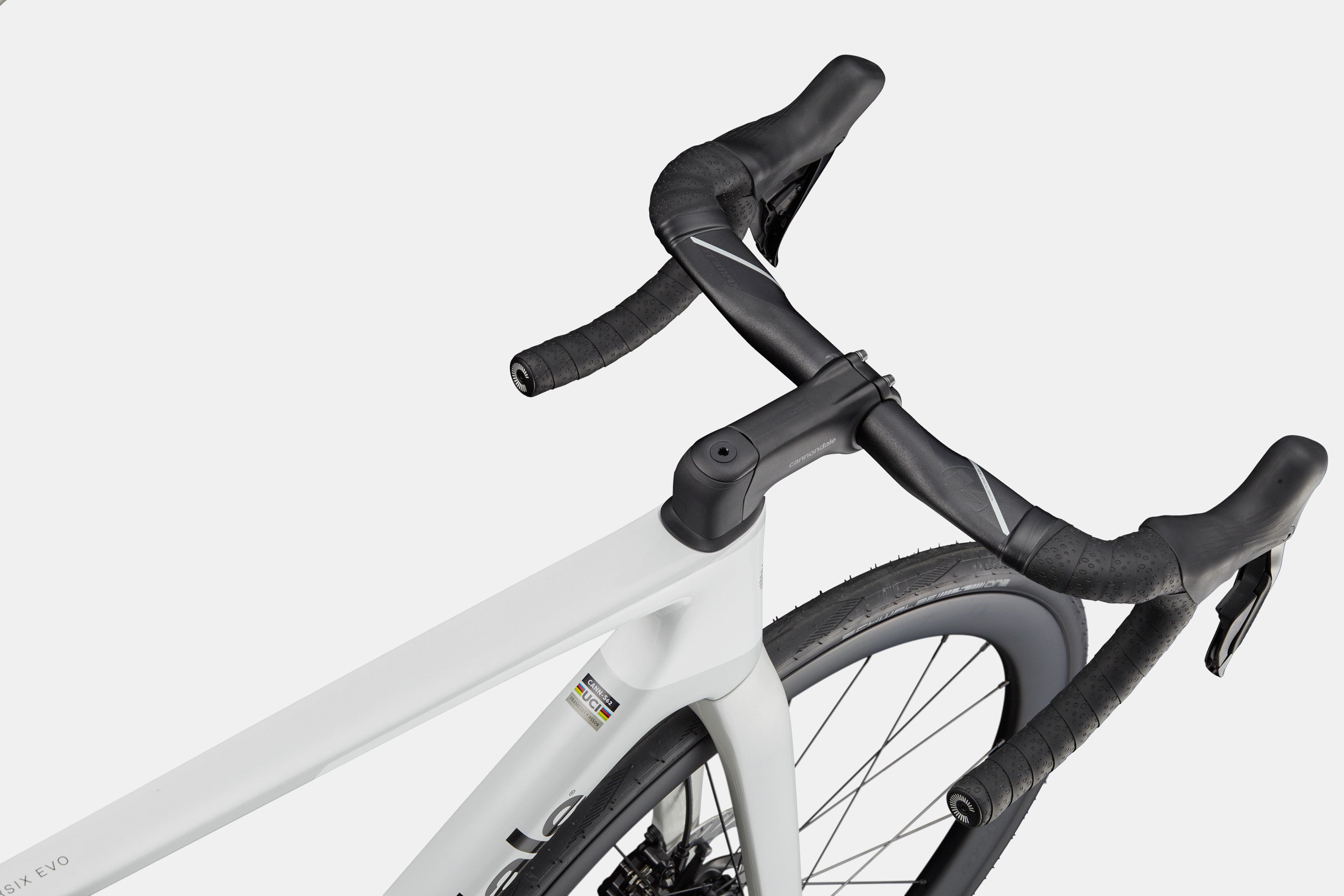

  • Handlebar
    Vision Trimax Aero: 400mm (44-56), 420mm (58-61)
  • Stem
    Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm)
  • Grips
    Cannondale Bar Tape, 3.5mm
  • Saddle
    Fizik Vento Antares R7, 140mm
  • Seatpost
    Cannondale C1 Aero 40 Carbon V2, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm)

Extra

  • Extra 1
    Tubeless valves, Shimano EC300 charging connector, Conceal Stem accessory/computer mount (Garmin/Wahoo)
View details
