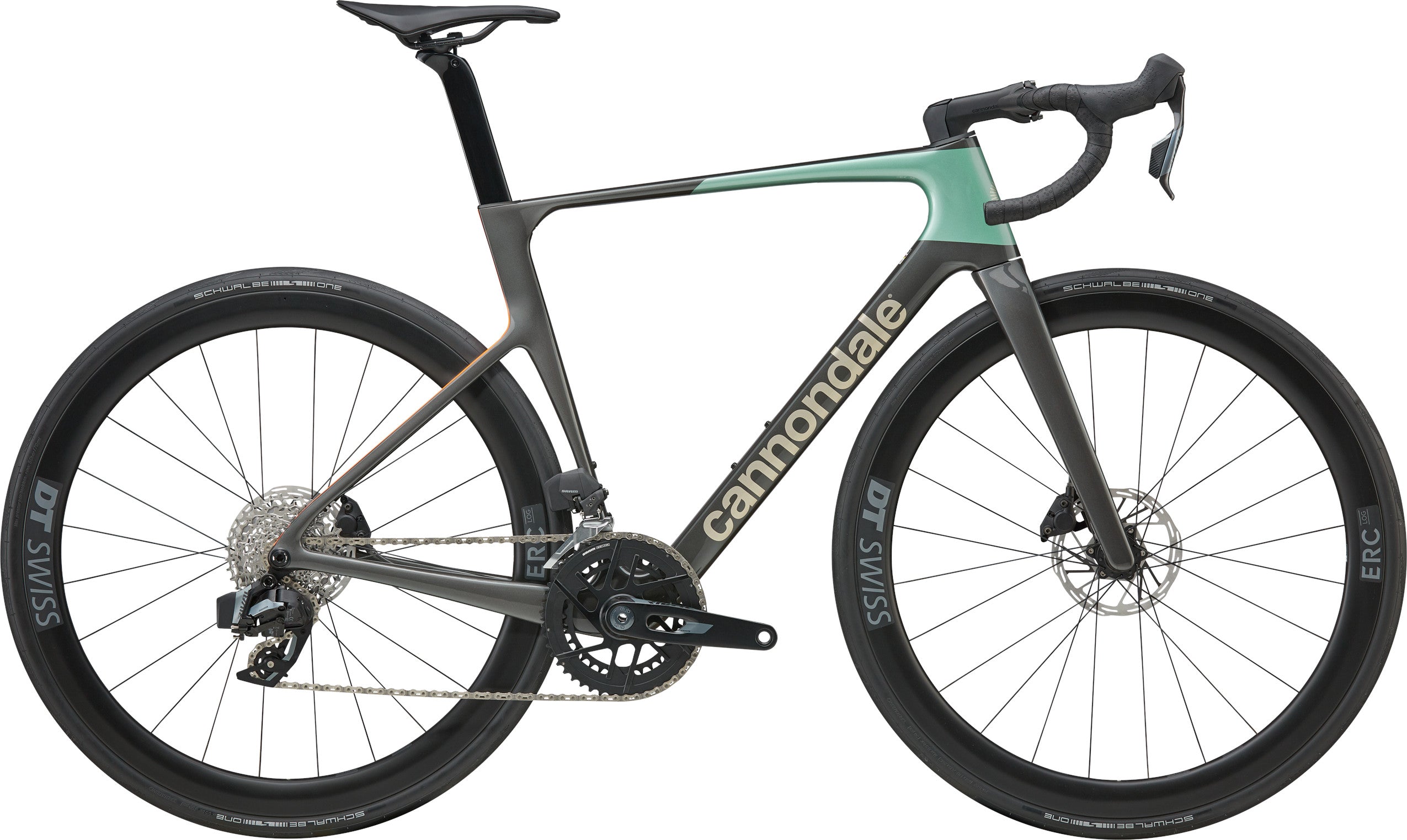

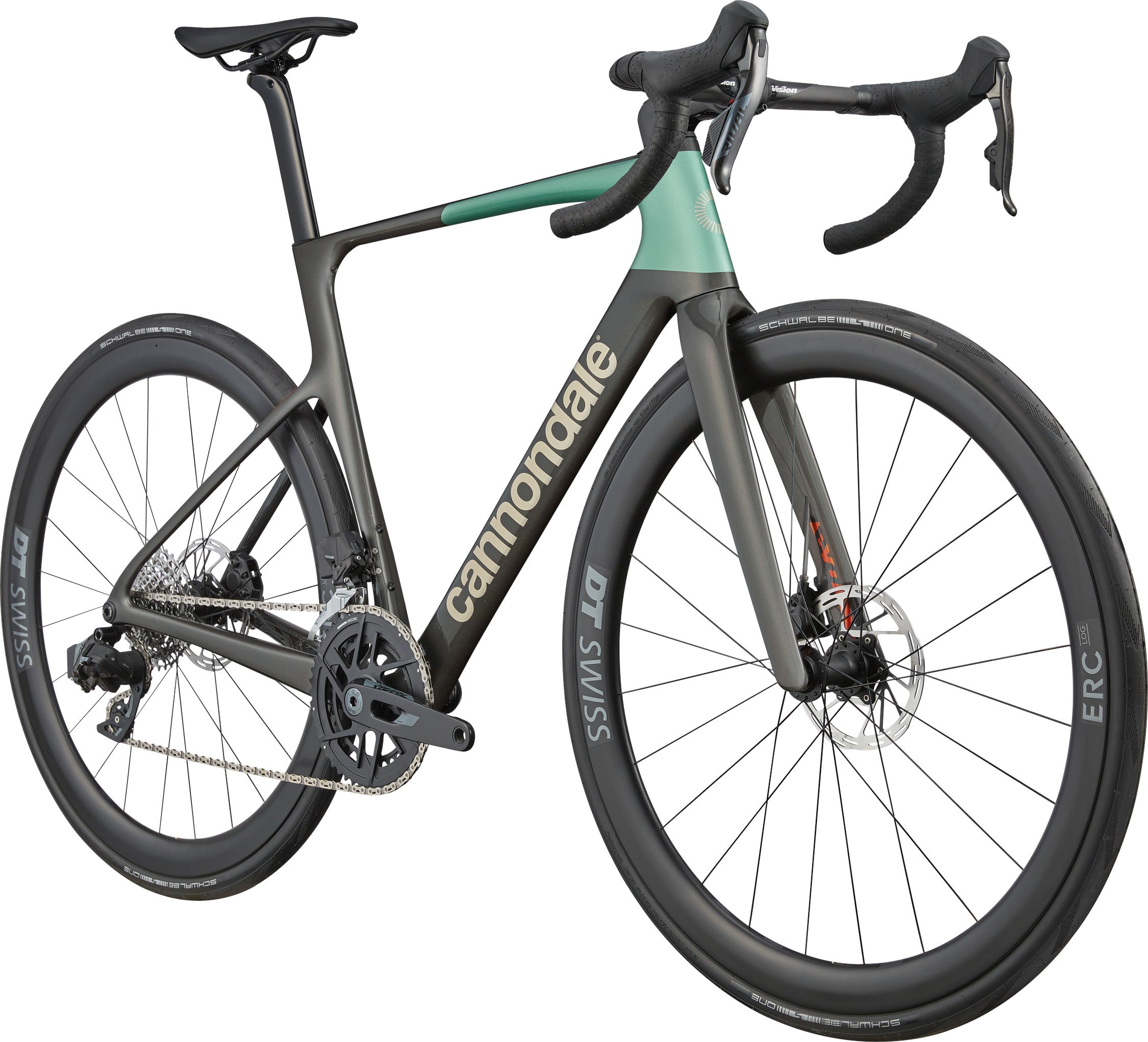

Cannondale SuperSix EVO 4 Gen 5

R 104,995.00
Size
Color
Size Chart





Cannondale Bicycle Sizing Guide

Bike Size Rider Height Range
XSmall 148 - 155 cm
Small 154 - 165 cm
Medium 162 - 175 cm
Large 172 - 182 cm
XLarge 180 - 195 cm

Note: The provided sizing chart is a general guideline. Please consult with a professional bike fitter for the best fit.
×

Product Enquiry

Details

  • Platform
    SuperSix EVO
  • Model Name
    SuperSix EVO 4
  • Model Code
    C1108GU

Frameset

  • Frame
    SuperSix EVO Carbon, Gen 5, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH
  • Fork
    SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
  • Headset
    Integrated, 1-1/8" - 1-1/4"

Drivetrain

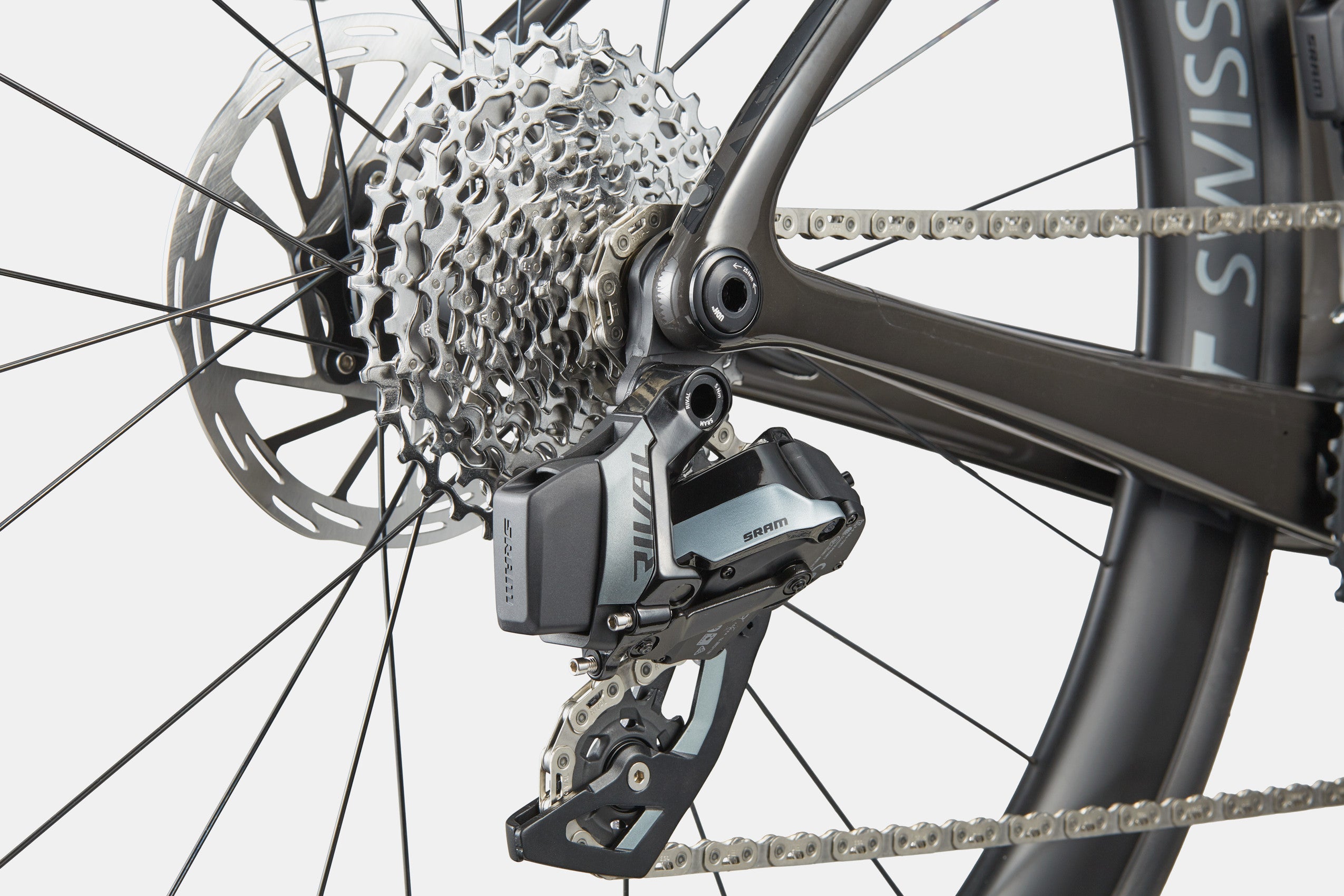

  • Rear Derailleur
    SRAM Rival AXS, 12-speed
  • Front Derailleur
    SRAM Rival AXS

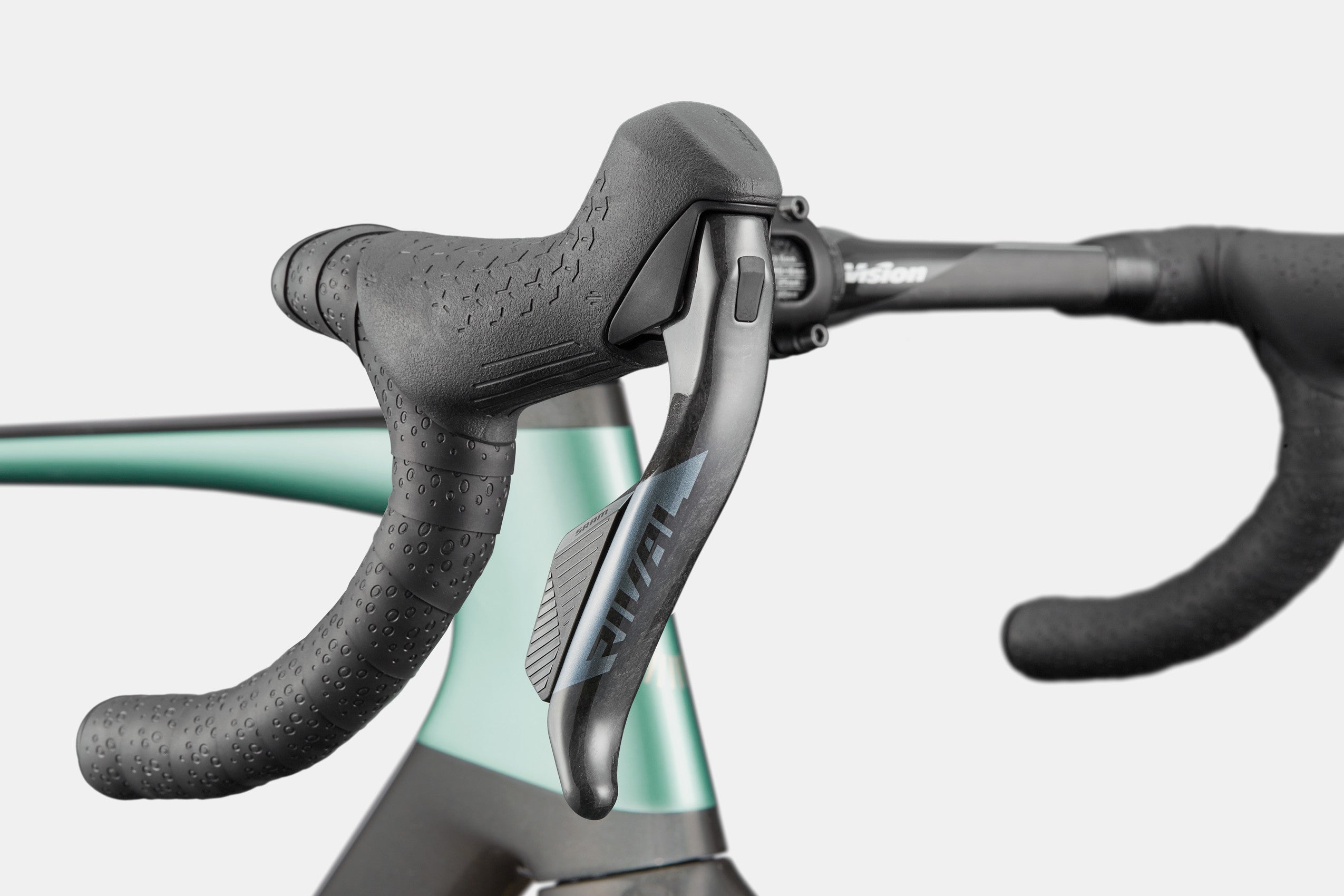

  • Shifters
    SRAM Rival AXS, 2x12-speed
  • Chain
    SRAM Rival, 12-speed

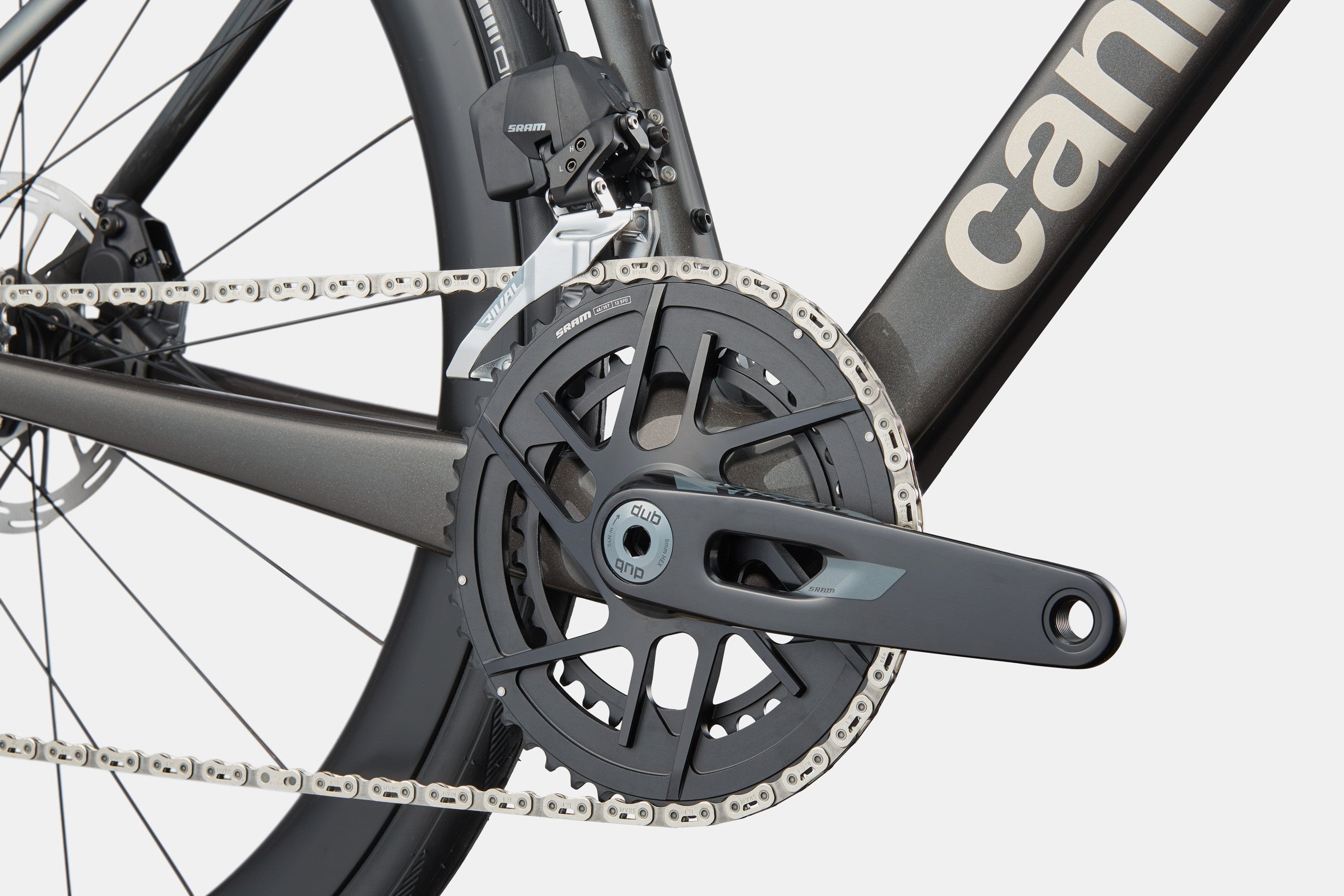

  • Crank
    SRAM Rival AXS, 48/35: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)
  • Rear Cogs
    SRAM Rival XG-1250, 10-36, 12-speed
  • Bottom Bracket
    SRAM DUB BSA

Brakes

  • Brakes
    SRAM Rival AXS hydraulic disc, 160/160mm PaceLine centerlock rotors
  • Brake Levers
    SRAM Rival AXS hydraulic disc

Wheels

  • Rims
    DT Swiss ERC LOG 45, carbon, 22mm inner width, 45mm depth, 24h, tubeless ready
  • Spokes
    DT Swiss Competition
  • Tire Size
    28
  • Wheel Size
    700c
  • Hubs
    (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock
  • Tires
    Schwalbe One TLR, 700x28c, tubeless ready (note: some bikes may ship with 30c tires due to regional availability)

Components

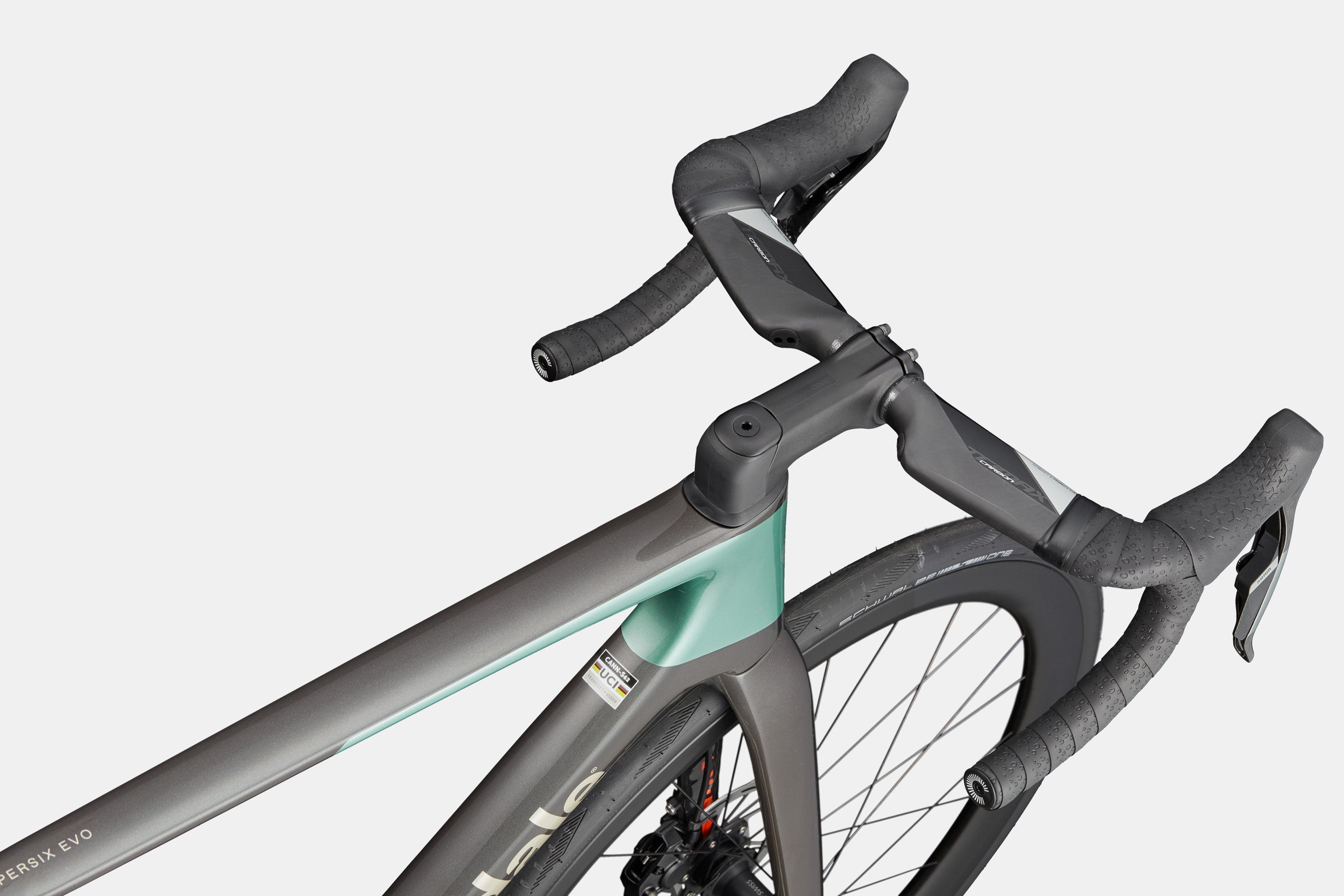

  • Handlebar
    Vision Trimax Carbon Aero: 380mm (44-56), 400mm (58-61)
  • Stem
    Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm)
  • Grips
    Cannondale Bar Tape, 3.5mm
  • Saddle
    Fizik Vento Antares R7, 140mm
  • Seatpost
    Cannondale C1 Aero 40 Carbon V2, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm)

Extra

  • Extra 1
    Tubeless valves, SRAM AXS charger, Conceal Stem accessory/computer mount (Garmin/Wahoo)
