Details

• Platform

  Scalpel
• Model Name

  Scalpel LAB71
• Model Code

  C24103U

Frameset

• Frame

  Scalpel LAB71, Series 0 Carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5" headtube with 1-1/8" upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc – 160mm native
• Fork

  Lefty Ocho 120 Carbon, 120mm, Chamber Damper, OppO Spring System, tapered steerer, 50mm offset, TwistLoc Ultimate remote dual lockout
• Headset

  Acros ICR

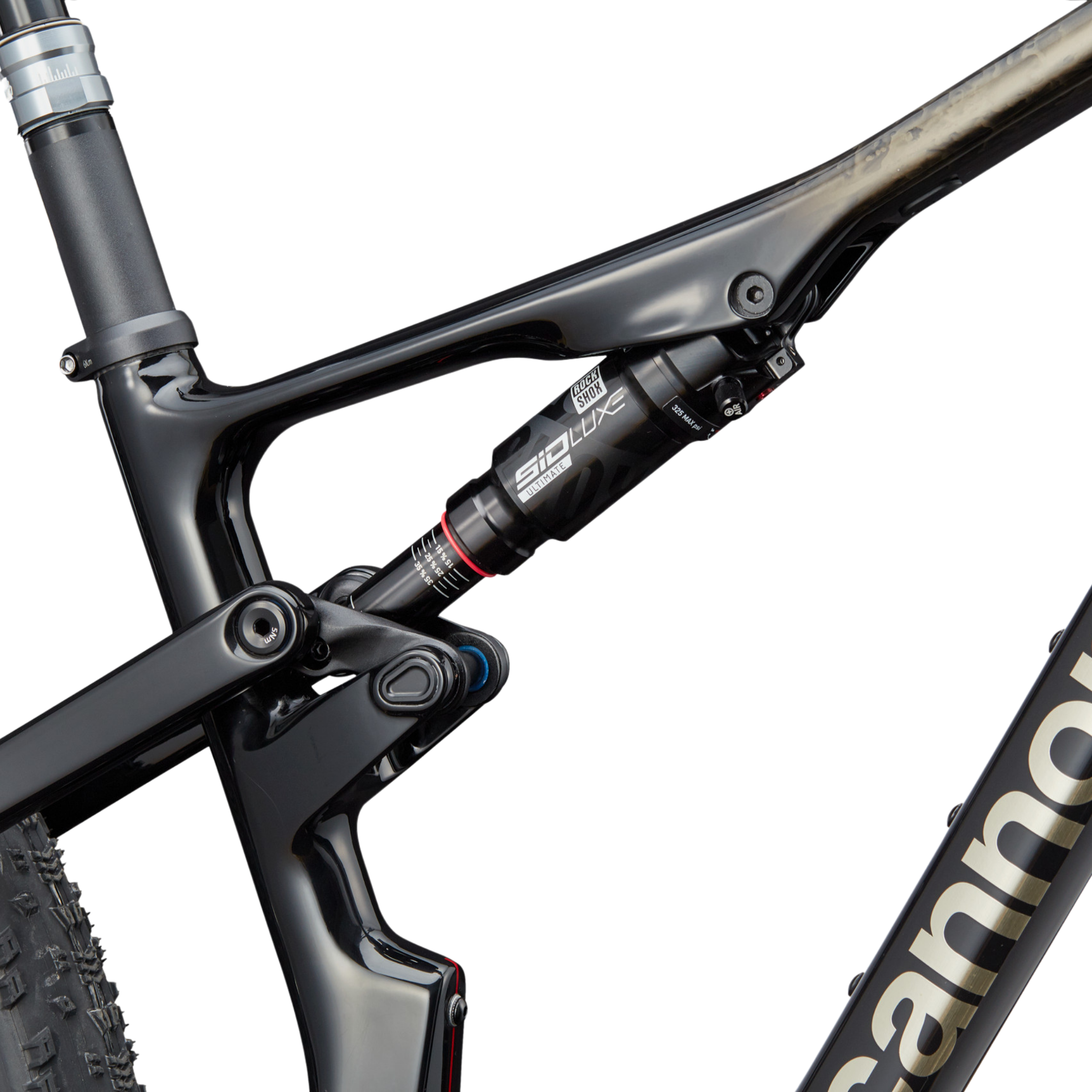

• Rear Shock

  RockShox SIDLuxe Ultimate, 2-Pos mode adjust, adjustable rebound, 190x45, TwistLoc Ultimate remote dual lockout

Drivetrain

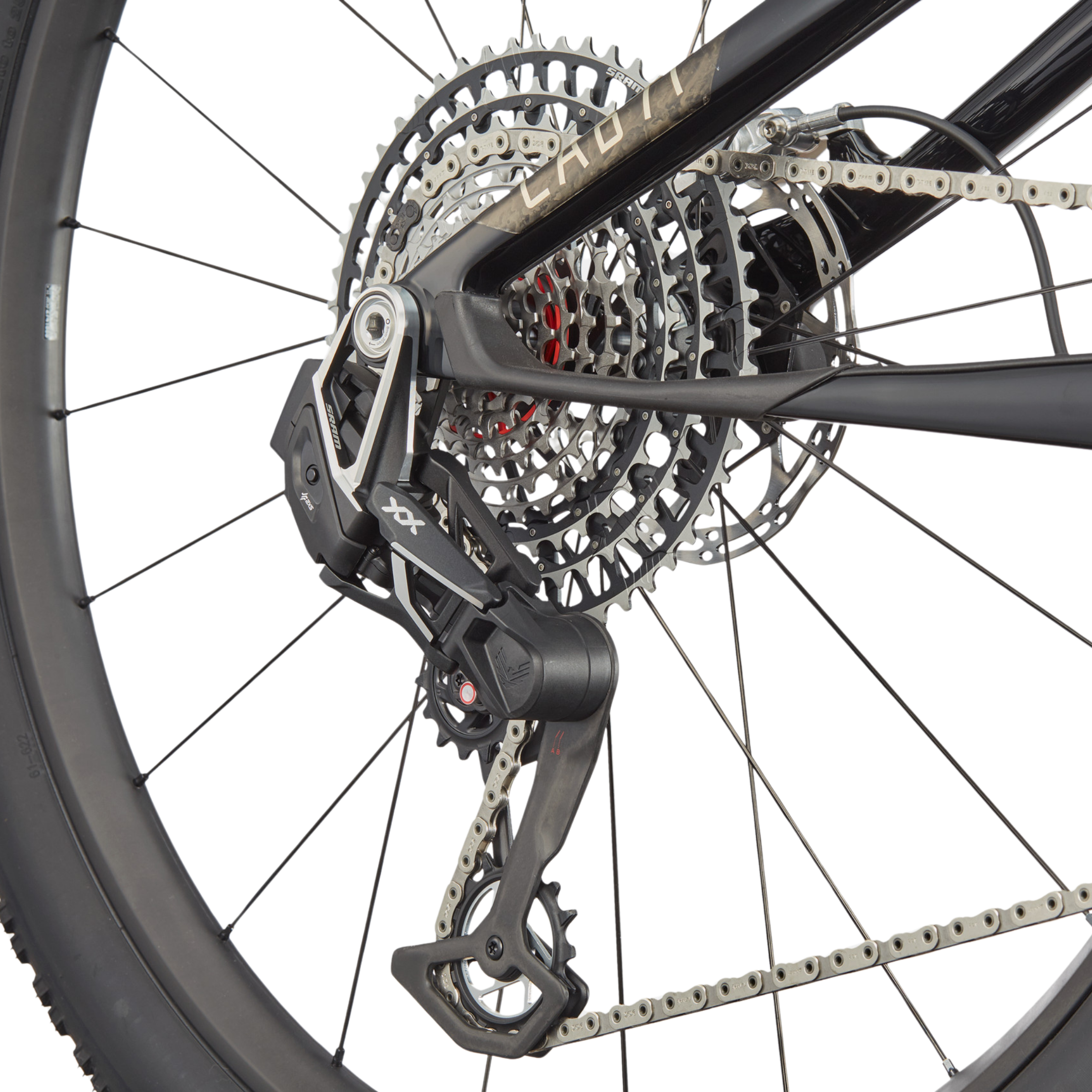

• Rear Derailleur

  SRAM XX SL Eagle AXS, T-Type
• Shifters

  SRAM AXS T-Type Ultimate Pod Controller
• Chain

  SRAM XX SL, T-Type, 12-speed

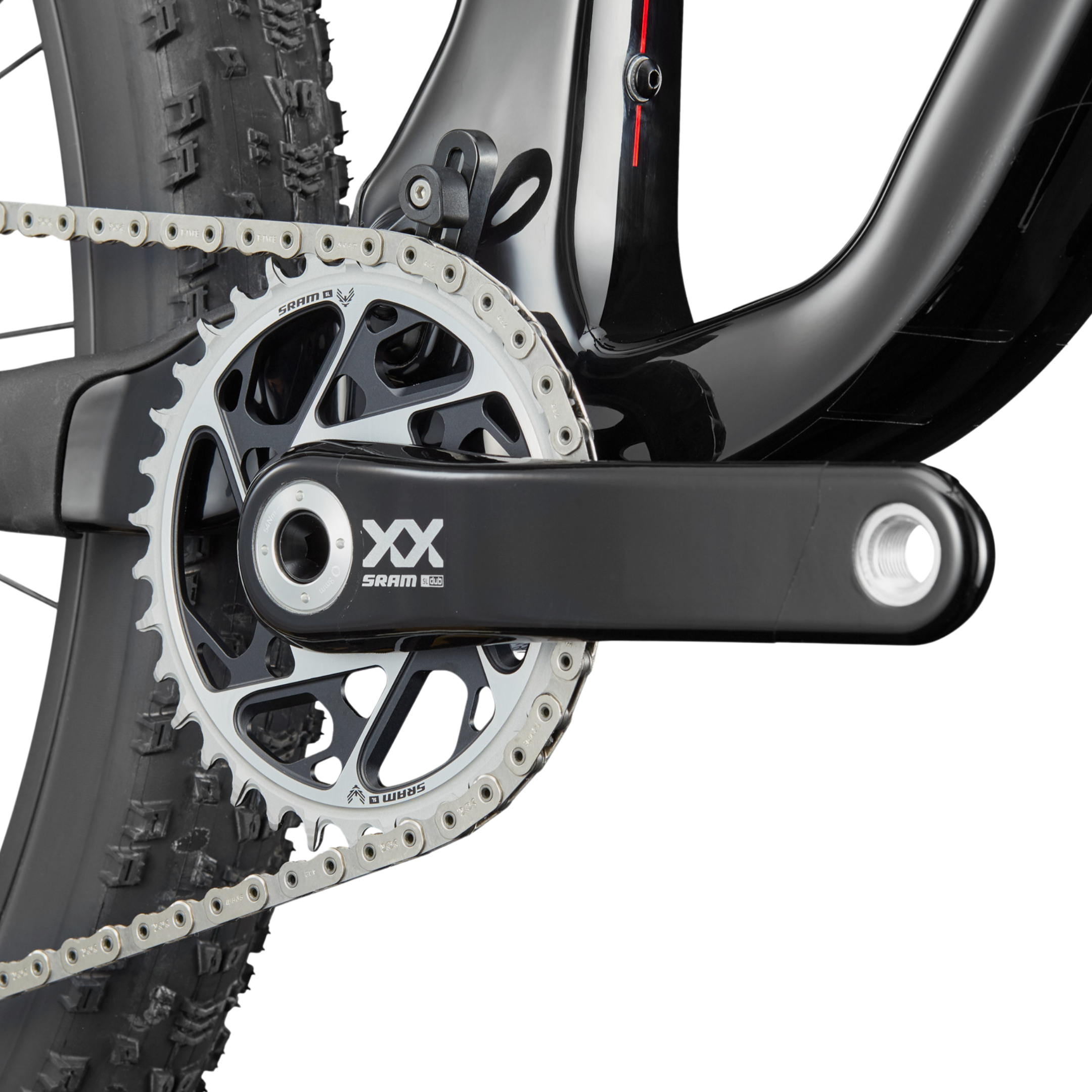

• Crank

  SRAM XX SL T-Type, 34T
• Rear Cogs

  SRAM XX SL Eagle, 10-52, T-Type, 12-speed
• Bottom Bracket

  SRAM DUB BSA 73mm MTB, Ceramic

Brakes

• Brakes

  SRAM Level Ultimate Stealth, 4-piston hydraulic disc, SRAM CLX rotors, 180mm 6-bolt (F) /160mm centerlock (R)
• Brake Levers

  SRAM Level Ultimate Stealth

Wheels

• Rims

  DT Swiss XRC 1200 SPLINE, carbon, 30mm inner width, hookless, TSS tubeless ready
• Spokes

  DT Swiss Aerolite straight pull (F) / Aerolite & Competition straight pull (R)
• Tire Size

  2.4
• Wheel Size

  29
• Hubs

  DT Swiss Lefty, 6-bolt (F) / DT Swiss 180 Ratchet EXP 36, centerlock, XD driver (R)
• Tires

  (F) Maxxis Rekon Race WT, 29x2.4", EXO Protection, tubeless ready / (R) Maxxis Aspen WT, 29x2.4", EXO Protection, tubeless ready

Components

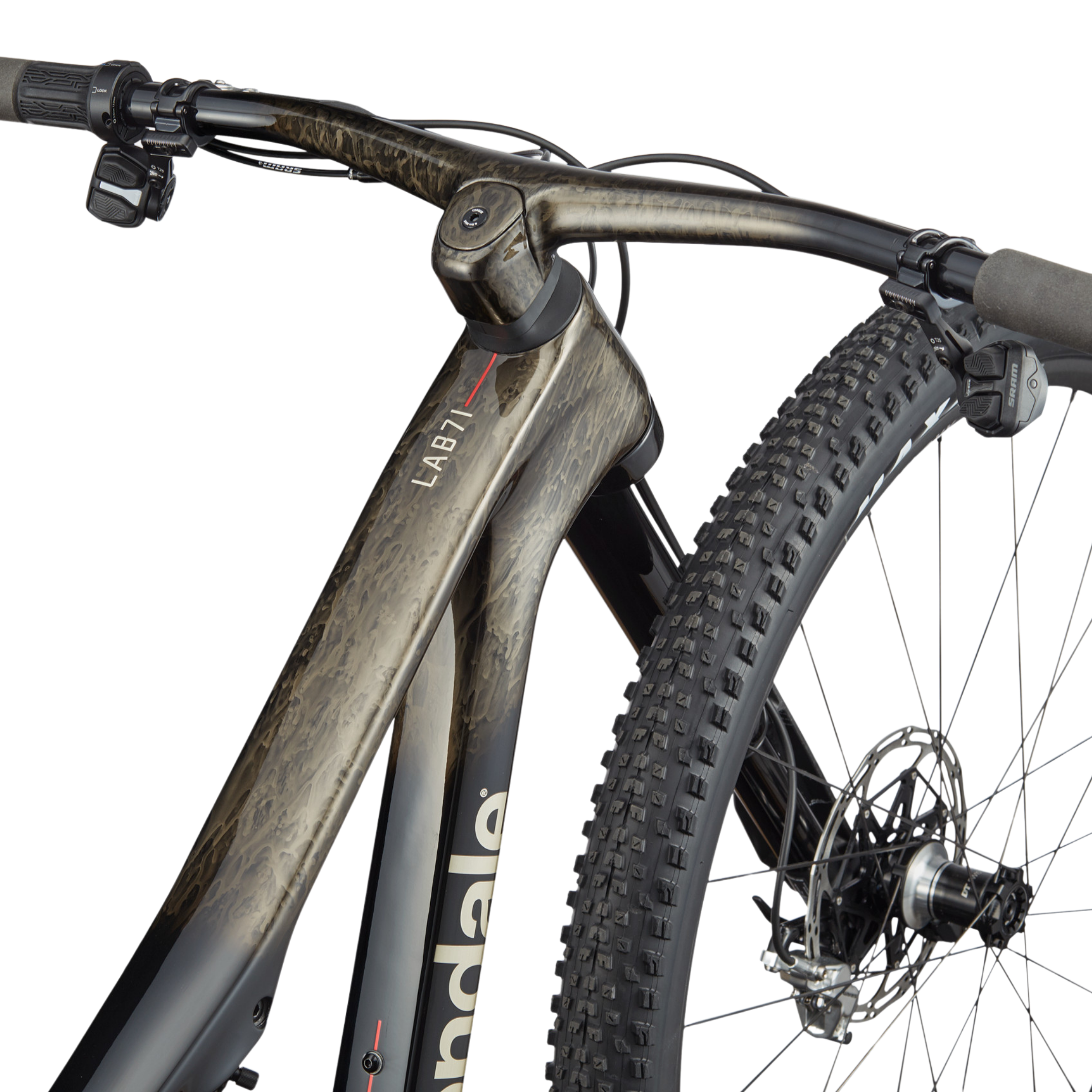

• Handlebar

  SystemBar XC-One Flat, carbon, integrated bar/stem, internal cable routing, 5° upsweep, 8° backsweep, 760mm width, -6° stem, 1-1/8" clamp
• Stem

  SystemBar XC-One Flat, carbon integrated bar/stem
• Grips

  RockShox Smooth Silicone

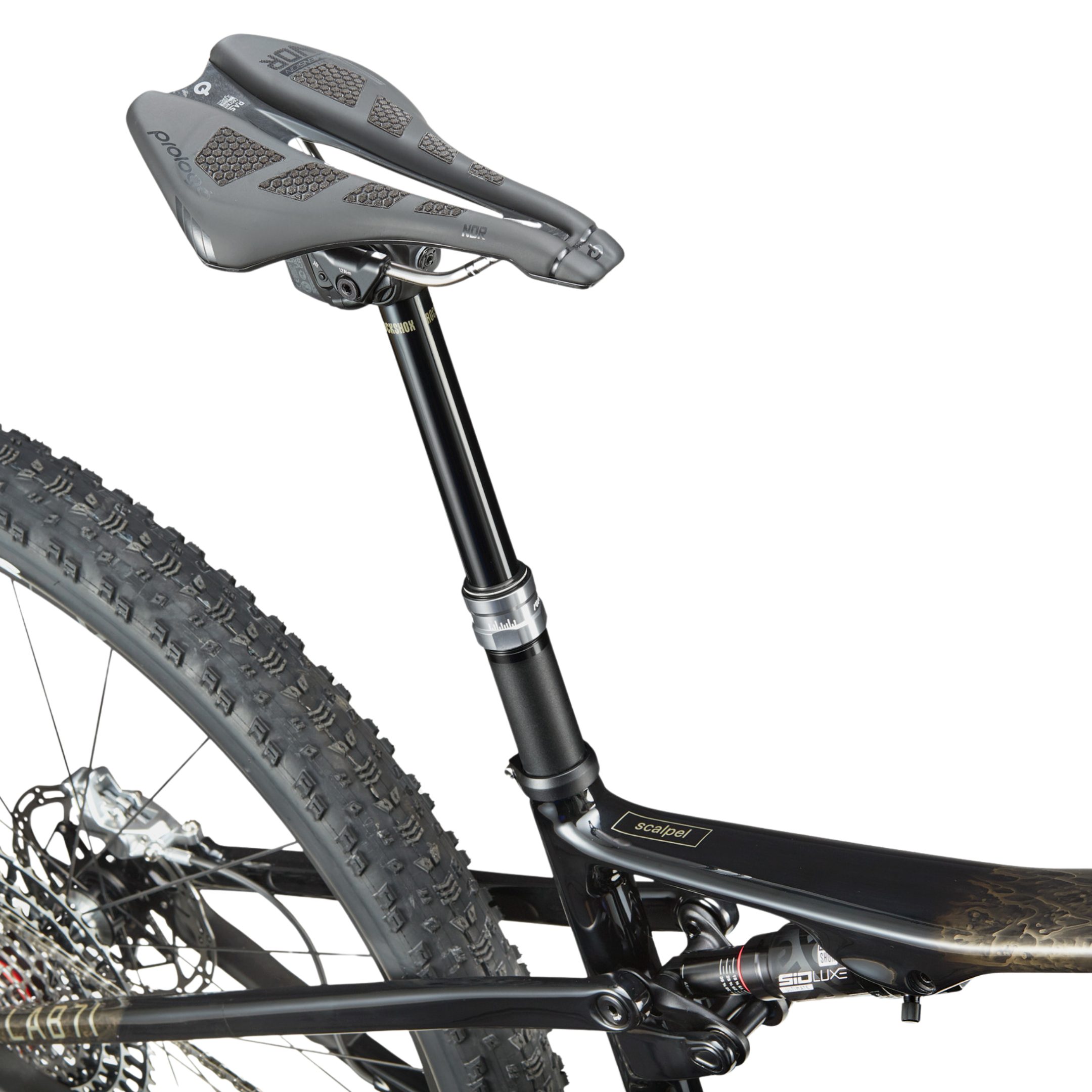

• Saddle

  Prologo Dimension NDR, Tirox rails
• Seatpost

  RockShox Reverb AXS, 31.6, 125mm (S), 150mm (M-XL)
