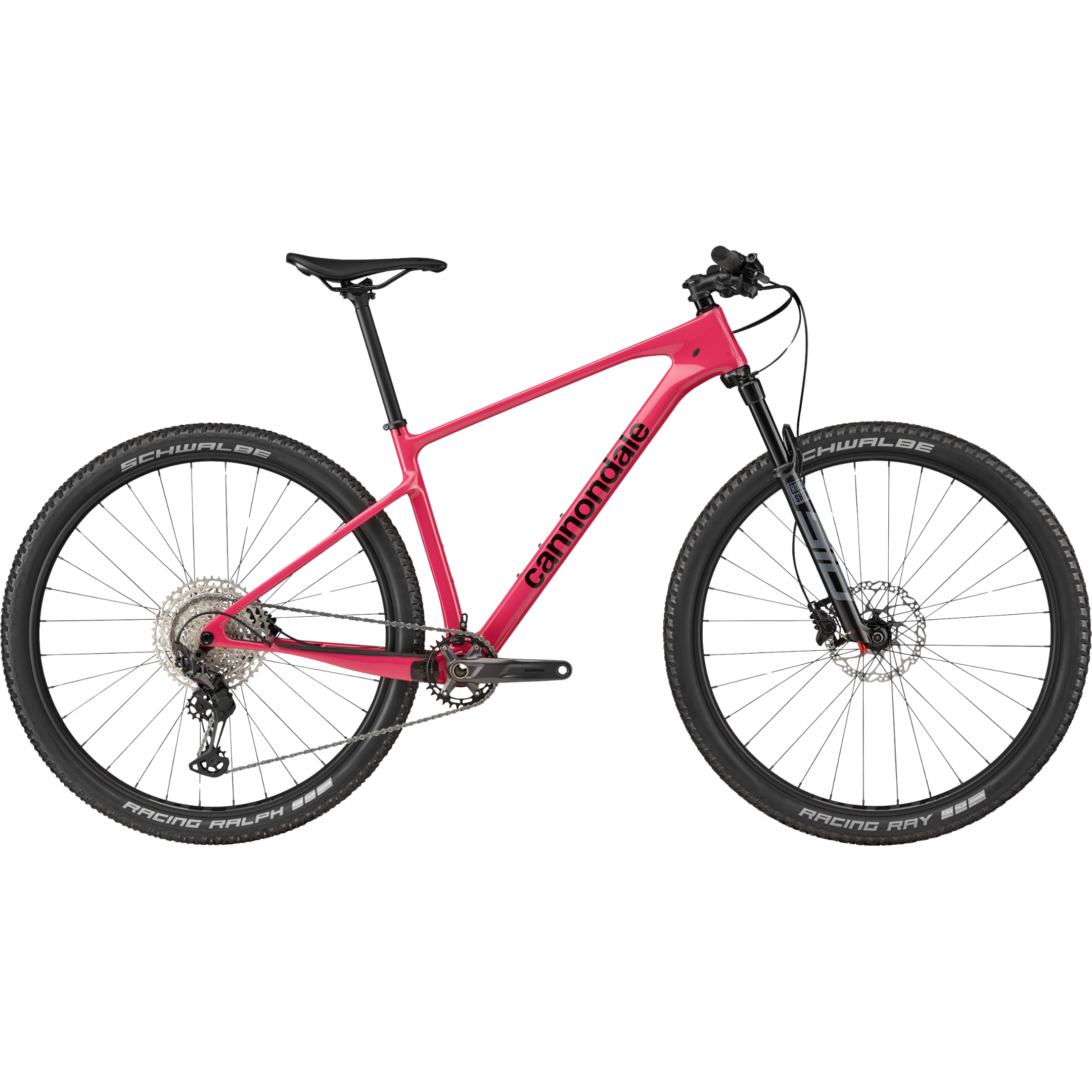

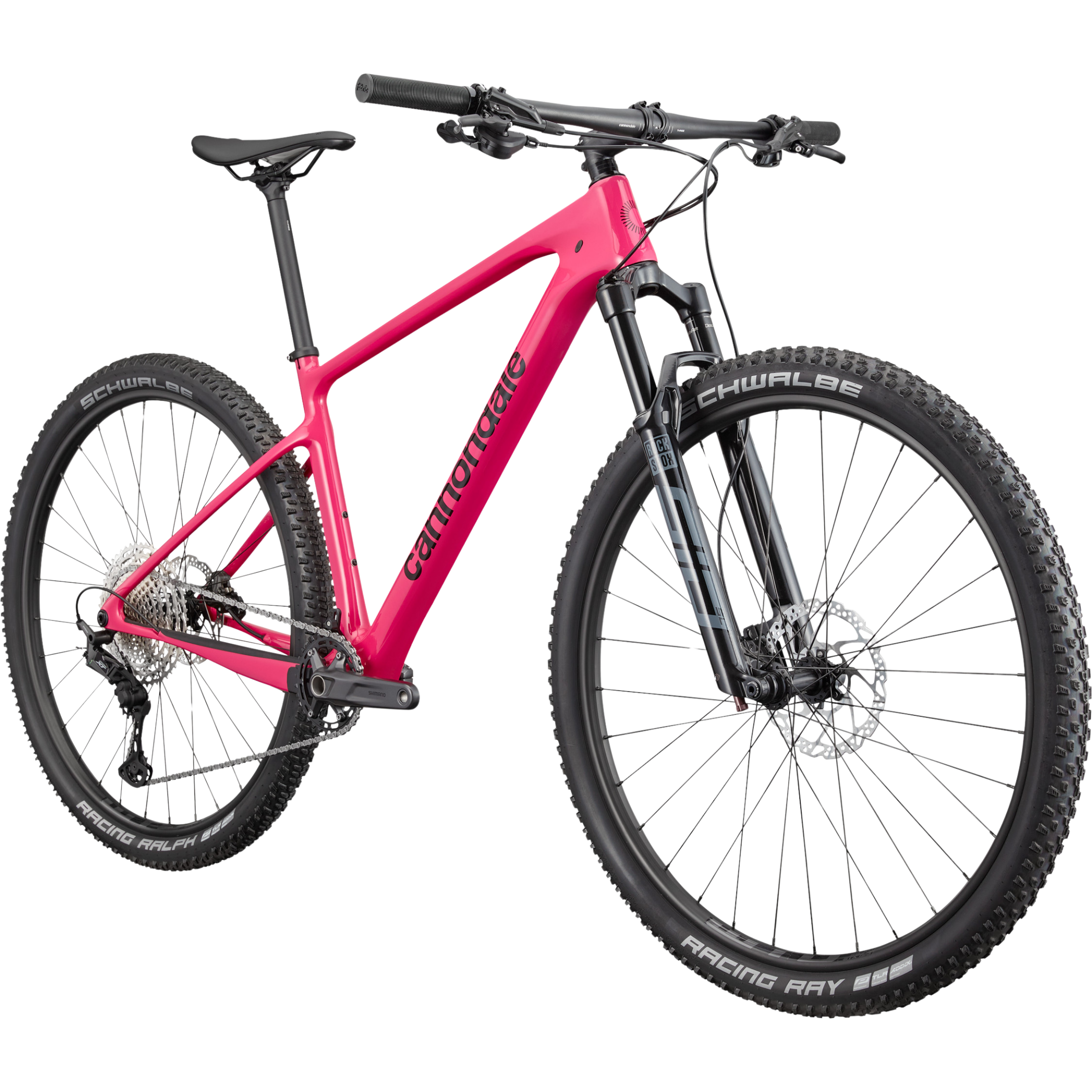

Cannondale Scalpel HT Carbon 4 - XL - Orchid

R 44,995.00
Size Chart





Cannondale Bicycle Sizing Guide

Bike Size Rider Height Range
XSmall 148 - 155 cm
Small 154 - 165 cm
Medium 162 - 175 cm
Large 172 - 182 cm
XLarge 180 - 195 cm

Note: The provided sizing chart is a general guideline. Please consult with a professional bike fitter for the best fit.
×

Product Enquiry

Details

  • Platform
    Scalpel HT
  • Model Name
    Scalpel HT Carbon 4
  • Model Code
    C25401U

Frameset

  • Frame
    Scalpel HT Carbon, Proportional Response Design, PF30-83, tapered head tube, 55mm chainline, Speed Release 12mm thru axle w/UDH hanger
  • Fork
    RockShox SID SL , 100mm, Debonair, remote lockout, 15x110mm thru-axle, tapered steerer, 44mm offset
  • Headset
    Integrated, 1-1/8 to 1.5", sealed angular contact bearings

Drivetrain

  • Rear Derailleur

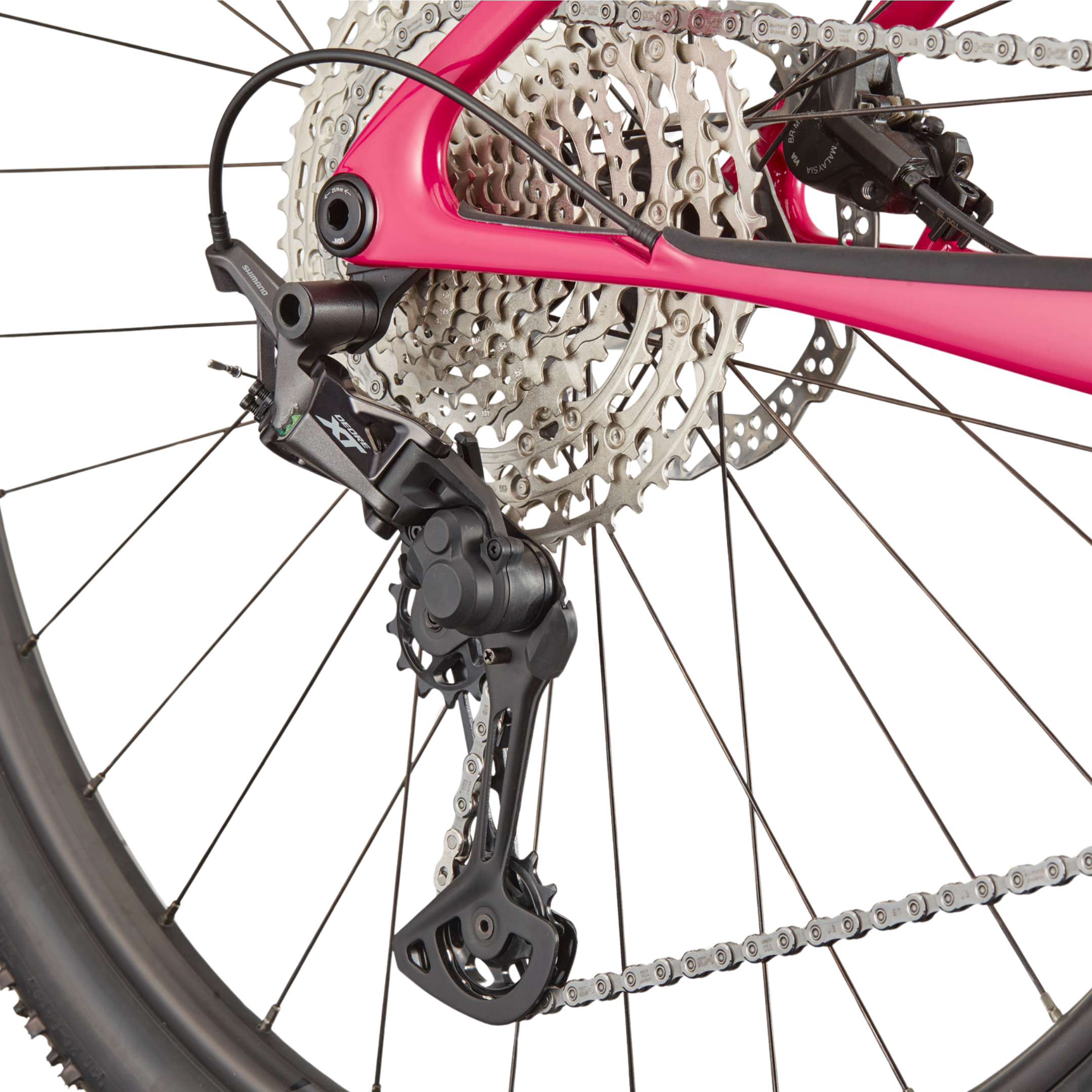

    Shimano XT
  • Shifters
    Shimano Deore M6100, 12-speed
  • Chain
    Shimano Deore, 12-speed
  • Crank
    Shimano M5121, 30T, 55mm chainline
  • Rear Cogs
    Shimano Deore M6100, 10-51, 12-speed
  • Bottom Bracket
    Cannondale Alloy PressFit 30 - 24mm

Brakes

  • Brakes
    Shimano MT501 hydraulic disc, 160/160mm RT54 rotors
  • Brake Levers
    Shimano MT500 hydraulic disc

Wheels

  • Rims
    WTB STX i23, 32h, tubeless ready
  • Spokes
    DT Swiss Champion 2.0
  • Tire Size
    2.25
  • Wheel Size
    29
  • Hubs
    (F) Shimano MT410, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
  • Tires
    (F) Schwalbe Racing Ray EVO, 29x2.25", Twinskin, tubeless ready, (R) Schwalbe Racing Ralph EVO, 29x2.25", SnakeSkin, Addix compound, tubeless ready
  • Front Tire
    Schwalbe Racing Ray EVO, 29x2.25", Twinskin, tubeless ready
  • Rear Tire
    Schwalbe Racing Ray EVO, 29x2.25", Twinskin, tubeless ready

Components

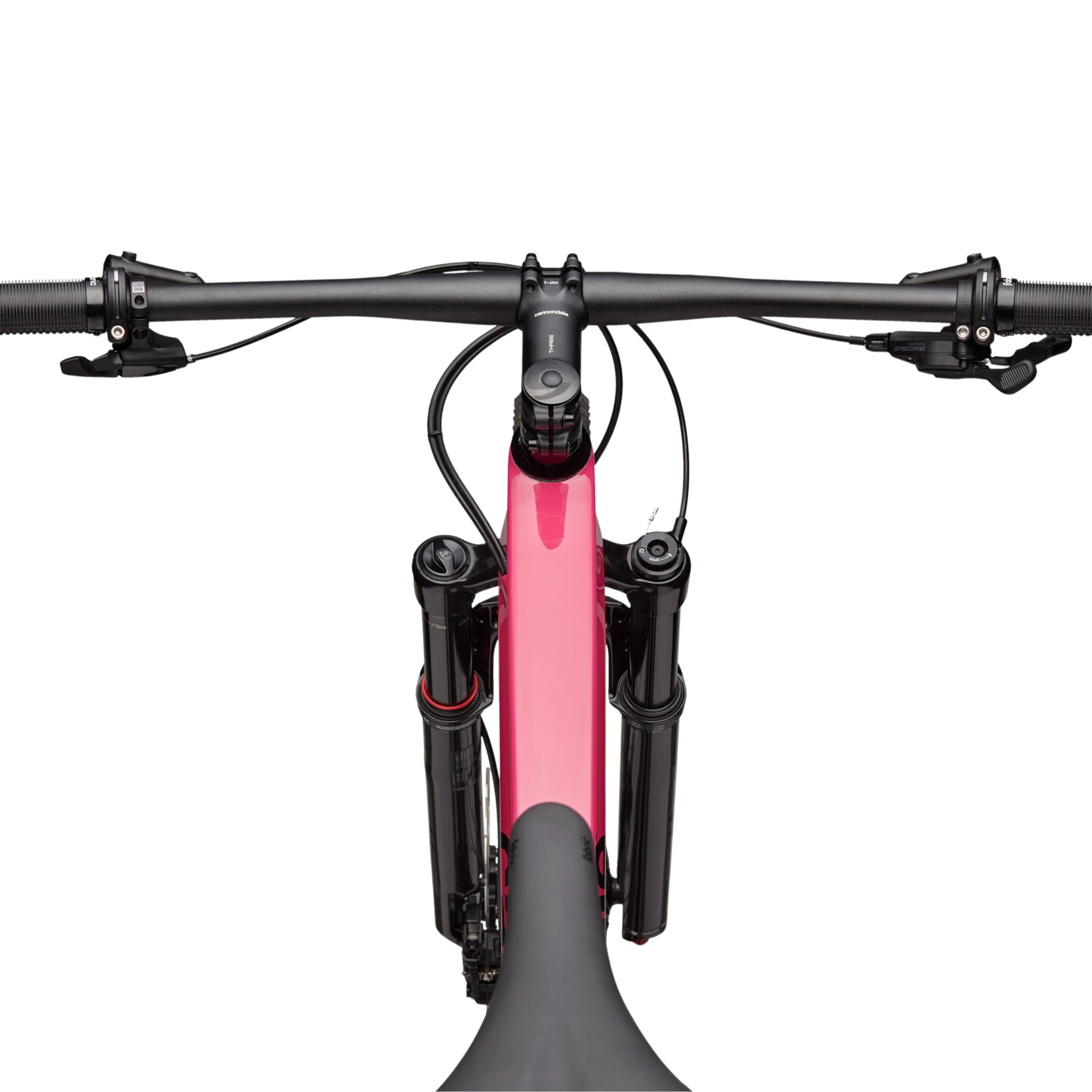

  • Handlebar
    Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm
  • Stem
    Cannondale 2, 6061 Alloy, 31.8, 7°
  • Grips
    Cannondale TrailShroom
  • Saddle
    Cannondale Scoop Shallow Sport, steel rails
  • Seatpost
    C3 Alloy, 27.2x400mm

Please note that, based on component availability and other factors, specifications are subject to change without notice.
