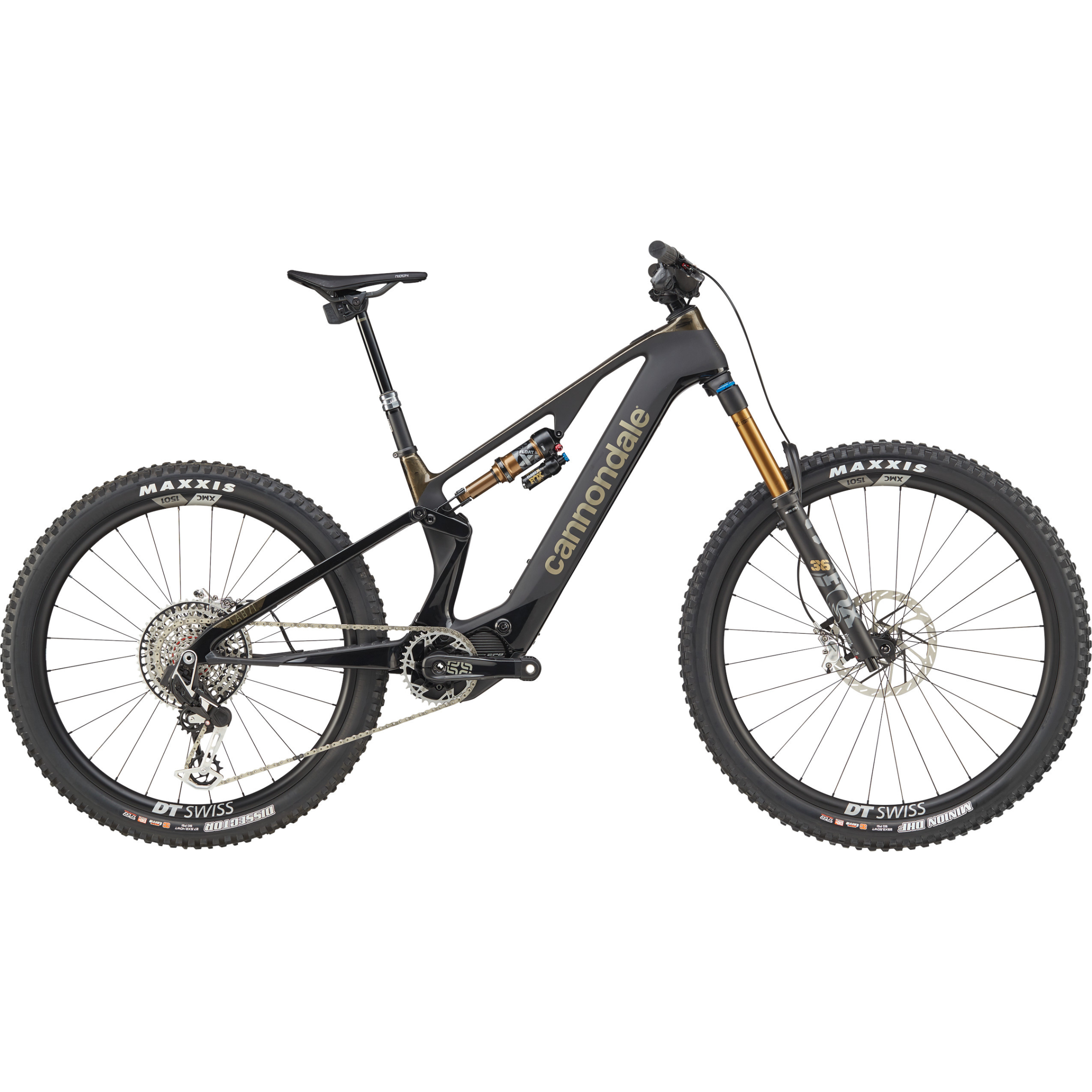

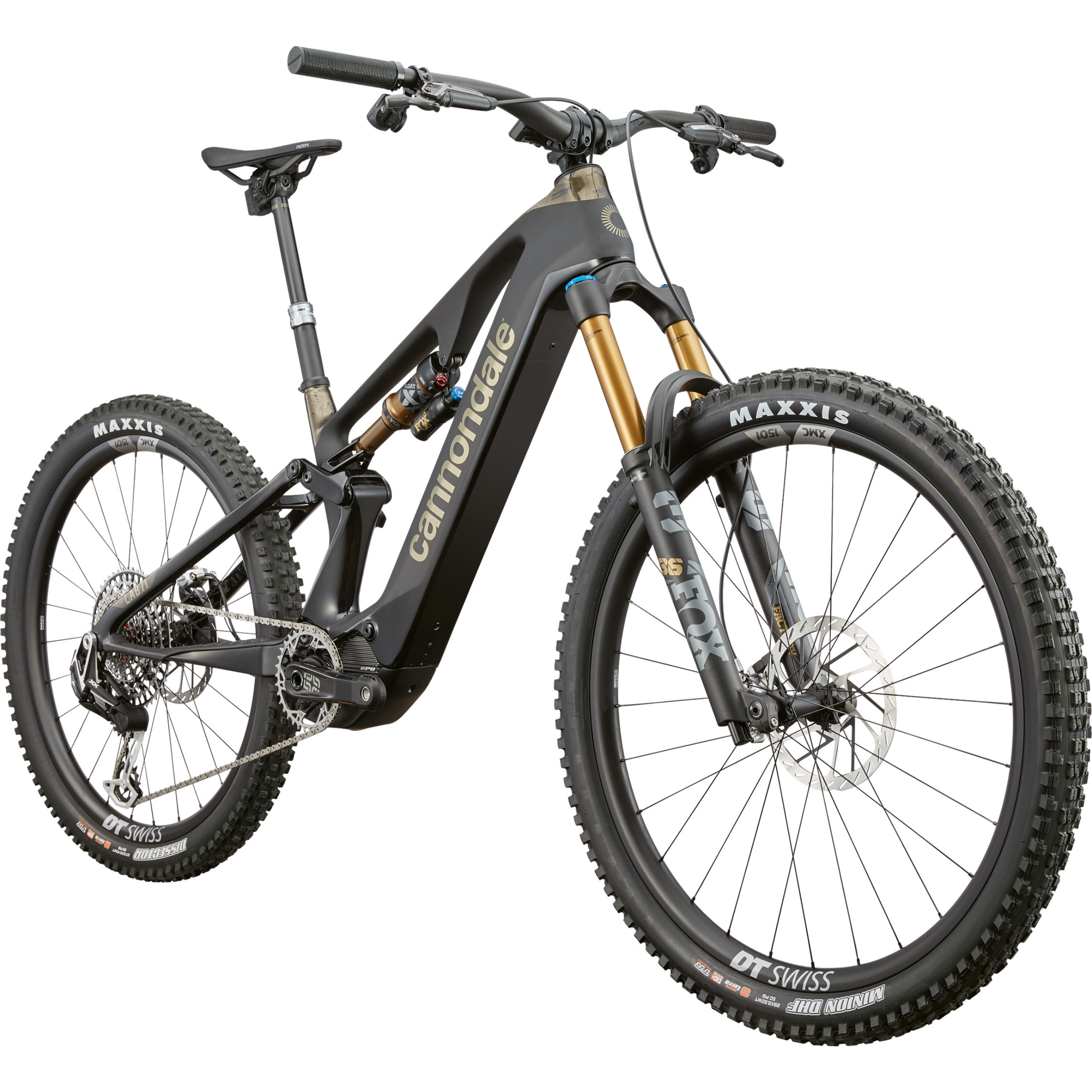

Cannondale Moterra SL LAB71

R 229,995.00
Size
Color
Size Chart





Cannondale Bicycle Sizing Guide

Bike Size Rider Height Range
XSmall 148 - 155 cm
Small 154 - 165 cm
Medium 162 - 175 cm
Large 172 - 182 cm
XLarge 180 - 195 cm

Note: The provided sizing chart is a general guideline. Please consult with a professional bike fitter for the best fit.
×

Product Enquiry

Details

  • Platform
    Moterra SL
  • Model Name
    Moterra SL LAB71
  • Model Code
    C65444U

Frameset

  • Frame
    LAB71 Moterra SL Carbon, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, angle adjust headset
  • Fork
    Fox Float Factory 36, 160mm travel, Grip2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
  • Headset
    Acros Adjustable Angle (1.2°)

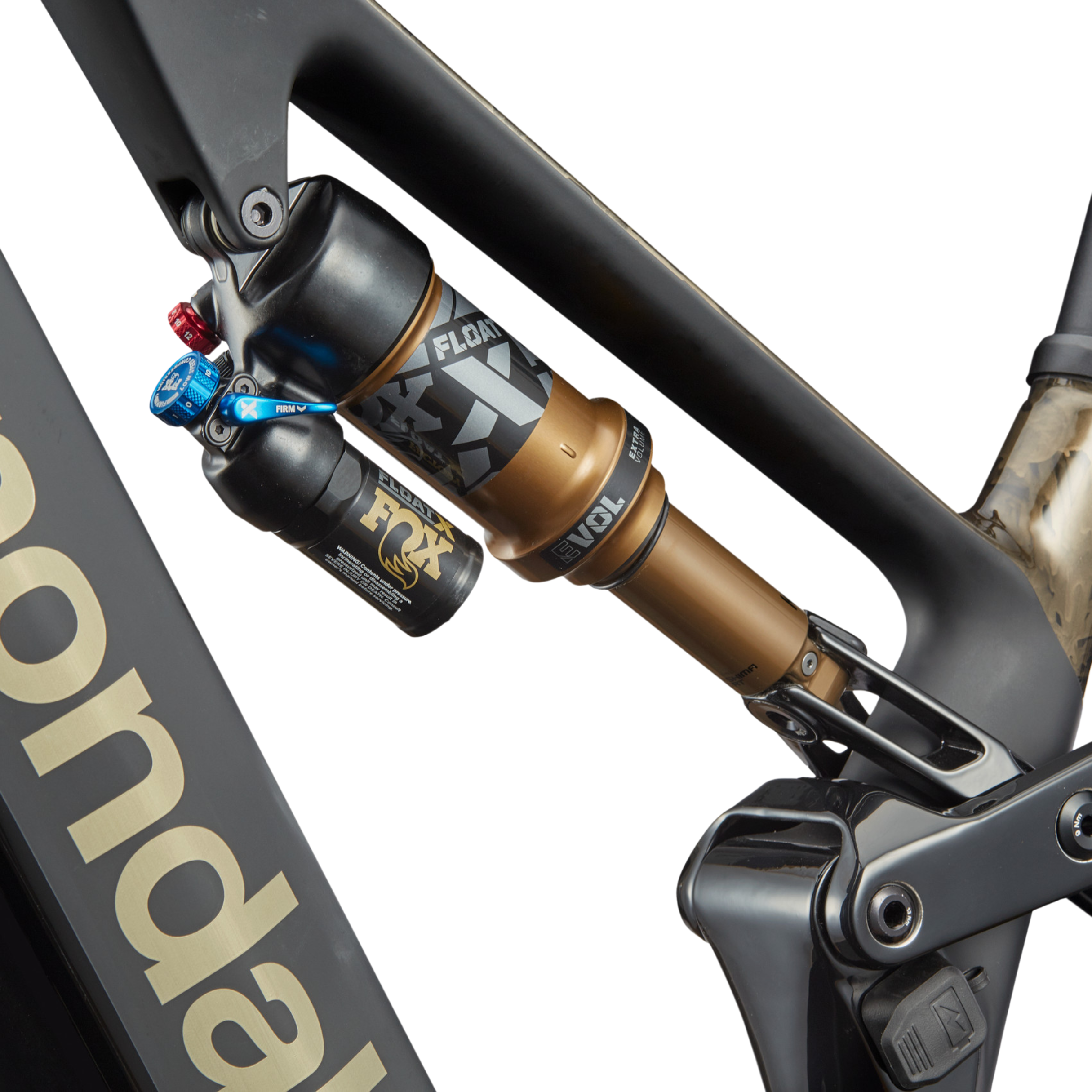

  • Rear Shock
    Fox Float X Factory, 2 pos adj, EVOL LV, 210x55mm

E-System

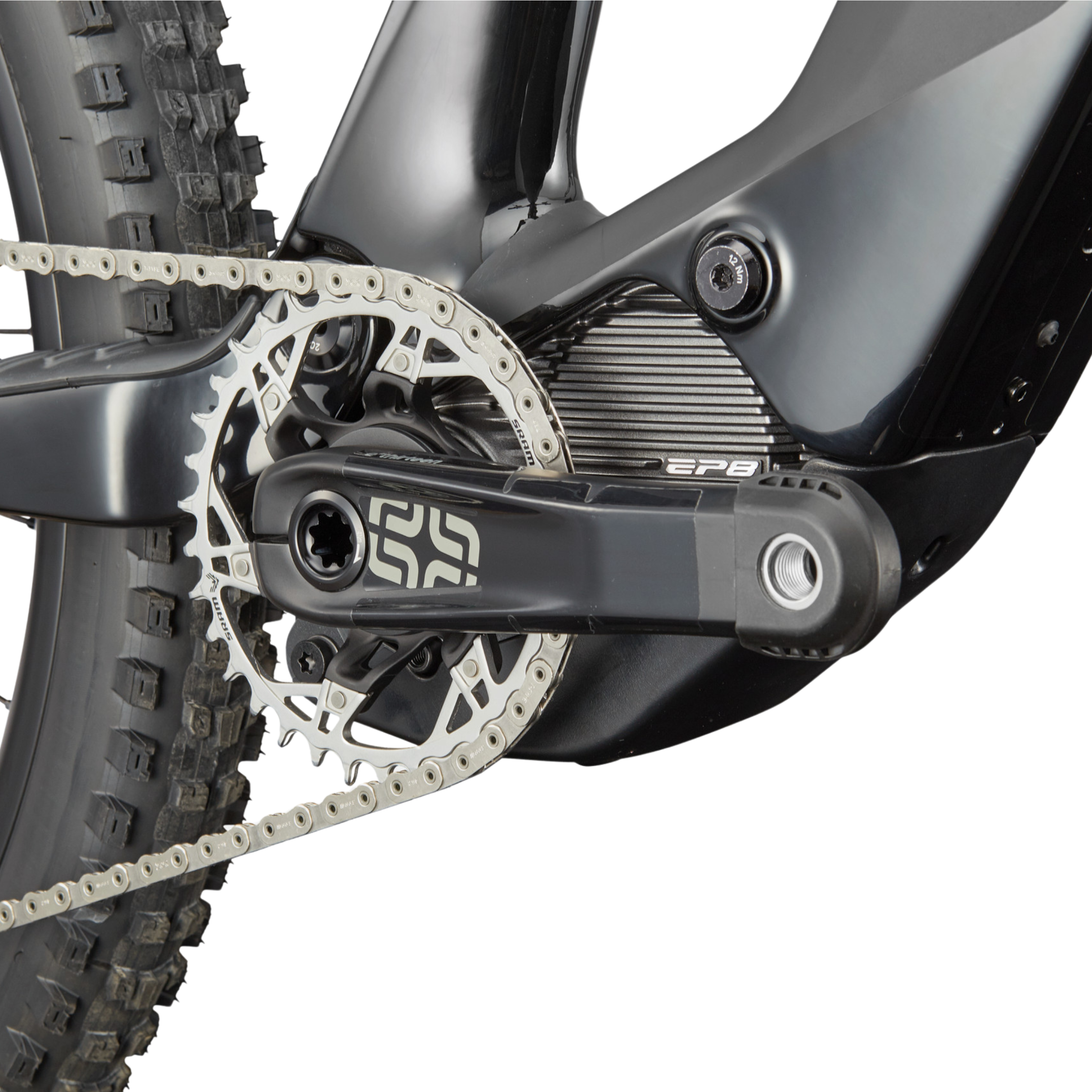

  • Drive Unit
    Shimano EP801, 85Nm, Custom Tuned, Walk, Eco, Trail 1, Trail 2, Boost Modes
  • Battery
    Custom 601Wh battery
  • Charger
    Custom 4A
  • Display
    Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible
  • Certifications
    UL 2849

Drivetrain

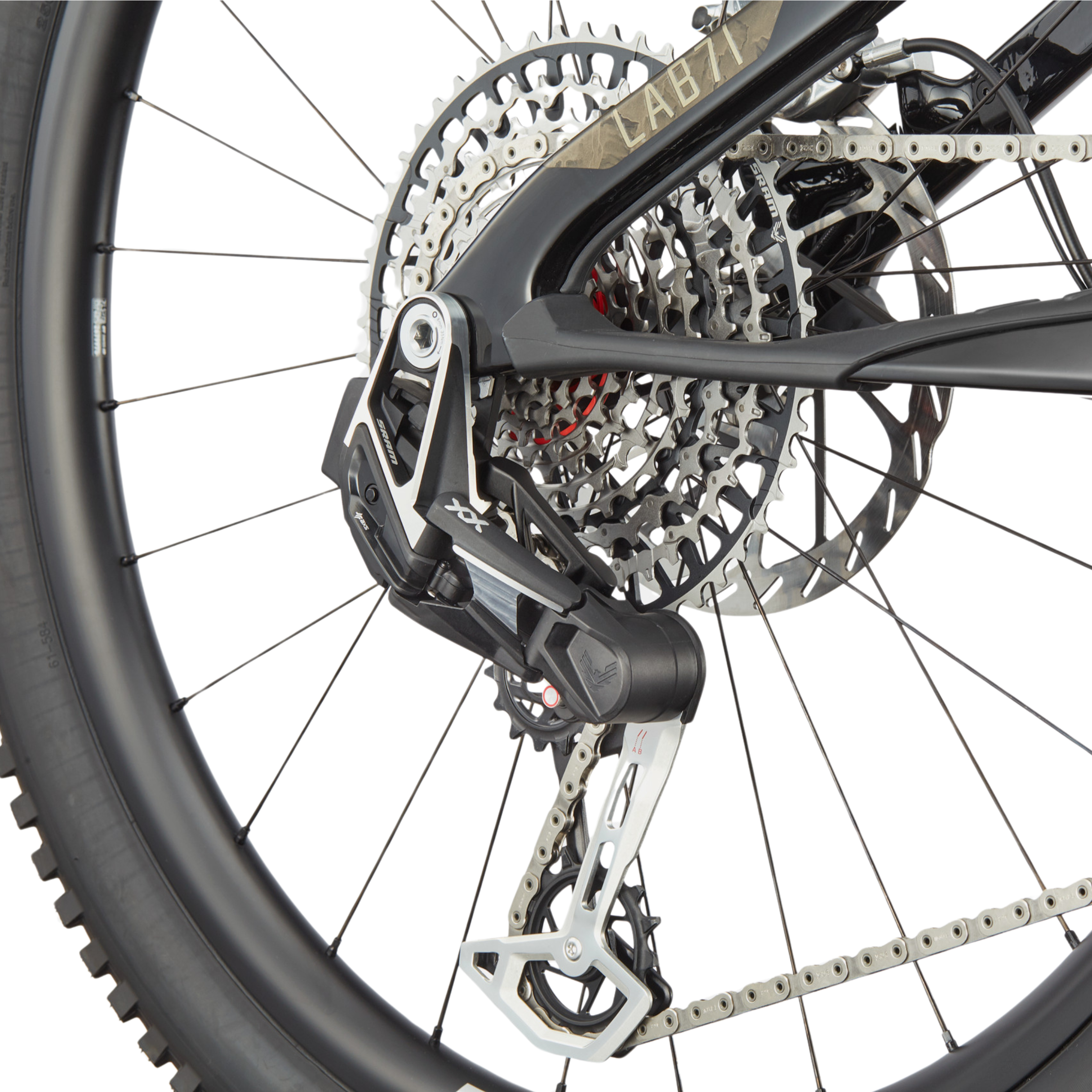

  • Rear Derailleur
    SRAM XX Eagle AXS, T-Type
  • Shifters
    SRAM Eagle AXS T-Type Ultimate Pod Controller
  • Chain
    SRAM XX Eagle, T-type, Flattop
  • Crank
    e*thirteen e*spec Race Carbon - Gen 4, 165mm, 34T
  • Rear Cogs
    SRAM XX Eagle, T-Type, 10-52, 12-speed

Brakes

  • Brakes
    SRAM Code Ultimate Stealth, 4-piston hydraulic disc, 200mm HS2 rotors
  • Brake Levers
    SRAM Code Ultimate Stealth

Wheels

  • Rims
    DT Swiss XMC 1501, carbon, 30mm inner width, hookless, TSS tubeless ready
  • Spokes
    DT Swiss Competition Race
  • Tire Size
    2.5
  • Wheel Size
    29
  • Hubs
    (F) DT Swiss 240, 15x110mm / (R) DT Swiss 240 Ratchet EXP 36, 12x148mm
  • Tires
    (F) Maxxis DHF, 29x2.5 ", 3C, EXO+, tubeless ready / (R) Maxxis Dissector , 27.5x2.4", 3C, EXO+, tubeless ready

Components

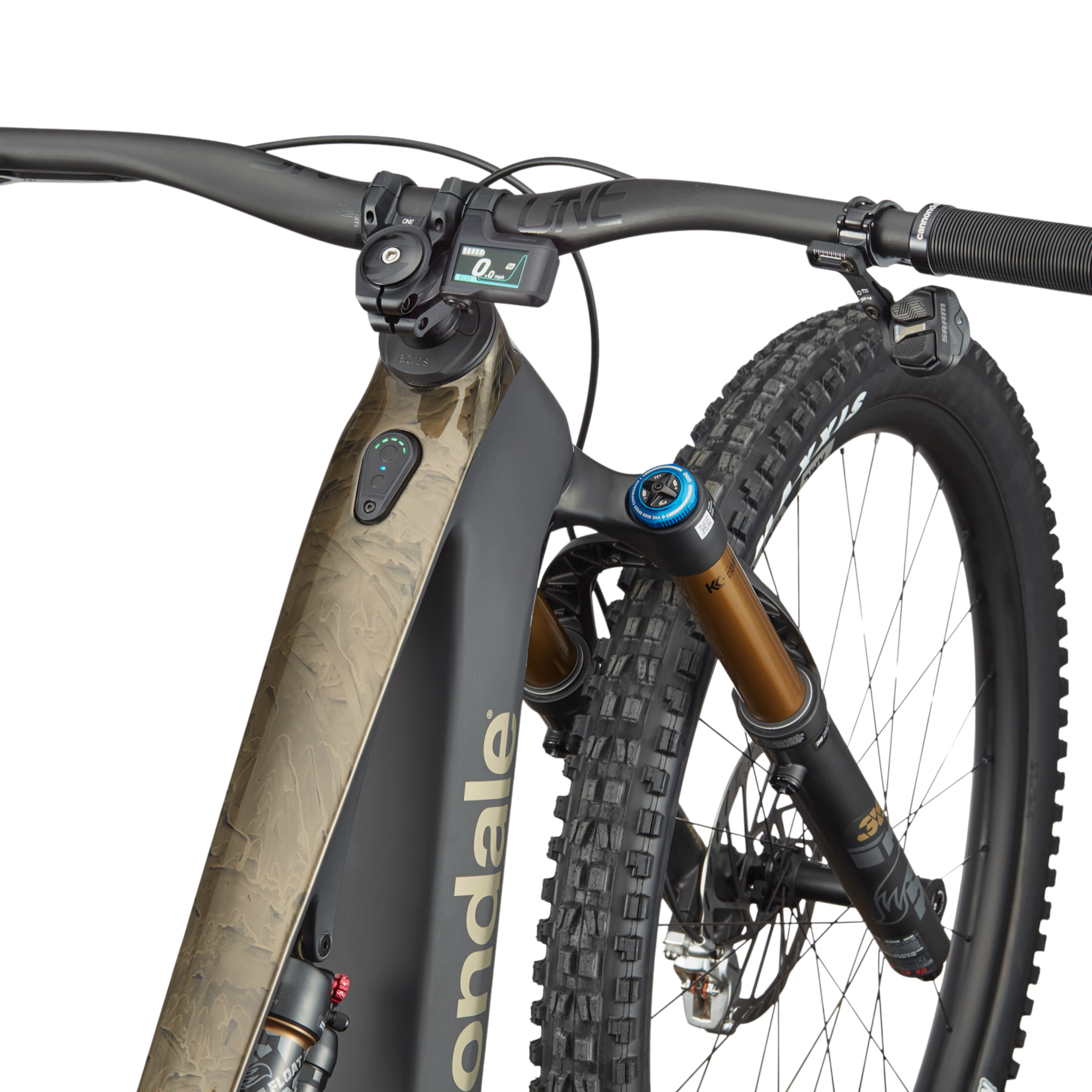

  • Handlebar
    OneUp Carbon Ebar, 35mm clamp, 35mm Rise, 8° sweep, 5° rise, 780mm
  • Stem
    OneUp Stem, 6061 Alloy, 1-1/8", 35mm, 0°
  • Grips
    Cannondale TaperRidge
  • Saddle
    Fizik Terra Ridon X1, 145mm, Wingflex, Carbon Mobius rail 7x10mm
  • Seatpost
    RockShox Reverb AXS, 31.6, 150mm (S), 170mm (M-XL)

Extra

  • Extra 1
    Tubeless valves, SRAM AXS charger
