Details

• Platform

  Moterra SL
• Model Name

  Moterra SL 2
• Model Code

  C65464U

Frameset

• Frame

  Moterra SL Carbon, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, angle adjust headset

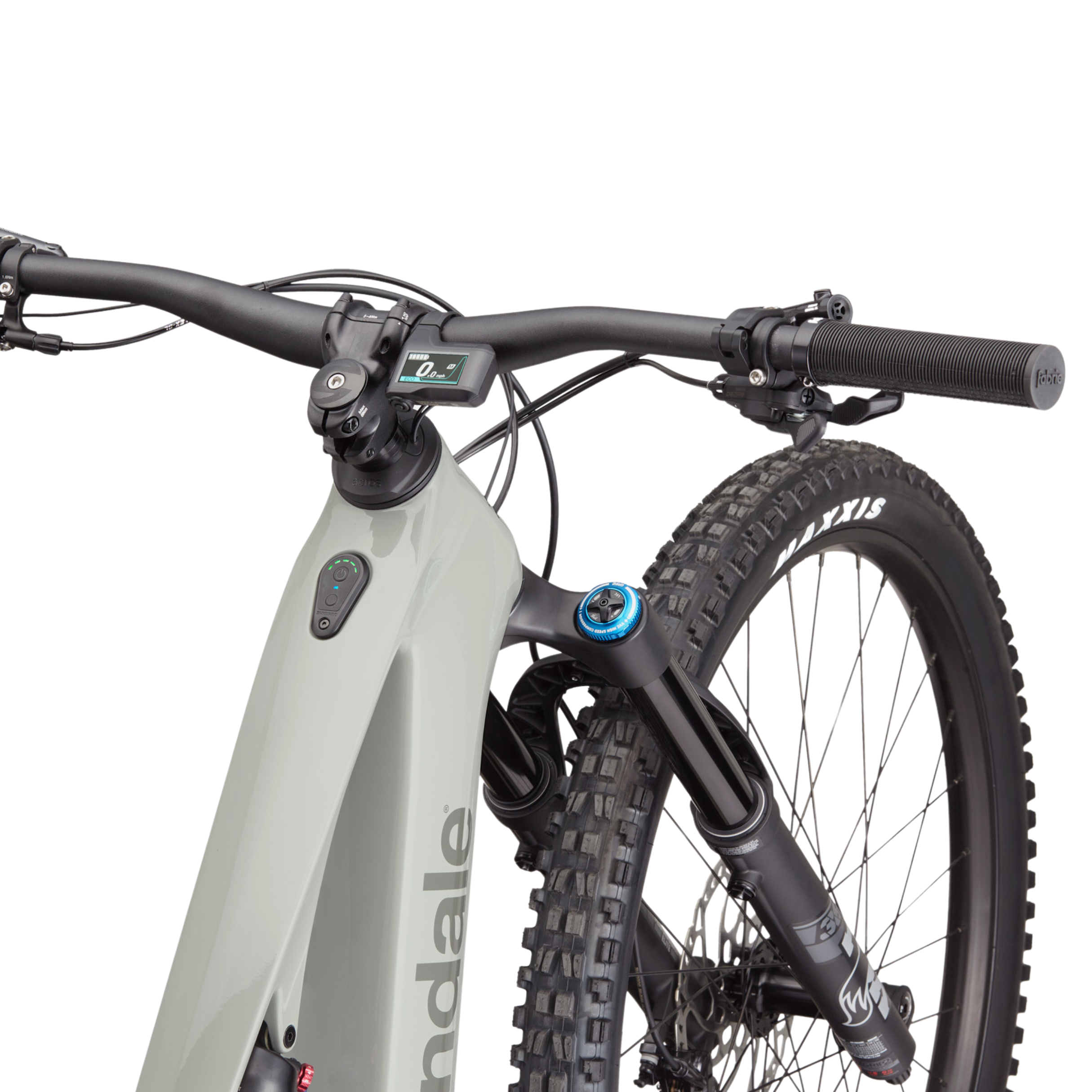

• Fork

  Fox Performance 36, 160mm travel, Grip Damper, 3-position adjust, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
• Headset

  Acros Adjustable Angle (1.2°)

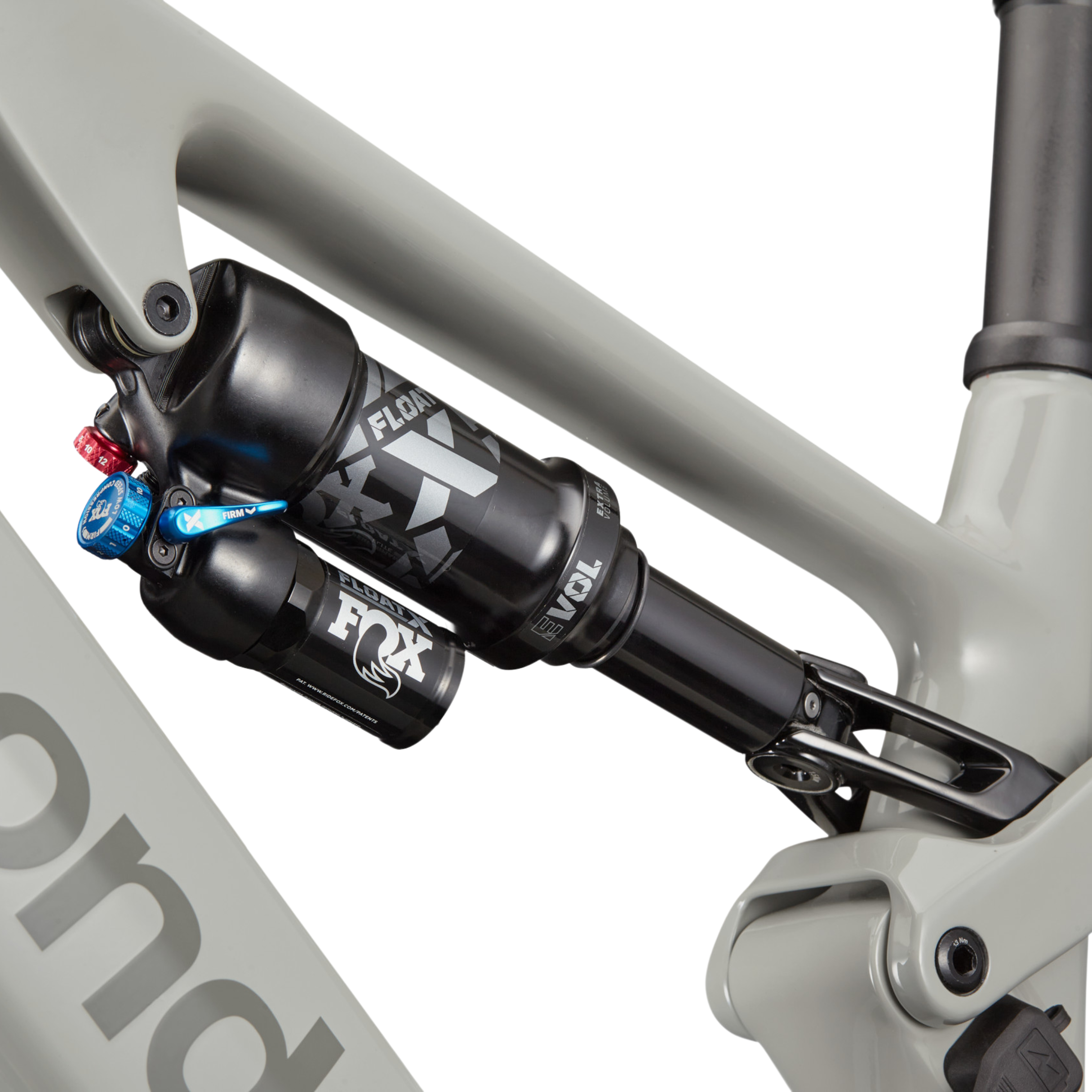

• Rear Shock

  Fox Float X Performance Elite, 2 pos adj, EVOL LV, 210x55mm

E-System

• Drive Unit

  Shimano EP801, 85Nm, Custom Tuned, Eco, Trail 1, Trail 2, Boost Modes
• Battery

  Custom 601Wh battery
• Charger

  Custom 4A
• Display

  Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible
• Certifications

  UL 2849

Drivetrain

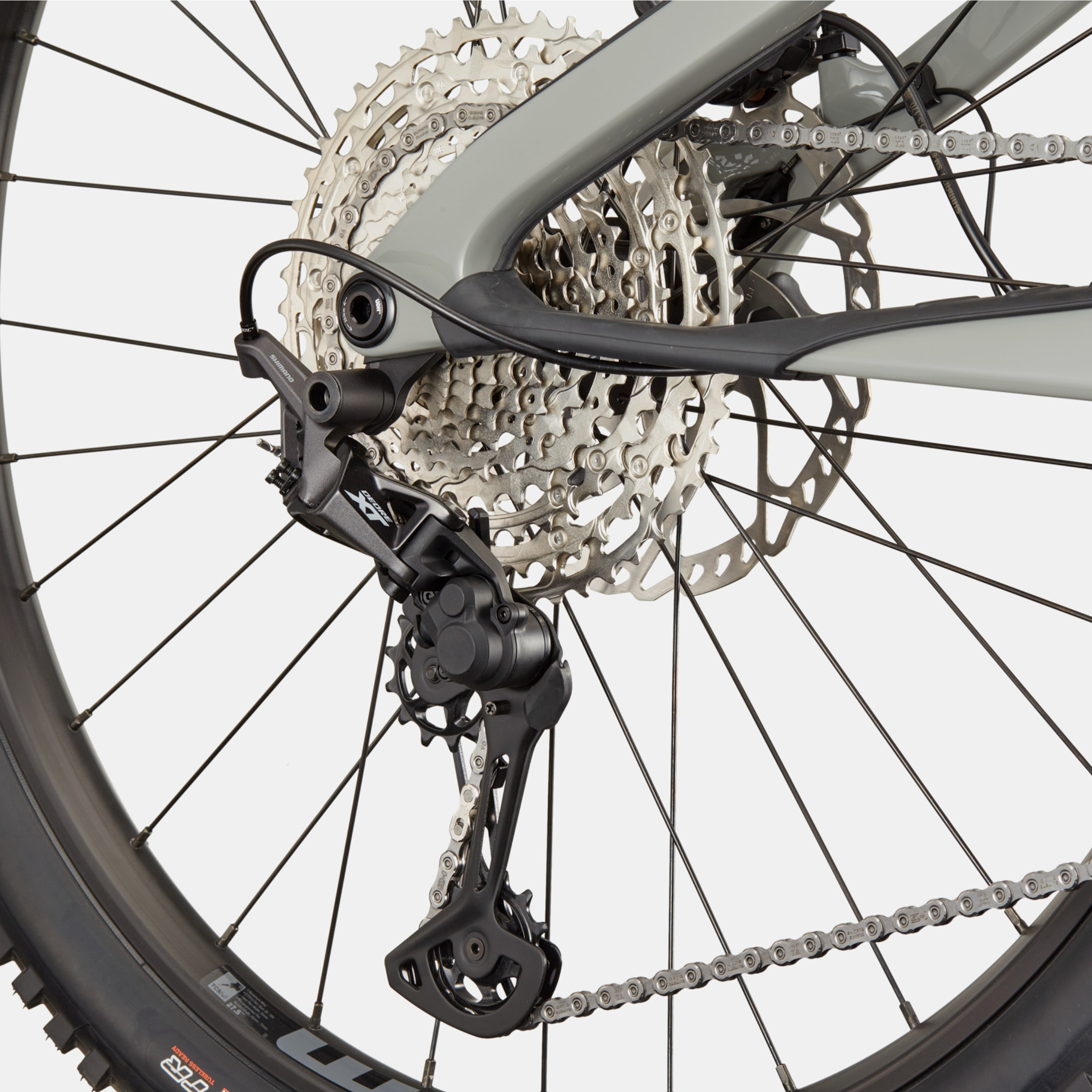

• Rear Derailleur

  Shimano XT
• Shifters

  Shimano Deore M6100, 12-speed
• Chain

  Shimano Deore 6100, 12-speed
• Crank

  e*thirteen e*spec Plus, 165mm, 34T
• Rear Cogs

  Shimano Deore 6100, 10-51, 12-speed

Brakes

• Brakes

  Shimano Deore 6120 4-piston hydraulic disc, 203mm RT66 rotors
• Brake Levers

  Shimano Deore hydraulic disc

Wheels

• Rims

  WTB KOM Trail i30, 30mm inner width, TCS tubeless ready
• Spokes

  DT Swiss Champion
• Tire Size

  2.5
• Wheel Size

  29
• Hubs

  (F) Formula DC-71132h, 15x110mm / (R) DT Swiss 370 Hybrid, 32h, 12x148mm
• Tires

  (F) Maxxis DHF, 29x2.5 ", 2C, EXO, tubeless ready / (R) Maxxis Dissector , 27.5x2.4", 2C, EXO, tubeless ready

Components

• Handlebar

  Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
• Stem

  Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
• Grips

  Cannondale TaperRidge
• Saddle

  Fizik Terra Ridon X5, 145mm, Wingflex, S-Alloy Mobius rail 7x7mm
• Seatpost

  Cannondale DownLow Dropper, internal routing, 31.6, 150mm (S), 170mm (M-XL)

Extra

• Extra 1

  Tubeless valves
