Details

• Platform

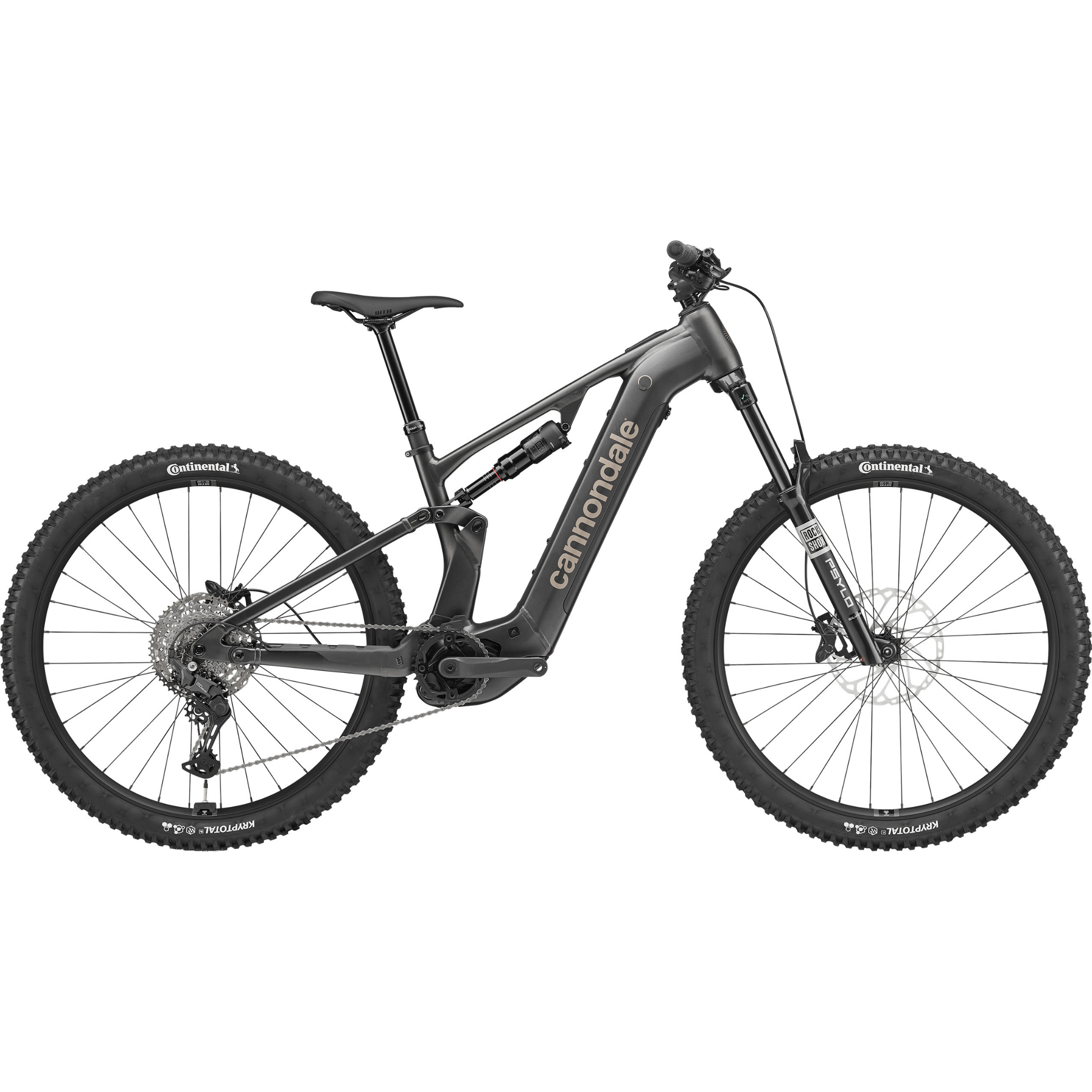

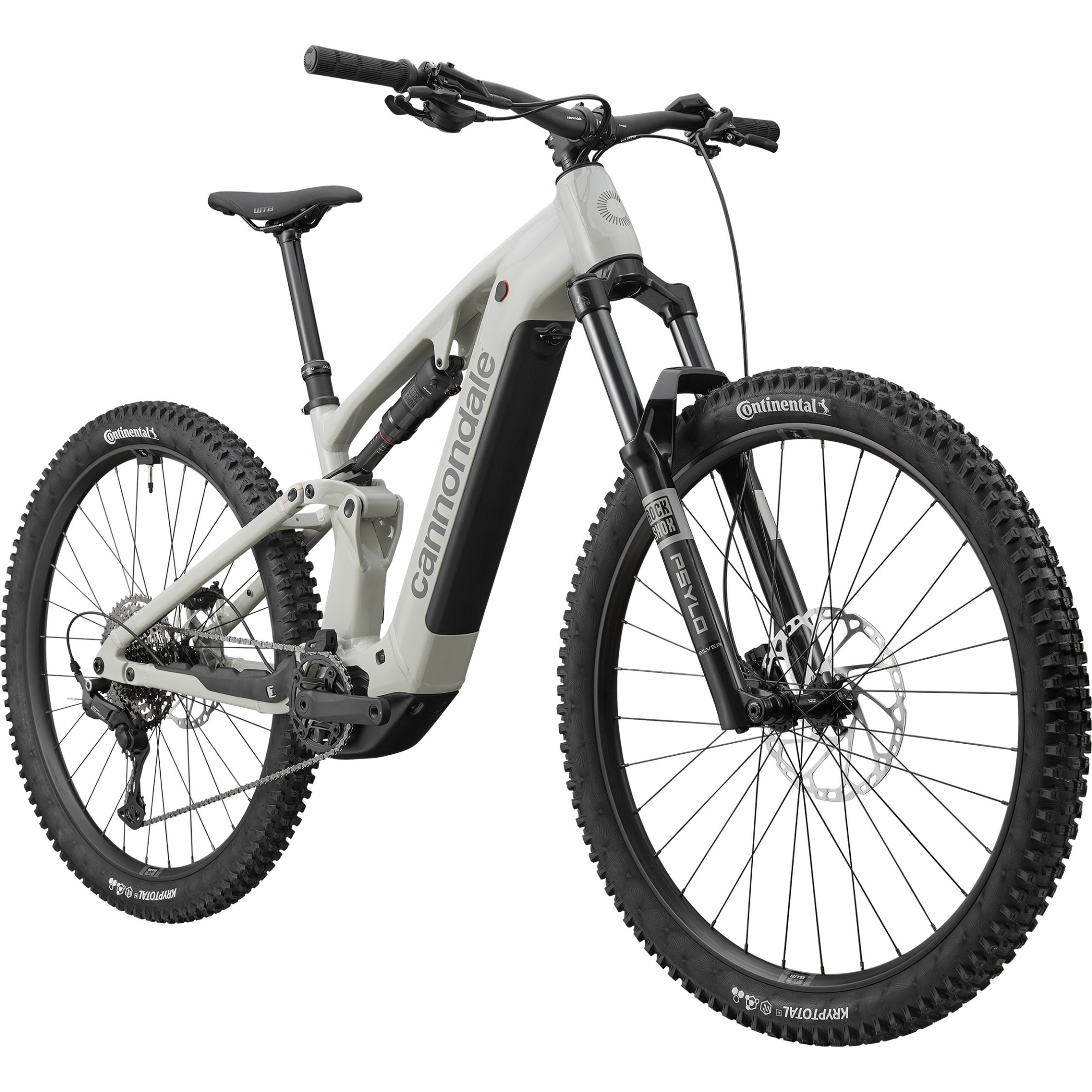

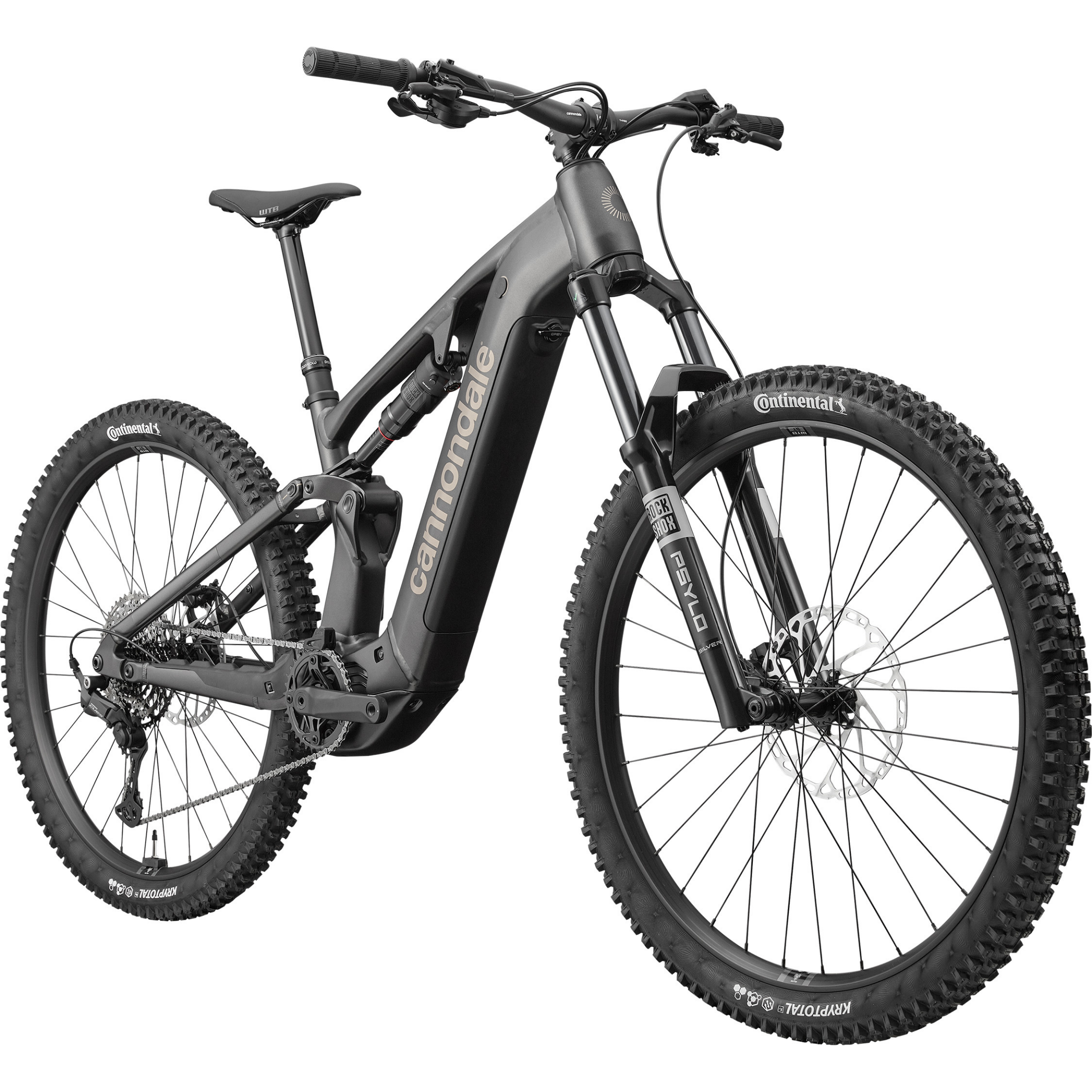

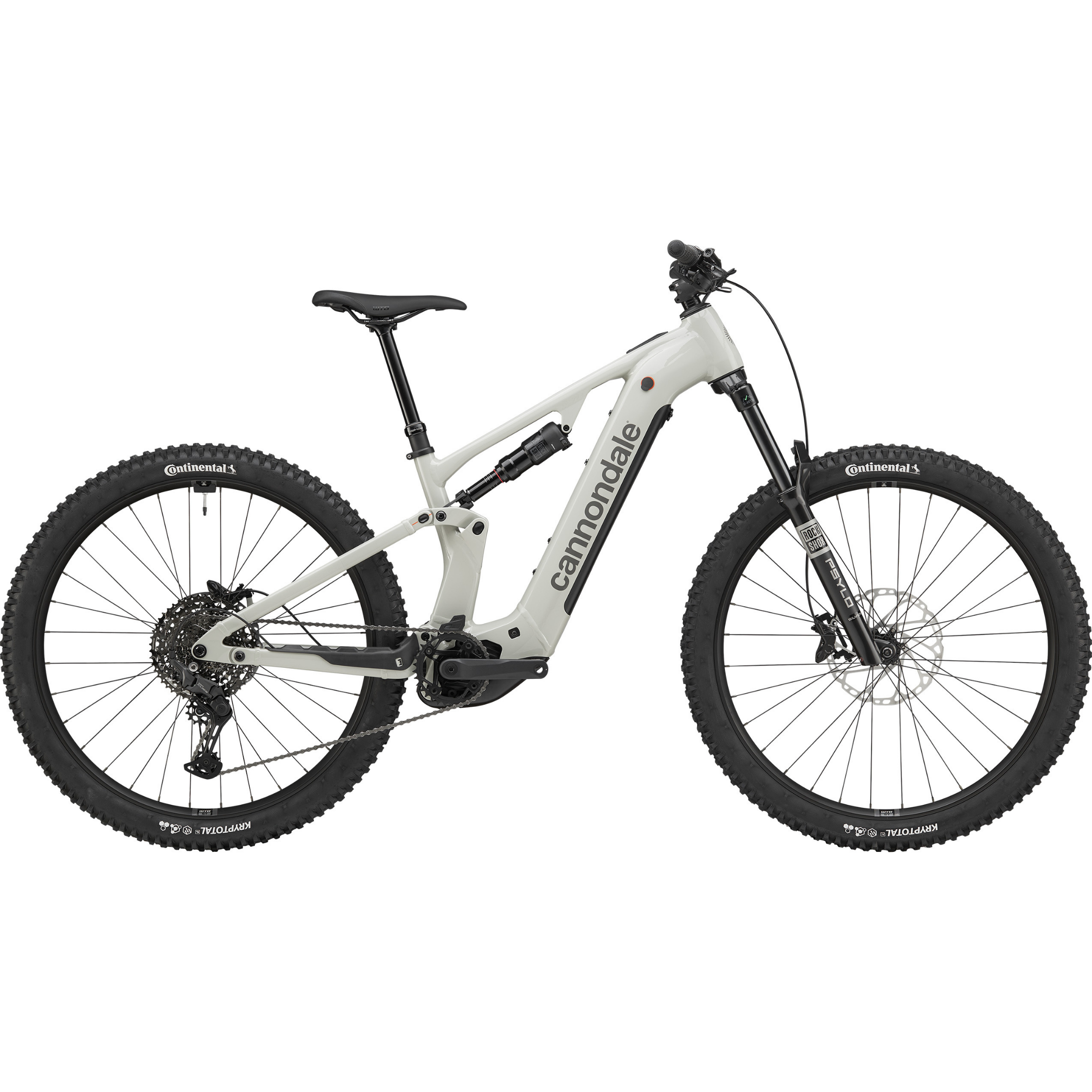

  Moterra Neo
• Model Name

  Moterra 3
• Model Code

  C65224U

Frameset

• Frame

  Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Cannondale Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts
• Fork

  RockShox Psylo Silver RC, 160mm, Motion Control, SoloAir, 15x110mm Maxle, tapered steerer, 44mm offset
• Headset

  Acros ICR, 1.5" to 1.8", sealed bearings
• Rear Shock

  RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm

E-System

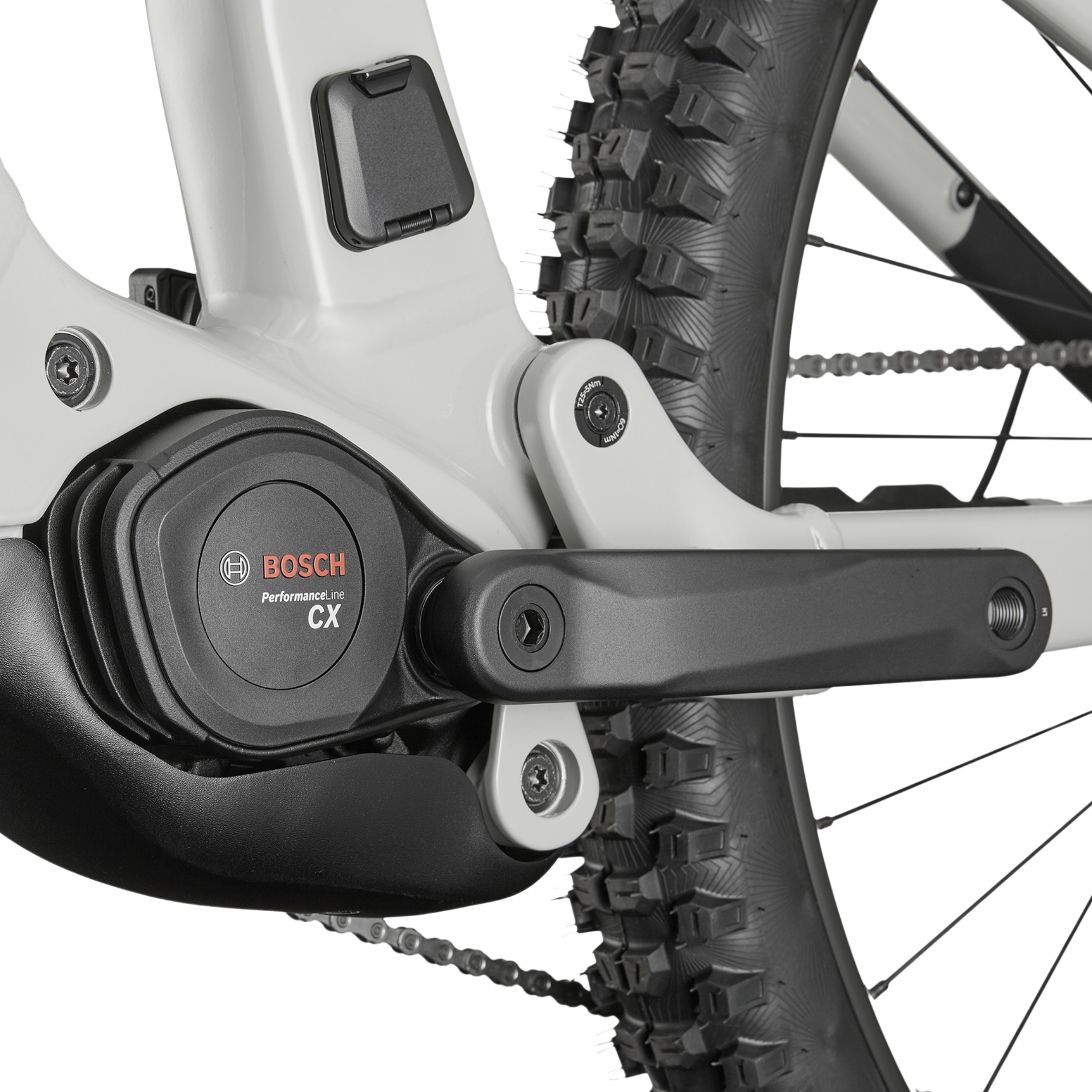

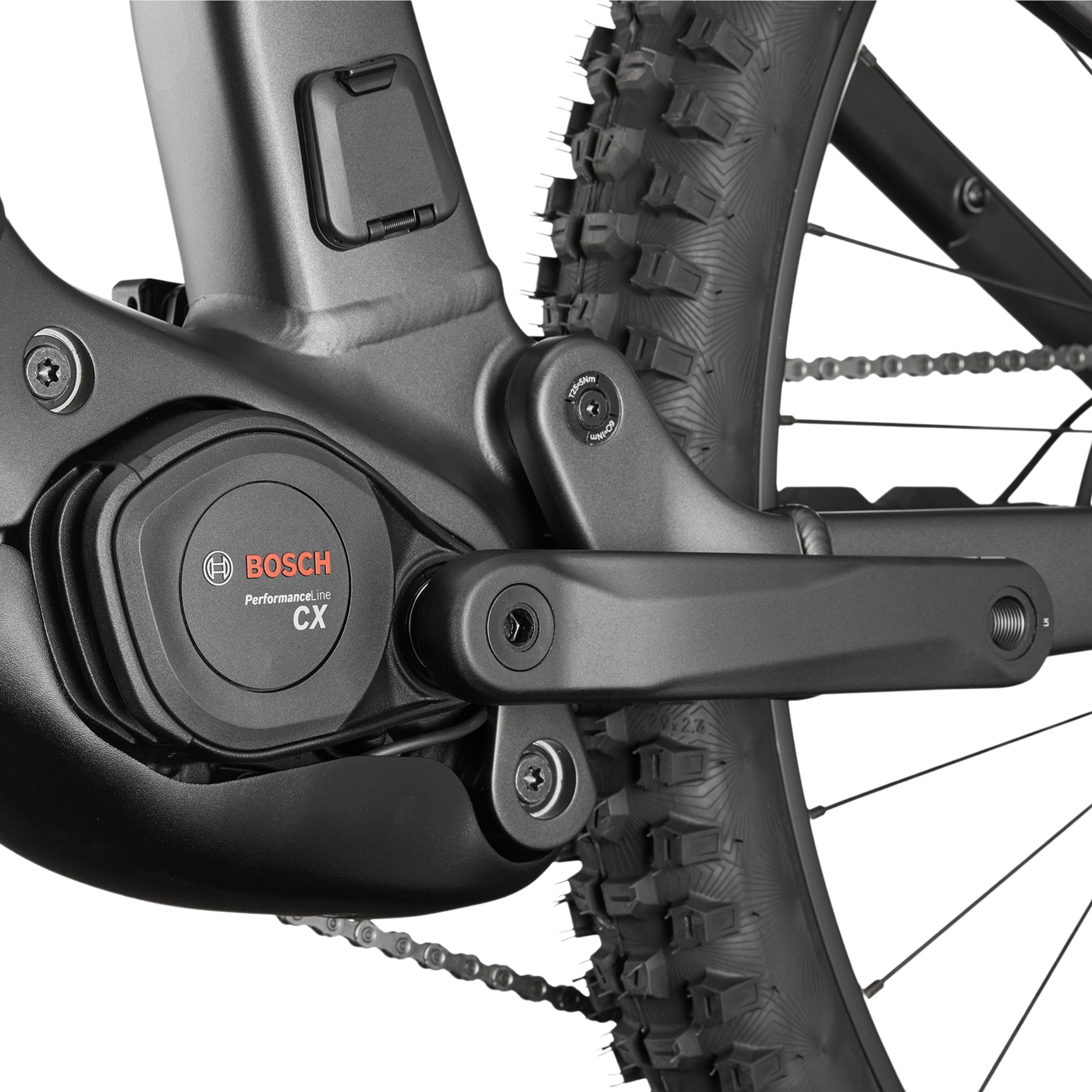

• Drive Unit

  Bosch Performance Line CX
• Battery

  Bosch PowerTube, 800Wh
• Charger

  Bosch 4A

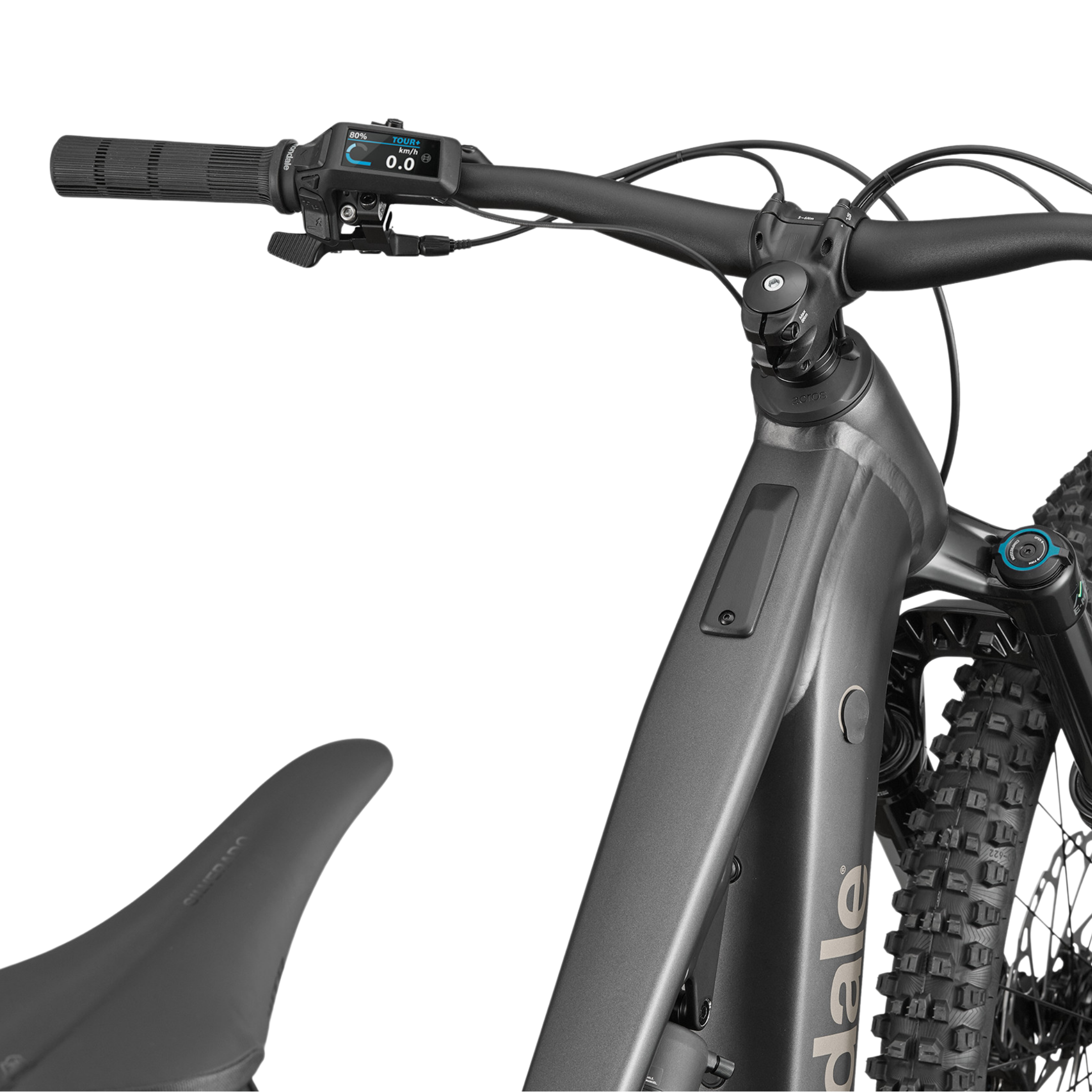

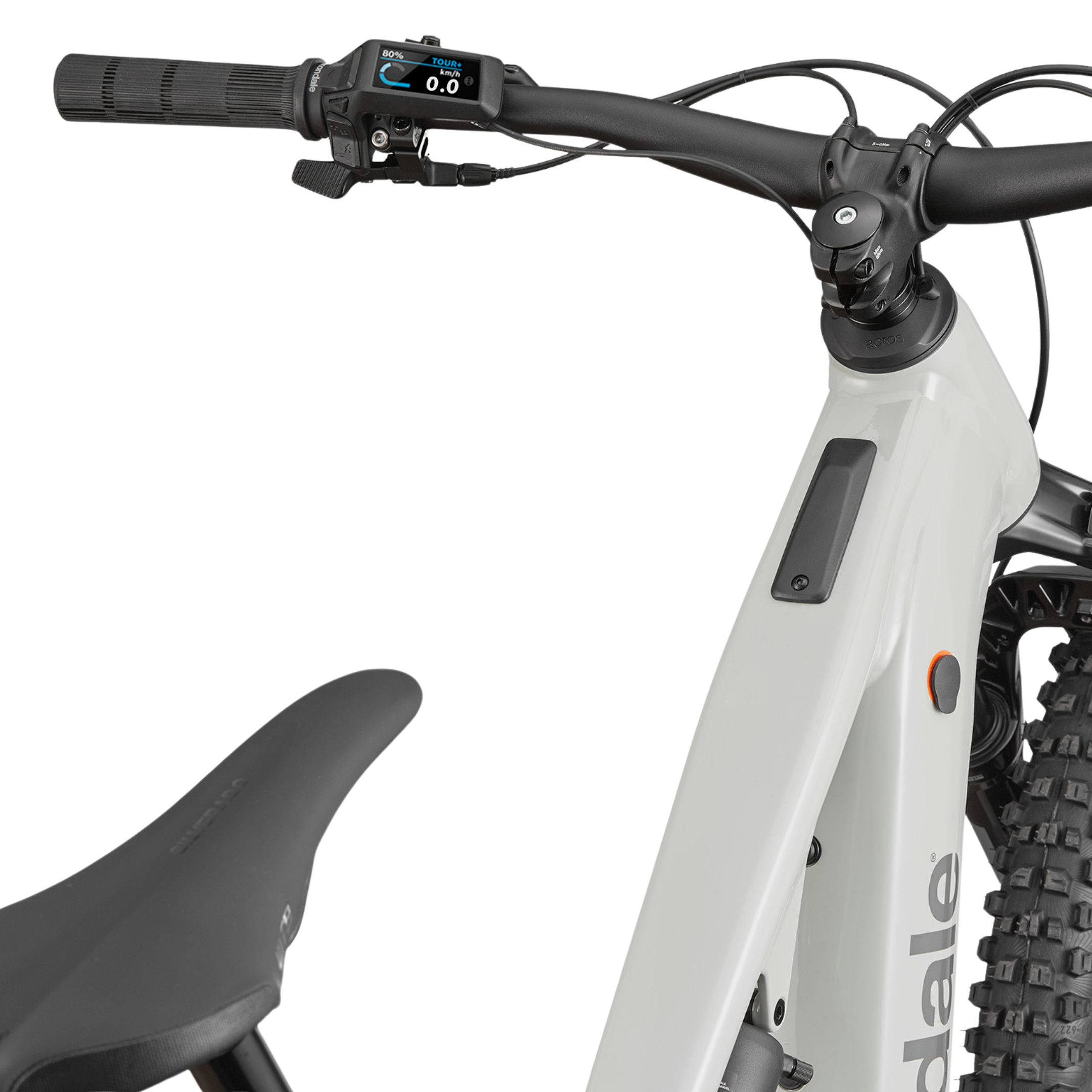

• Display

  Bosch Purion 200

Drivetrain

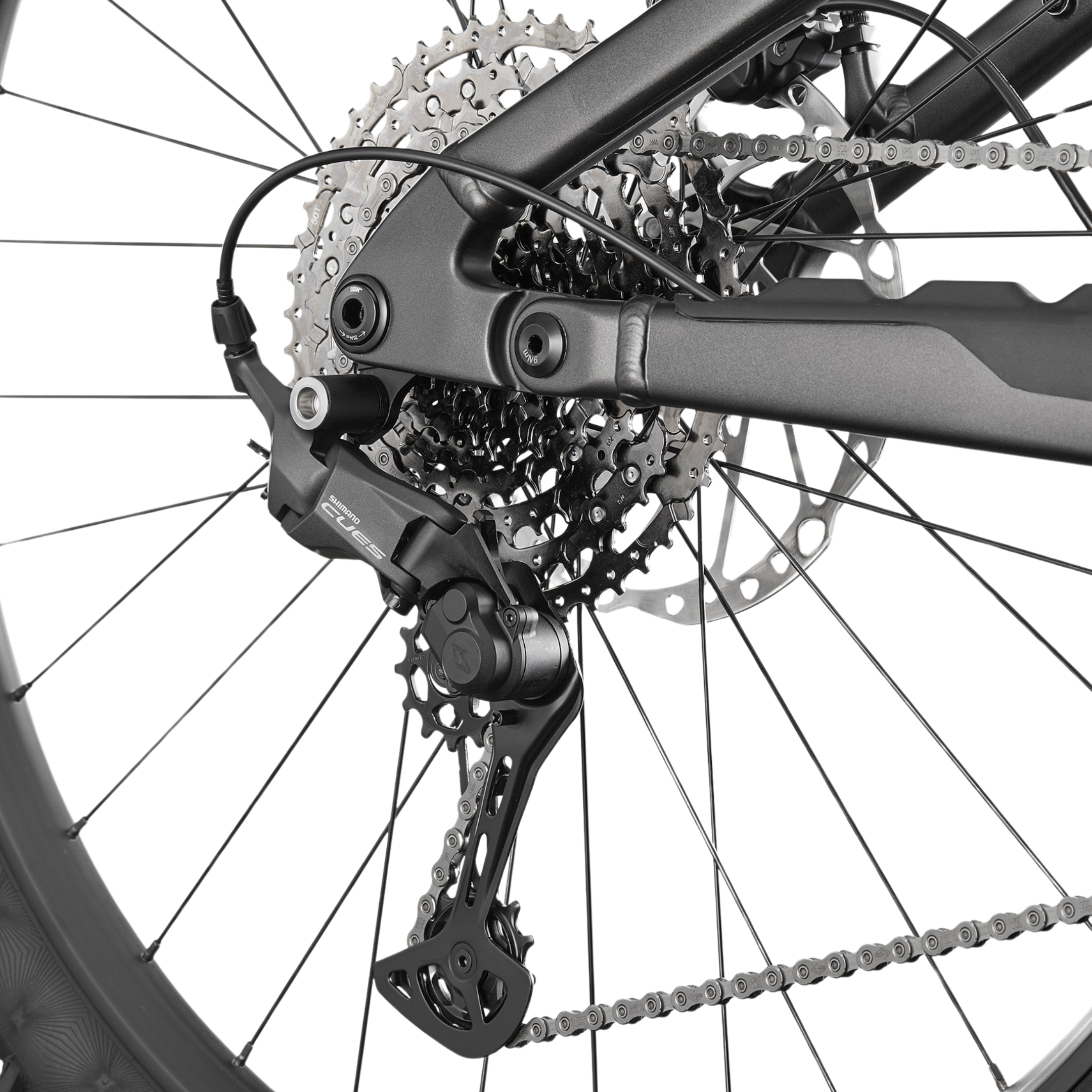

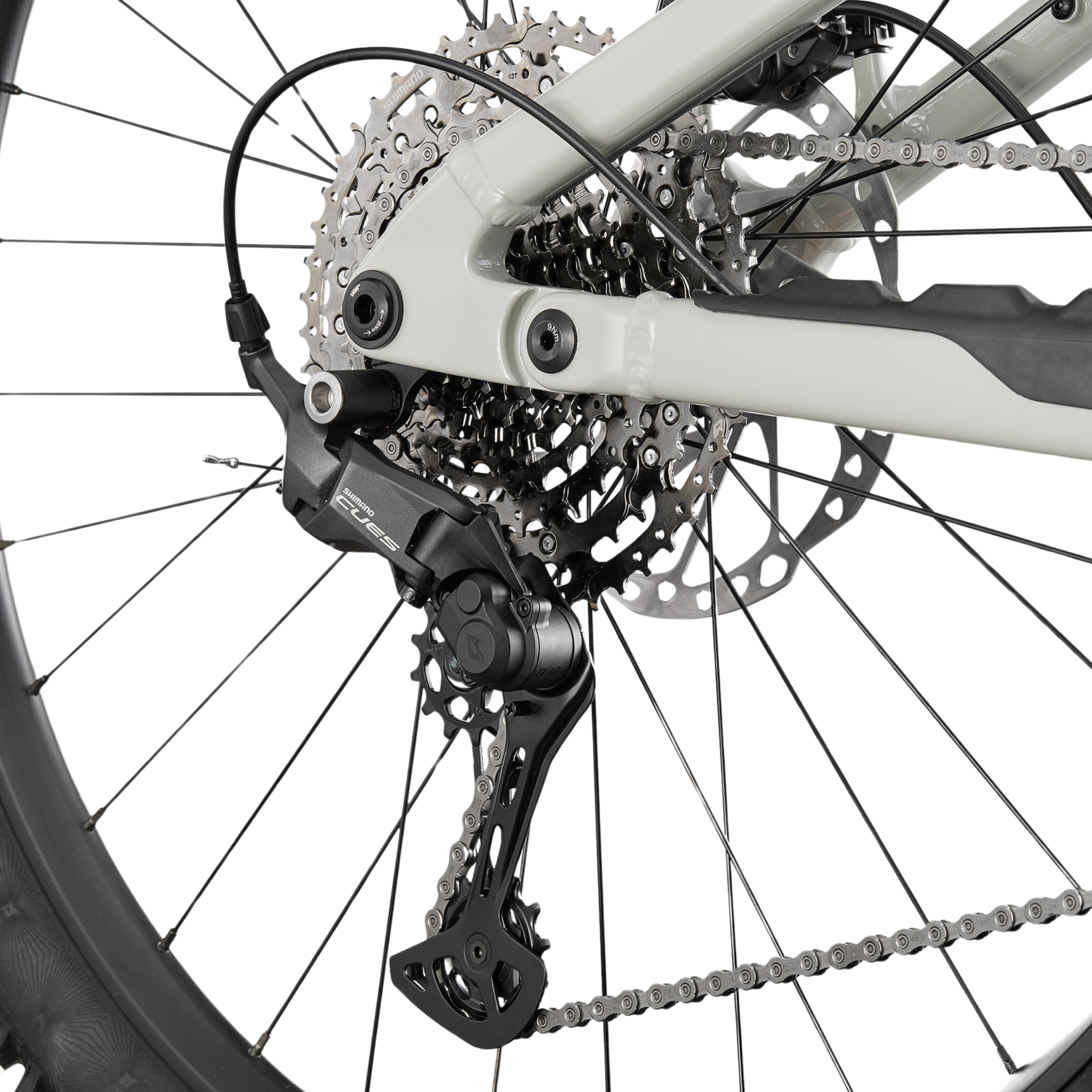

• Rear Derailleur

  Shimano CUES U6000, LinkGlide
• Shifters

  Shimano CUES U6000, 11-speed, LinkGlide
• Chain

  Shimano LG500, LinkGlide, 11-speed
• Crank

  FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
• Rear Cogs

  Shimano CUES LG400, LinkGlide, 11-50, 11-speed

Brakes

• Brakes

  Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors
• Brake Levers

  Shimano MT501 hydraulic disc

Wheels

• Rims

  WTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible
• Spokes

  DT Swiss Champion 2.0
• Tire Size

  2.4
• Wheel Size

  29
• Hubs

  (F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock
• Tires

  (F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable

Components

• Handlebar

  Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
• Stem

  Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
• Grips

  Cannondale TaperRidge
• Saddle

  WTB Silverado Medium
• Seatpost

  Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)

Extra

• Extra 1

  Bosch PowerMore range extender compatible
