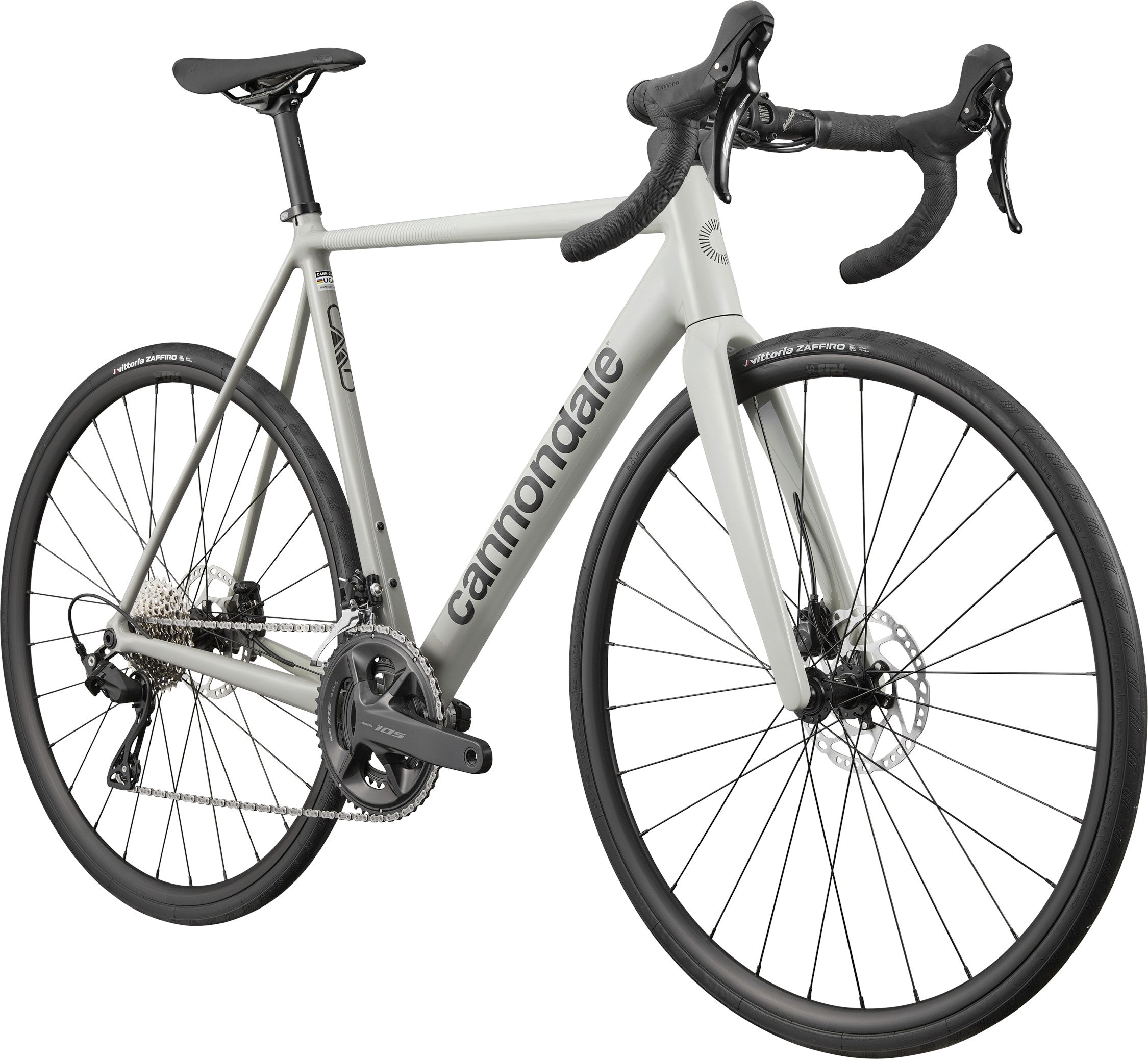

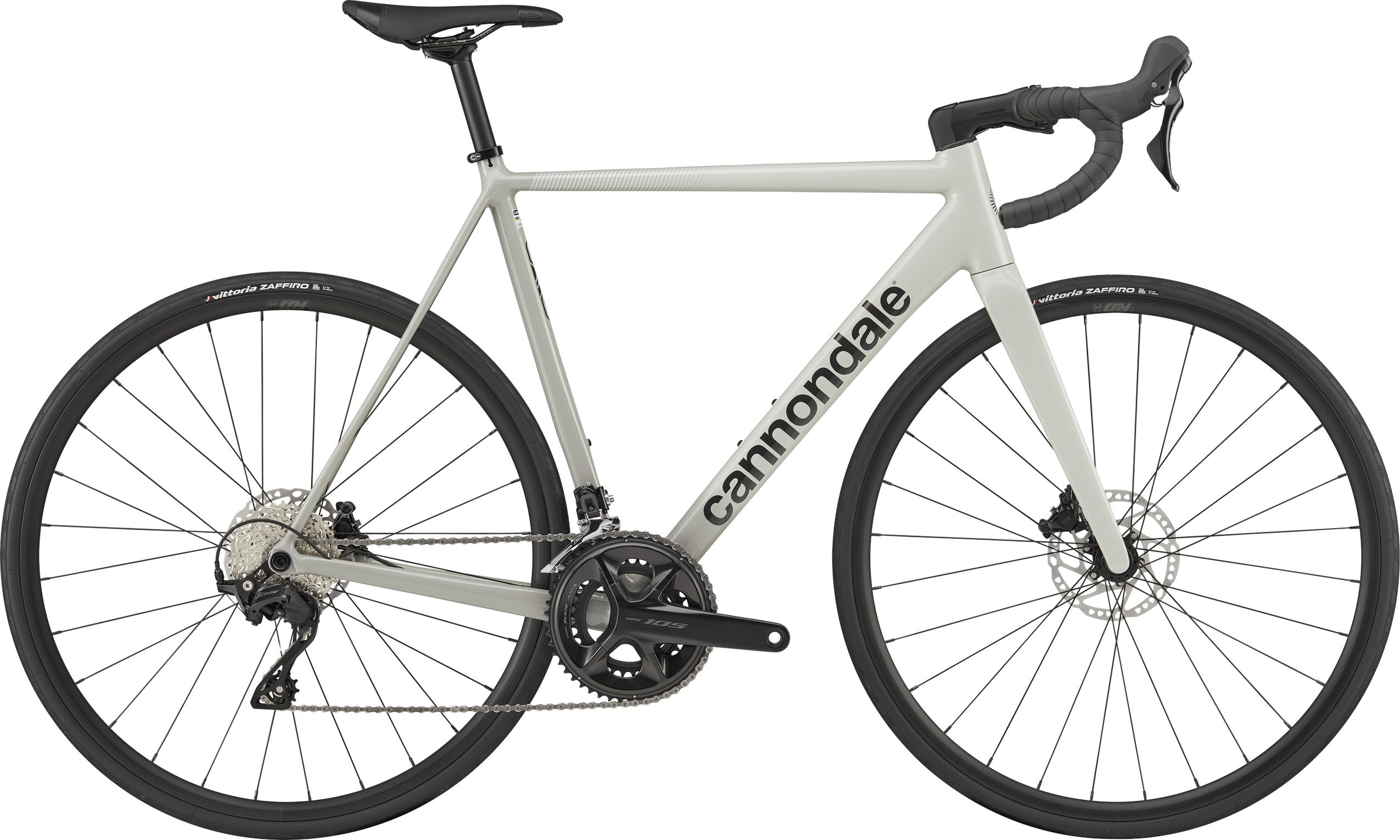

Cannondale CAAD14 3

R 49,995.00
Size
Color
Size Chart





Cannondale Bicycle Sizing Guide

Bike Size Rider Height Range
XSmall 148 - 155 cm
Small 154 - 165 cm
Medium 162 - 175 cm
Large 172 - 182 cm
XLarge 180 - 195 cm

Note: The provided sizing chart is a general guideline. Please consult with a professional bike fitter for the best fit.
×

Product Enquiry

Details

  • Platform
    CAAD14
  • Model Name
    CAAD14 3
  • Model Code
    C1302GU SMU

Frameset

  • Frame
    CAAD14, SmartForm C1 Premium Alloy, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, UDH
  • Fork
    CAAD14, full carbon, 1-1/8" to 1-1/2" Delta Steerer, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 55mm offset (44-54cm), 45mm offset (56-61cm)
  • Headset
    Integrated, 1-1/8" - 1.5"

Drivetrain

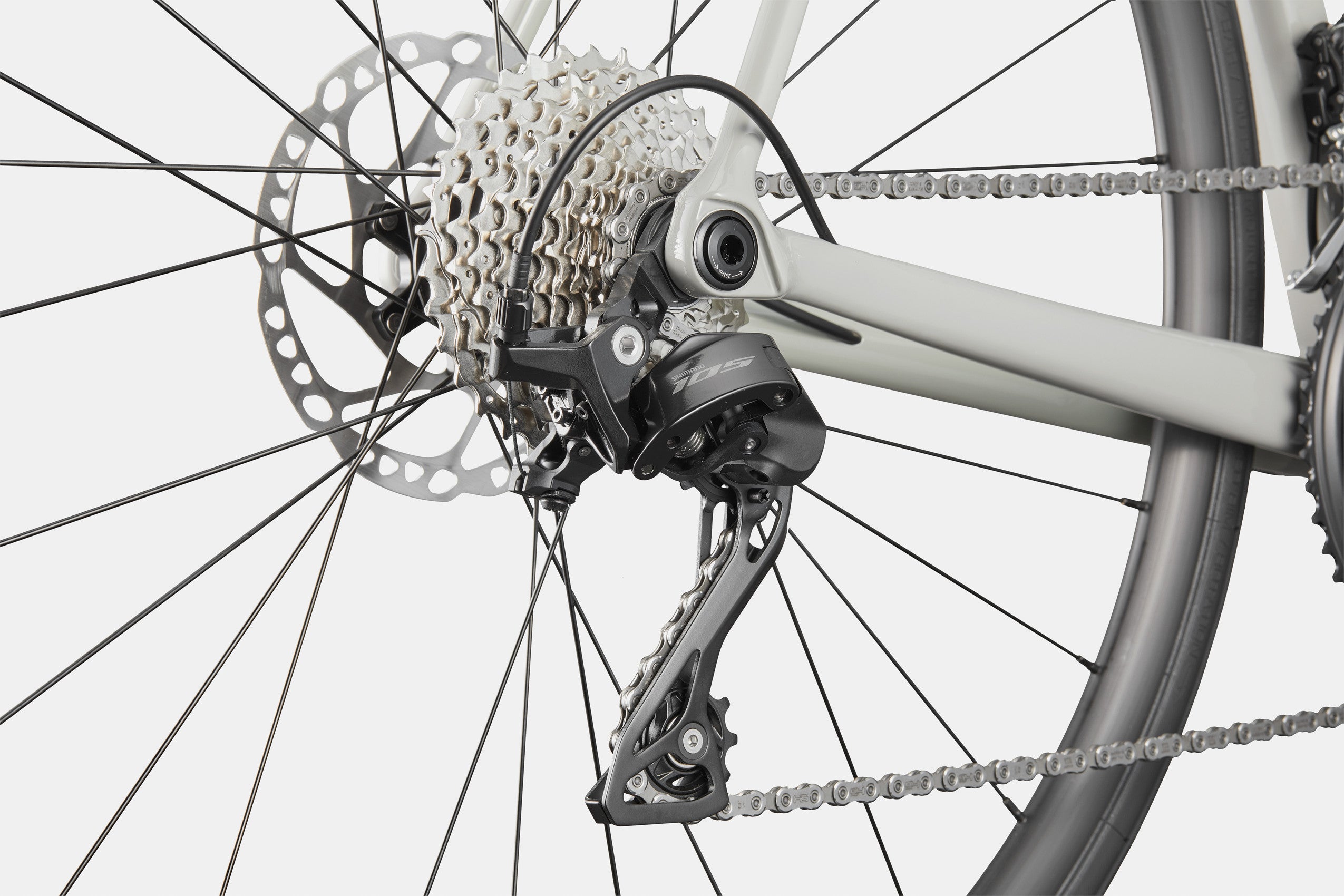

  • Rear Derailleur
    Shimano 105 7100, 12-speed
  • Front Derailleur
    Shimano 105 7100
  • Shifters
    Shimano 105 R7100, 2x12-speed
  • Chain
    Shimano 105 7100, 12-speed

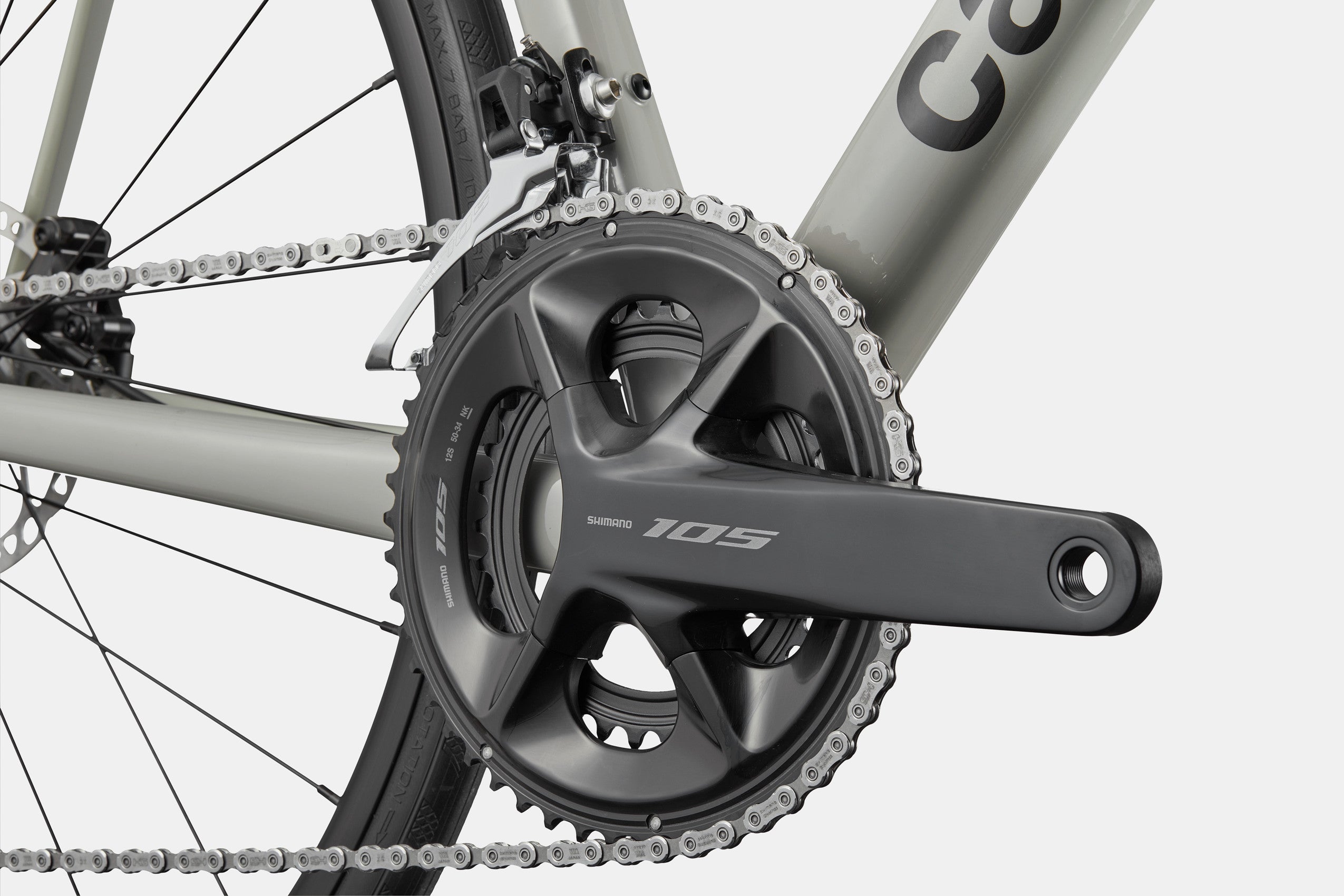

  • Crank
    Shimano 105 R7100, 50/34: 165mm (48-51cm), 170mm (54-56cm) 172.5mm (58-61cm)
  • Rear Cogs
    Shimano 105 R7100, 11-34, 12-speed
  • Bottom Bracket
    Shimano BB-RS500, BSA 68

Brakes

  • Brakes
    Shimano 105 R7170 hydraulic disc, 160/160mm RT70 rotors
  • Brake Levers
    Shimano 105 R7100 hydraulic disc

Wheels

  • Rims
    Cannondale RD 2.0 Disc, double wall w/ eyelet, 28h
  • Spokes
    Stainless Steel, 14g
  • Tire Size
    28
  • Wheel Size
    700c
  • Hubs
    Shimano TC500, centerlock, (F) 12x100mm, (R) 12x142mm
  • Tires
    Vittoria Zaffiro, 700x28c

Components

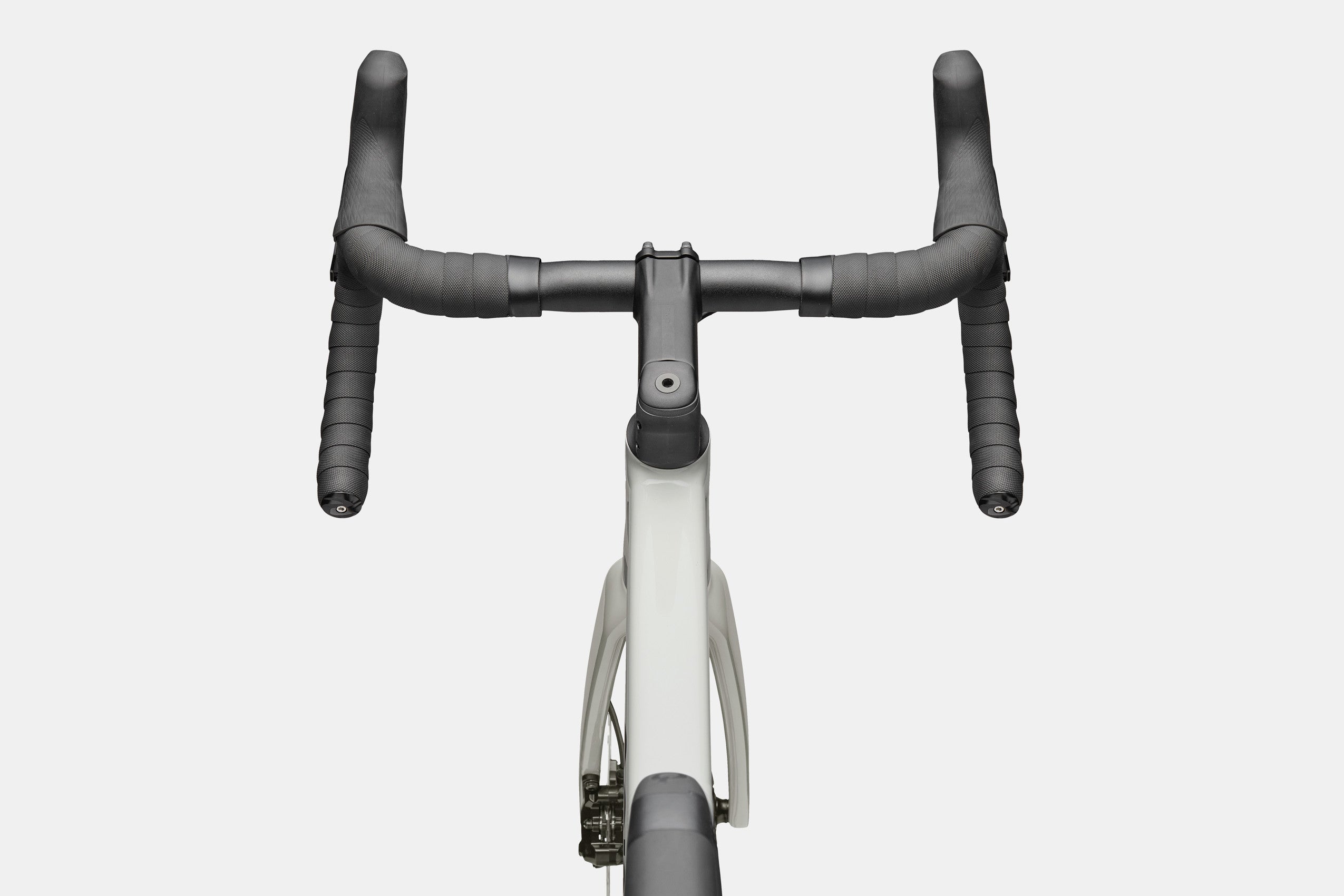

  • Handlebar
    Vision Trimax Compact: 400mm (48-56cm), 420mm (58-61cm)
  • Stem
    Cannondale C1 Conceal, Alloy, 31.8, -6°: 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm)
  • Grips
    Cannondale Bar Tape, 3.5mm
  • Saddle
    Prologo Nago RS STN
  • Seatpost
    Cannondale 3, 6061 Alloy, 27.2x350mm, 11mm offset

Extra

  • Extra 1
    Conceal Stem accessory/computer mount (Garmin/Wahoo)
